APDS9999 Proximity, Lux & Colour Sensor
· MPN: ADA6461

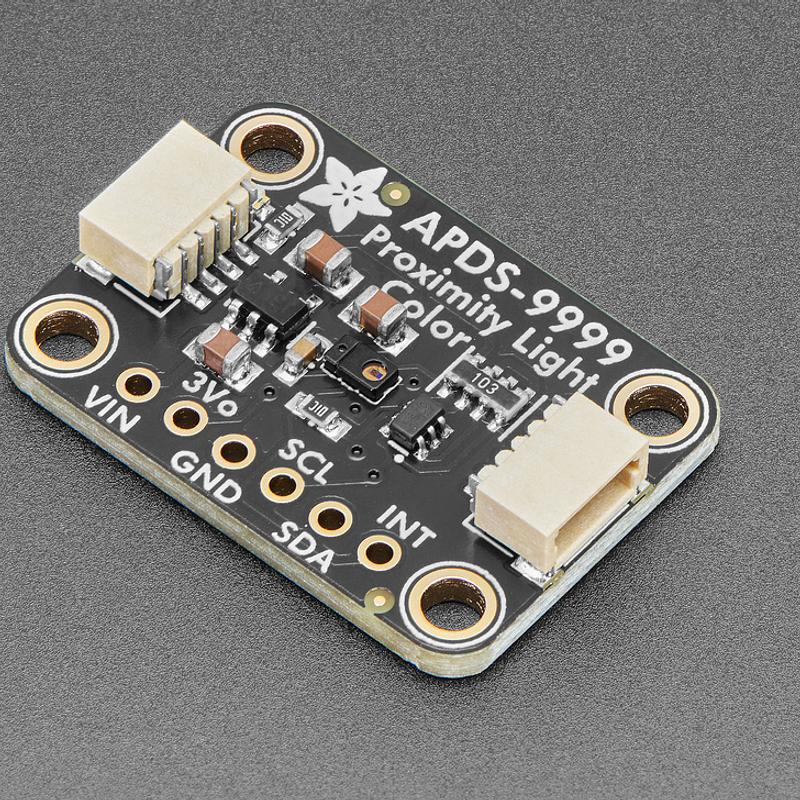

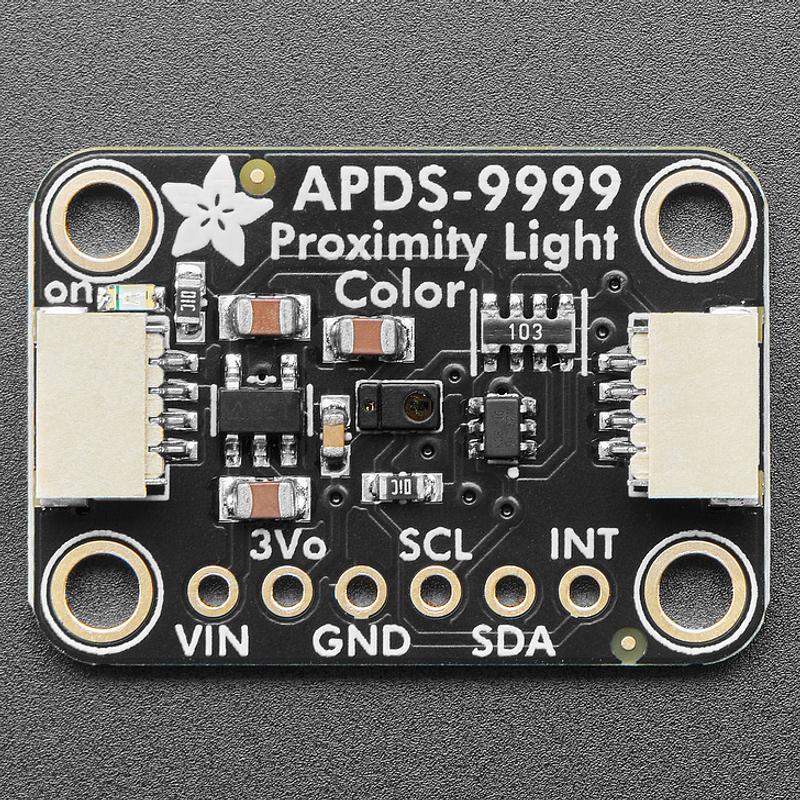

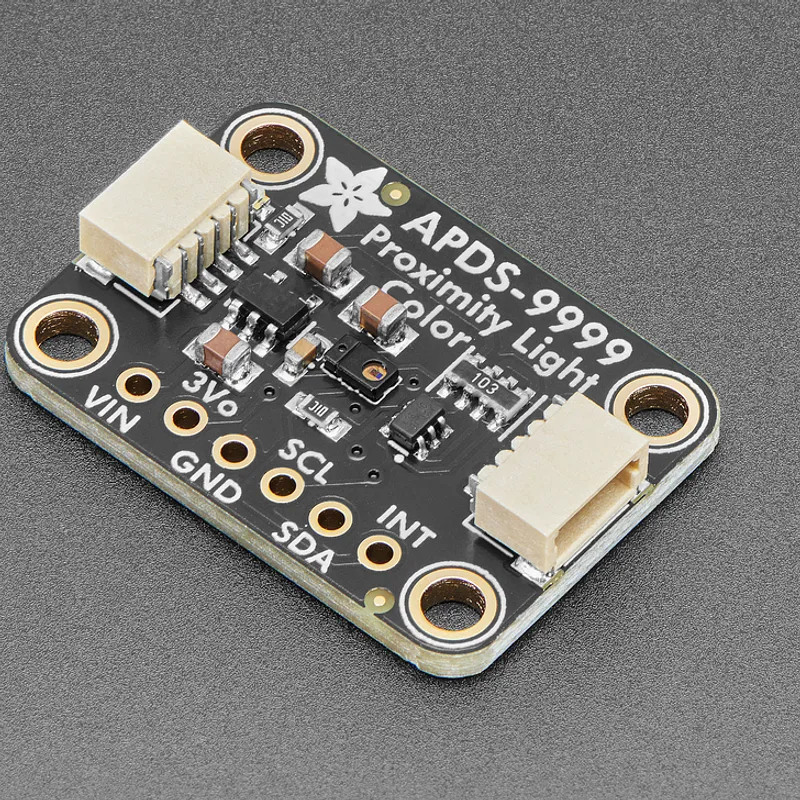

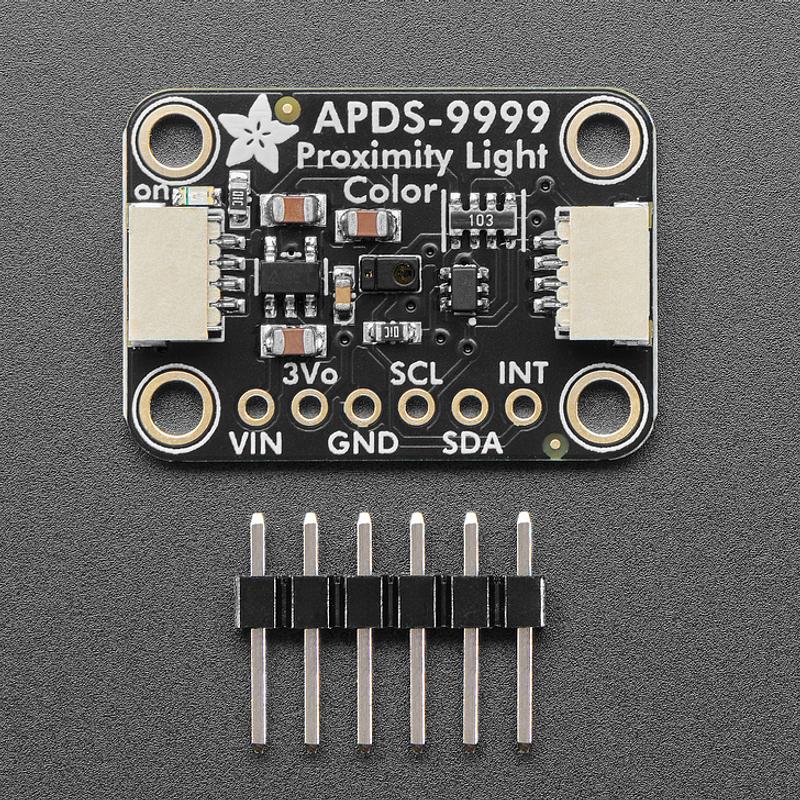

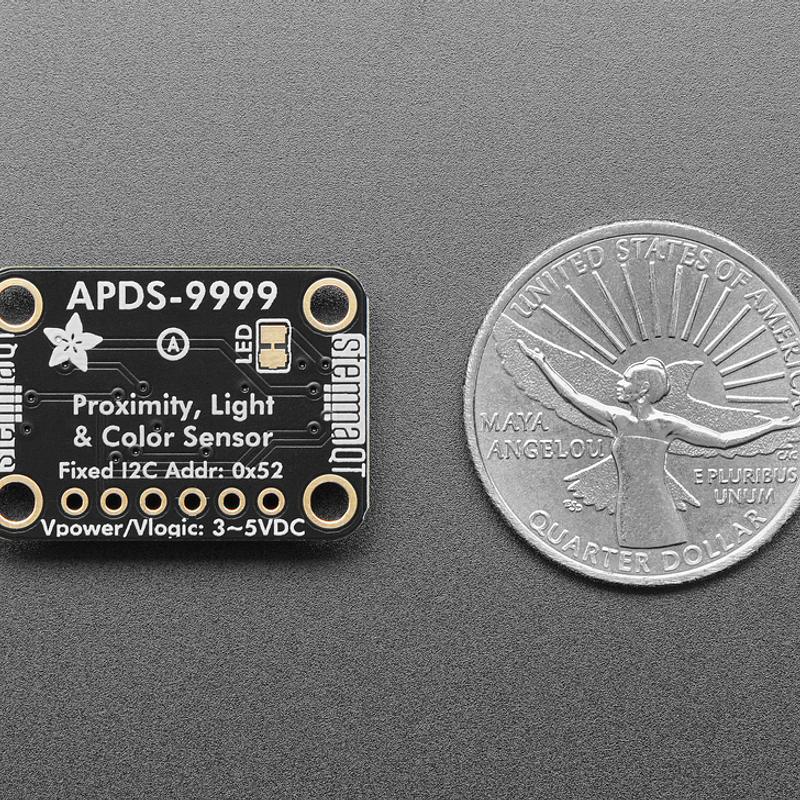

This compact breakout combines RGB colour sensing, true lux light measurement and infrared proximity detection in one I2C device. With library code running o...
This compact breakout combines RGB colour sensing, true lux light measurement and infrared proximity detection in one I2C device. With library code running on your microcontroller, it can read red, green, blue and clear light levels, as well as detect how much IR light is reflected from an object in front of the sensor.
The APDS9999 is considered by Broadcom to be the successor to the APDS-9960, but it does not include gesture sensing. It does add true lux sensing rather than only reporting raw light counts.
Proximity sensing is reflective IR rather than time-of-flight, so it does not provide exact distance measurements. It is best for short distances of 2 inches / 50mm or less, and can detect objects up to 150mm away. A configurable interrupt pin can trigger when a specified proximity threshold is crossed or when a colour sensor threshold is exceeded.

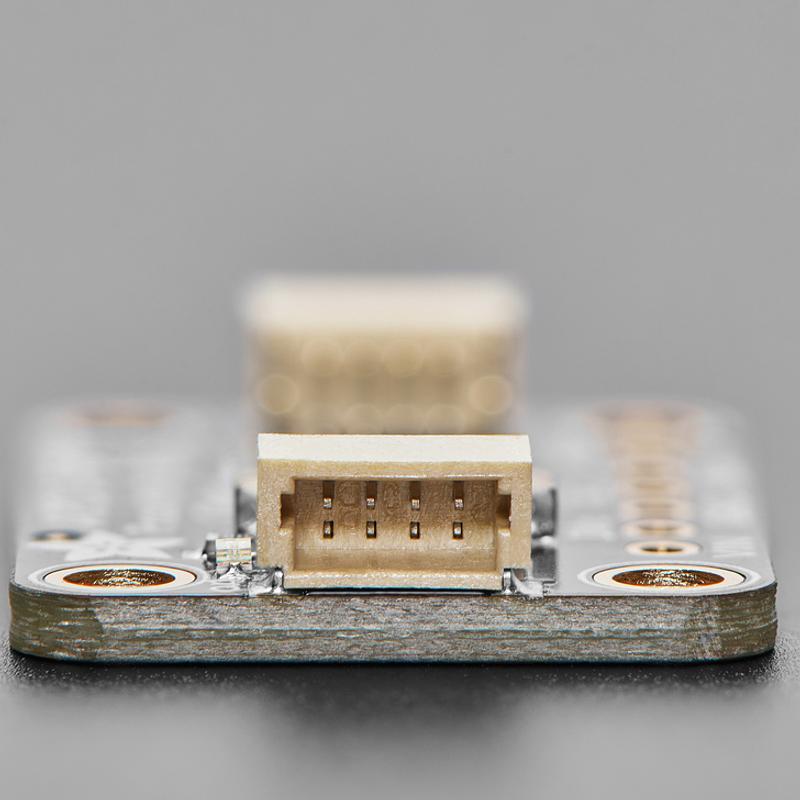

Adafruit has mounted the sensor on a PCB with a 3.3V regulator and level shifting for use with 3.3V or 5V microcontrollers. SparkFun qwiic-compatible STEMMA QT connectors are included for solder-free I2C wiring with a suitable QT cable, and an Arduino IDE guide and software library are available to get started with just a few lines of code. QT cable is not included.
Specifications:
- APDS-9999 specifications: APDS-9999 Specifications
- RGB and ambient light sensing: RGB and ambient light sensing (RGB and ALS)
- Correlated colour temperature: Accuracy of correlated color temperature (CCT)
- Colour channels: Individual channels for red, green, blue, and infrared
- Green channel: Approximates human eye response with green channel
- Optical coating technology: Uses optical coating technology to emulate human eye spectral response
- Light source conditions: Works well under different light source conditions
- Low-light sensitivity: Low-light sensitivity; operates behind darkened glass
- Light flicker immunity: 50 Hz/60 Hz light flicker immunity
- Fluorescent light flicker immunity: Fluorescent light flicker immunity
- ALS interrupt function: Programmable interrupt function with upper, lower thresholds and persists function
- ALS integration time: Programmable ALS integration time
- ALS gain setting: Programmable ALS gain setting
- Proximity detection: Proximity detection (PS)
- VCSEL: 940-nm vertical cavity surface emitting laser (VCSEL)
- VCSEL drive current: Programmable VCSEL drive current
- Crosstalk: Cancellation of crosstalk
- Ambient light suppression: Ambient light suppression
- Proximity interrupt function: Programmable interrupt function with upper and lower thresholds and persists function
- Persists function: Programmable persists function
- Laser eye safety: IEC 60825-1 Class 1 Laser Eye Safety
- Power management: Power management
- Active current: Low active current
- Standby current: Low standby current
- I2C interface: I2C interface compatible
- I2C speed: Up to 400 kHz (I2C fast-mode)
- Interrupt pin: Dedicated interrupt pin
A handy choice for Arduino, microcontroller and computer projects that need ambient light, colour or close-range object detection over I2C.
