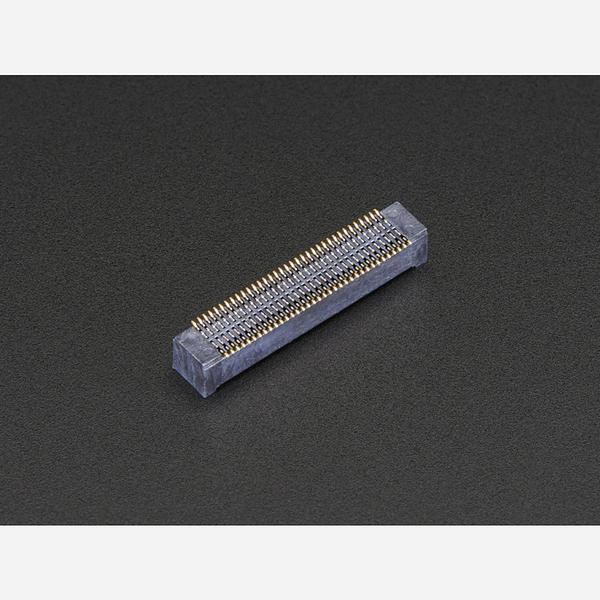

70-pin Hirose Receptacle Header for Intel Edison - 3mm Height [Hirose DF40HC(3.0)-70DS]
Discontinued
A 70-pin Hirose receptacle header (DF40HC(3.0)-70DS) designed for the Intel Edison Compute Module. This fine-pitch connector allows breakout boards to be added to the Edison, making it easier to design custom expansion boards and prototypes.
Once installed, the connector adds 3mm of height to the Edison board socket — enough to clear the metal can and potentially tuck thin components or chips underneath the Edison for a more compact PCB layout.
Key Features
- 70-Pin Receptacle – Hirose DF40HC(3.0)-70DS
- 3mm Stack Height – Clears the Edison's metal can
- Fine Pitch – Designed for Intel Edison Compute Module
- Rated for 30 Cycles – Connect/disconnect carefully
Warning: This connector is fine pitch and fragile. It is difficult to remove once attached if not soldered down. Pull directly perpendicular to the connector plane to avoid bending or damage. Rated for 30 connection cycles only.
Package Contents
- 1× 70-pin Hirose receptacle header
Note: Intel Edison Compute Module is not included.
