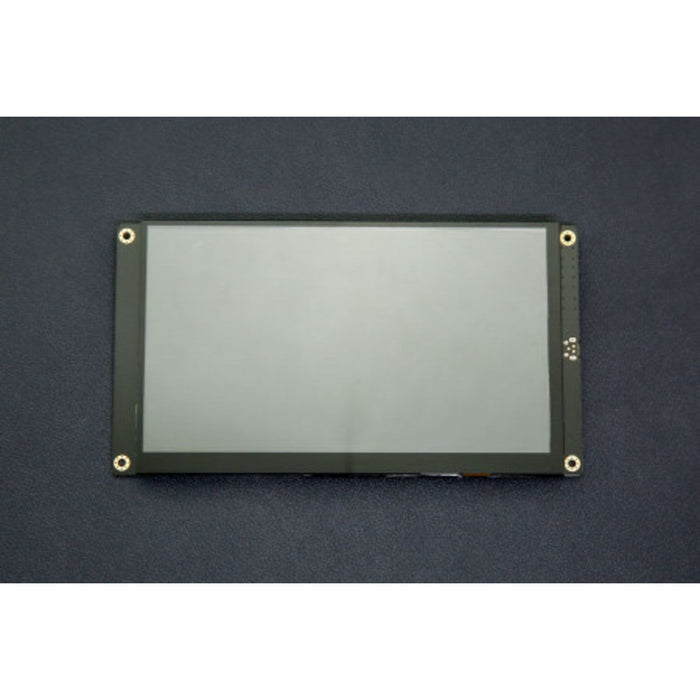

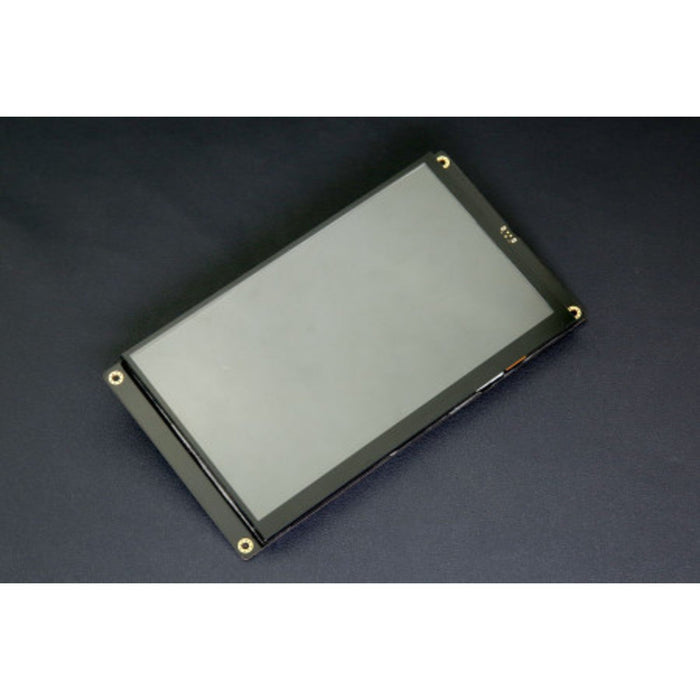

7'' HDMI Display with Capacitive Touchscreen
This 7" HDMI display with capacitive touchscreen supports up to 5 touch points and uses DFRobot's USB free-driver technology — simply plug in via USB for ins...
This 7" HDMI display with capacitive touchscreen supports up to 5 touch points and uses DFRobot's USB free-driver technology — simply plug in via USB for instant touch control with no driver installation required. It works like a keyboard or mouse on any compatible system.
The display supports Windows, Linux, and macOS, and is compatible with LattePanda, Raspberry Pi, and other HDMI devices. Arduino-compatible mounting holes on the back allow direct board attachment. Power is supplied via USB and HDMI — no external power supply needed. A rear potentiometer provides hardware backlight adjustment.
Key Features
- 1024×600 Resolution – Clear display via HDMI interface
- 5-Point Capacitive Touch – USB free-driver technology, plug and play
- Cross-Platform – Supports Windows, Linux, and macOS
- USB-Powered – No external power supply required

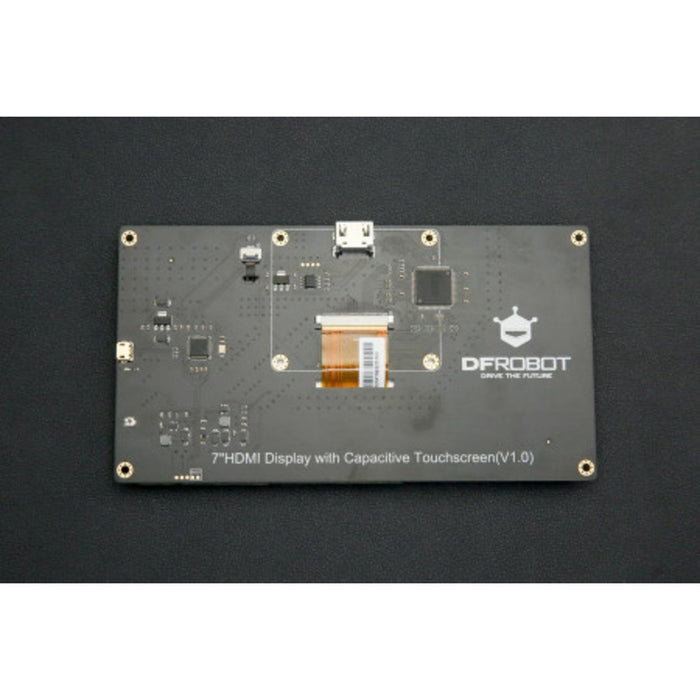

- Hardware Backlight Control – Potentiometer on the rear for brightness adjustment

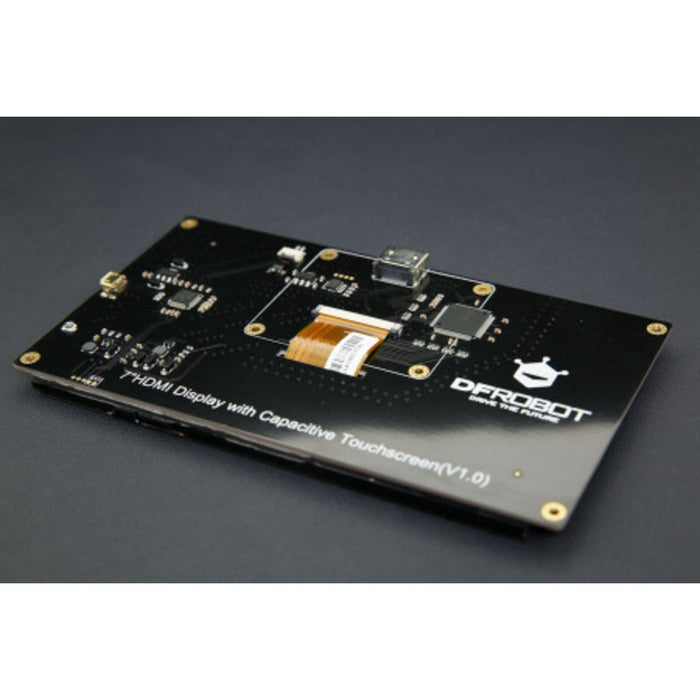

- Arduino Mounting Holes – Compatible screw holes for direct board attachment
Specifications
- Operating Voltage: 5V
- Operating Current: 160 mA (with HDMI)
- Max Current: 1200 mA
- Resolution: 1024×600
- Refresh Rate: 43 Hz (60 Hz not recommended — display may not fill screen)
- Video Interface: HDMI
- Dimensions: 183 × 100 mm
- Mounting Hole Size: 3.1 × 6 mm
- Weight: 328 g
Ideal For
- Raspberry Pi and LattePanda touchscreen projects
- PC touch input and kiosk displays
- Embedded HMI and control panels
- Arduino project displays with direct mounting
Package Contents
- 1× 7" HDMI Display with Capacitive Touchscreen
Jargon buster
Plain-language definitions for the technical terms used above.
- HDMI
- HDMI is a common digital video and audio connection used by computers, media players, and many displays. If a display kit has HDMI input, it is usually much easier to test with a single-board computer because it can act like a normal monitor.
- HMI
- HMI stands for Human-Machine Interface, meaning the screen, buttons, or controls a person uses to interact with a device. For this product, it suggests the display is intended for control panels, dashboards, robot faces, or other user-facing interfaces.
- potentiometer
- A variable resistor usually turned with a knob or shaft to create an adjustable electrical signal. It is often used for inputs such as volume, brightness or position, so it helps beginners learn how a microcontroller reads changing values.
