5V Red COB LED Strip Light with Heat Sink
· MPN: FIT0880
This compact COB LED strip provides bright red illumination from a 5V DC supply, making it handy for small lighting, display and battery-powered maker projec...
Get notified when back in stock

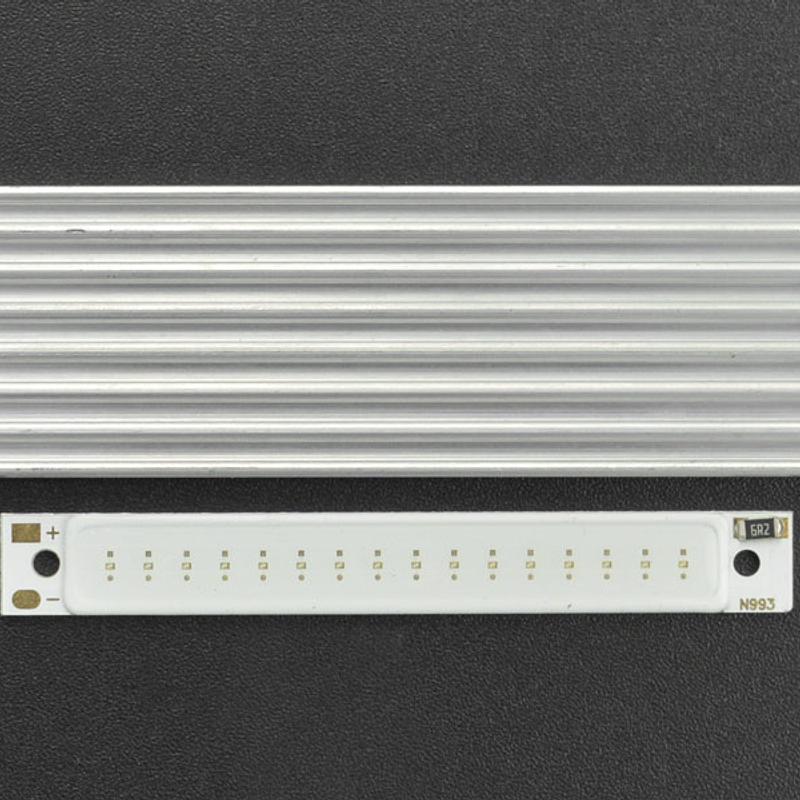

This compact COB LED strip provides bright red illumination from a 5V DC supply, making it handy for small lighting, display and battery-powered maker projects. It uses 16 LEDs under silicone encapsulation to help protect the chips and support a longer service life.
The strip is designed for uniform luminosity with high brightness and no visible shadowing, so it suits indoor decorative lighting such as wardrobes, stairs, wine cabinets, bookshelves and other tight spaces.
It is solderable and can be wired in series or parallel for different layouts. For long-term use, mount the LED strip to an aluminium plate or suitable heat sink to help prevent light decay or LED bead burnout, as it can get hot during operation.

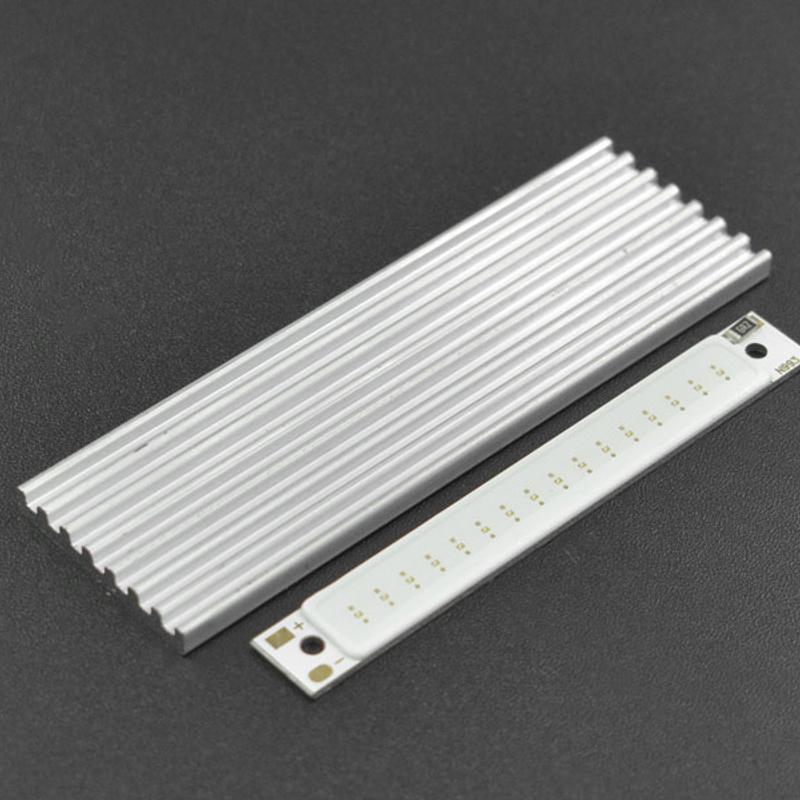

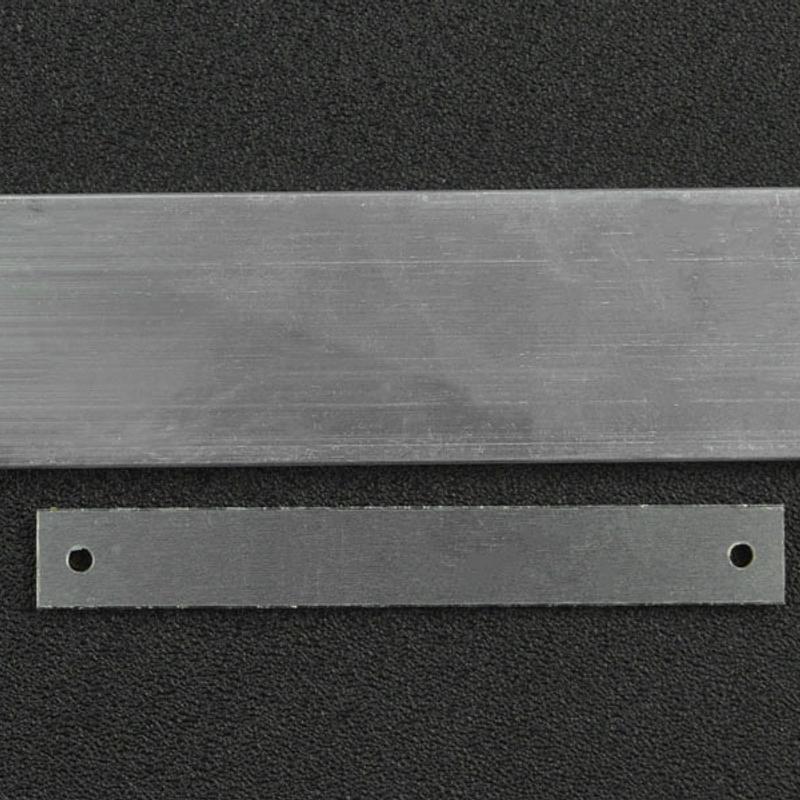

Included in the pack is one 5V COB LED Strip Light - Red and one heat sink.
Features:
- Power supply: 5V power supply
- Brightness: High brightness
- Output: No shadows
- Connection: Solderable
- Series wiring: Can be connected in series
- Parallel wiring: Can be connected in parallel
Specifications:
- Working Voltage: DC 5V
- Working Current: 600mA
- Power: 3W
- Brightness: 300LM
- Luminous Colour: red 620nm
- LED Strip Size: 60*8*1.7mm /2.36*0.31*0.07 inch
- Heat Sink Size: 70*20*3mm /2.76*0.79*0.12 inch
A neat choice for compact red accent lighting, lighting decoration and embedded illumination in small indoor projects.
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
