Little Bird
256GB SSD

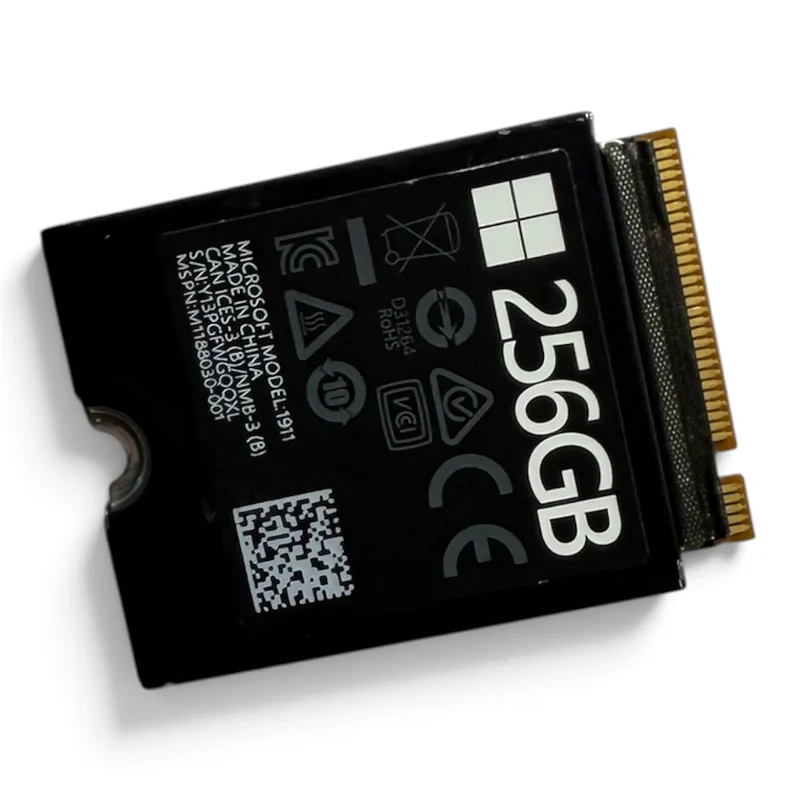

Store files on a compact, single-sided SSD with 256GB of capacity. Its M.2 2230 form factor measures 30 mm long, making it suited to small devices that suppo...
Get notified when back in stock
Store files on a compact, single-sided SSD with 256GB of capacity. Its M.2 2230 form factor measures 30 mm long, making it suited to small devices that support this size of drive.
The drive uses a PCIe Gen 3 x4 interface and supports NVMe 1.3. Its 3D NAND design stacks 96 layers of flash chips to fit the 30 mm board.
Corner Bond technology fortifies key components, while Power Shield helps protect data transfer integrity during an abnormal power outage. The drive also supports Transcend Scope Pro software.
Features:
- RoHS: Compliant with RoHS 2.0 standards
- NVMe: Compliant with NVM Express specification 1.3
- PCI Express: Compliant with PCI Express specification 3.1
- Single-sided design: Fits in small form factor devices
- Space-saving form factor: M.2 form factor (30mm), ideal for mobile computing devices
- Interface: PCIe Gen 3 x4 interface
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Corner Bond: Key components fortified by default with Corner Bond technology
- PCB gold finger: 30µ" PCB gold finger
- Power Shield (PS): Helps ensure data transfer integrity and minimise data corruption in the drive during an abnormal power outage
- Operating temperature: Promised operational reliability in an extended temperature range (from -20°C to 75°C)
- Software: Supports Transcend Scope Pro software
Specifications:
- Capacity: 256GB
- Dimensions: 30 mm x 22 mm x 2.38 mm
- Weight: 4 g (0.14 oz)
- M.2 Type: 2230-S3-B-M (Single-sided)
- Form Factor: M.2 2230
- Bus Interface: NVMe PCIe Gen3 x4
Jargon buster
Plain-language definitions for the technical terms used above.
- M.2
- M.2 is a compact edge-connector standard for plugging small modules - such as SSDs, wireless cards or microcontroller modules - into a host board without soldering. The same slot shape can carry different interfaces (for example PCIe, SATA or USB), so keying and the supported module type need to be checked.
- NVMe
- A high-speed storage standard commonly used by modern SSDs. NVMe support matters if you want faster storage for large AI models, video files or operating system images than a typical microSD card can provide.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- Shield
- An add-on board that plugs into a main controller board to give it extra features such as sensing, motor control or communication. Knowing a product supports shields helps you judge whether it can connect neatly into an existing maker-board setup.
