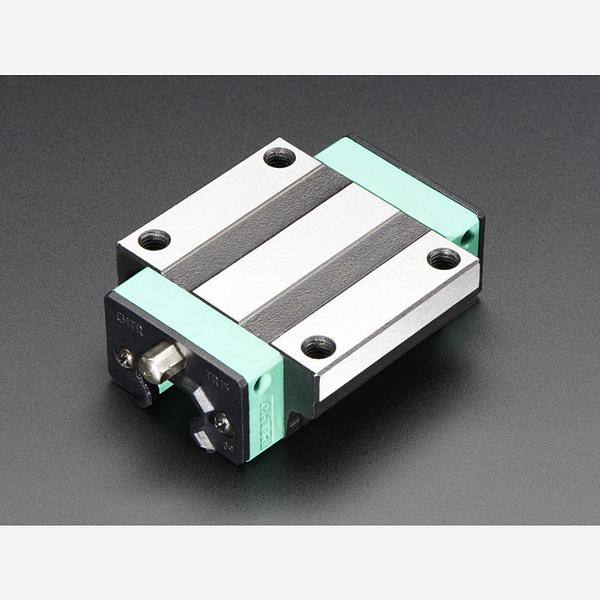

15mm Diameter Linear Bearing Pillow Block - Wider Version
A wider version of the 15 mm linear bearing pillow block, this sliding ball-bearing platform is designed for 15 mm T-shaped supported slide rails. The larger 60 × 47 mm platform provides more mounting area and stability compared to the standard 60 × 35 mm version, making it better suited for heavier or wider payloads.
Four M4 tapped mounting holes on the outer edges allow you to attach custom platforms, tool holders, or other components. The pillow block features a plastic interior with circulating ball bearings for smooth travel, and the T-shaped rail profile prevents detachment once installed. For loads up to approximately 2.3 kg (~5 lb), a single rail may be sufficient; for heavier loads, use two parallel rails.
Key Features
- Wider Platform – 60 × 47 mm (vs 60 × 35 mm on the standard version)
- M4 Mounting Holes – Four tapped holes on the outer edges
- T-Rail Captive Design – Cannot detach from the rail once installed
- Circulating Ball Bearings – Smooth, low-friction linear motion
Specifications
- Rail Compatibility – 15 mm diameter T-shaped supported slide rail
- Platform Size – 60 × 47 mm
- Mounting – 4× M4 tapped holes
Ideal For
- DIY CNC machines and 3D printers
- Robotics linear motion systems
- Applications requiring a wider mounting platform than the standard version
Package Contents
- 1× 15 mm linear bearing pillow block (wider version)
