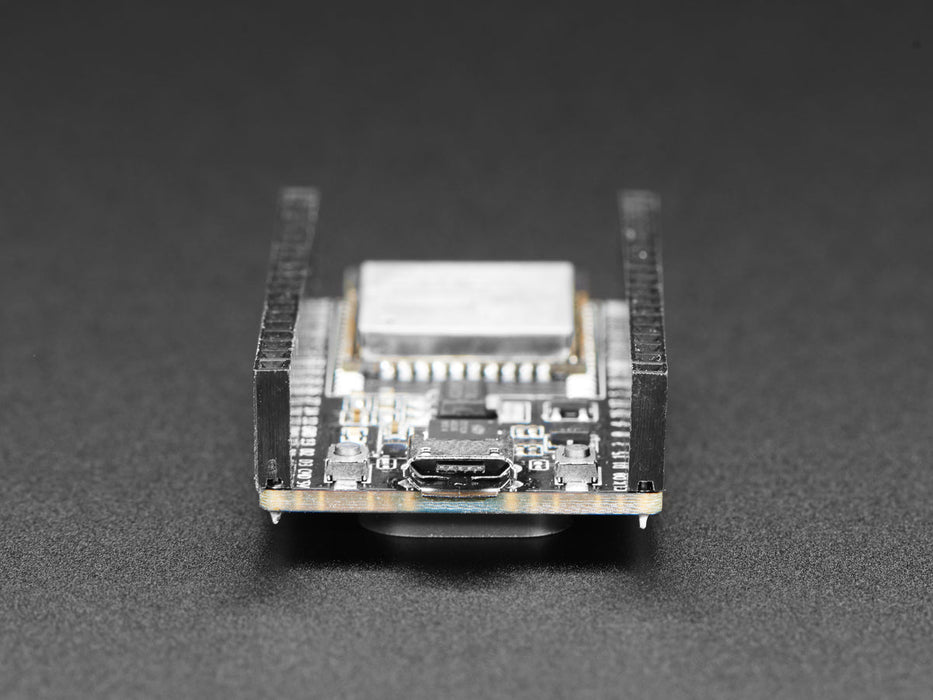

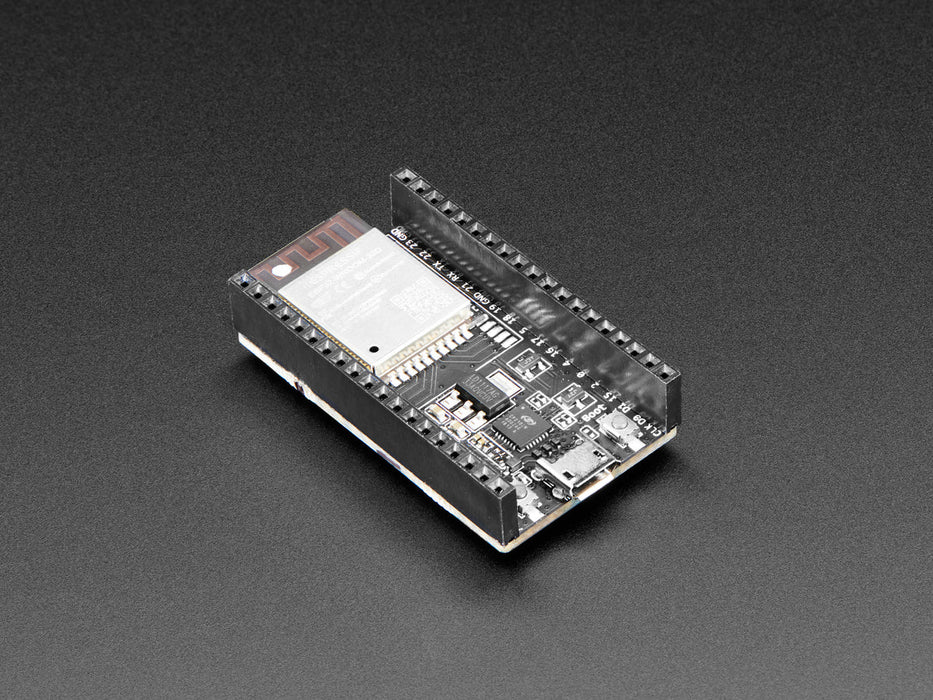

Espressif ESP32 Development Board - Developer Edition
We have ✅ 2 available of the AF-3269 in our Sydney warehouse. An extra 28 units available with a short lead time.

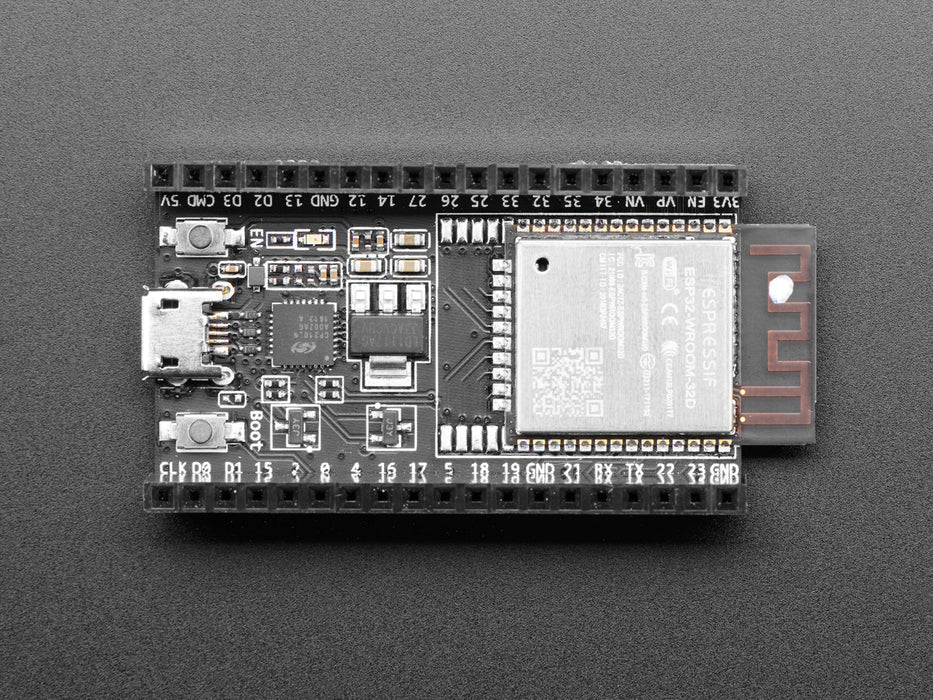

The Espressif ESP32 Development Board breaks out all ESP32 module pins to standard 2.54 mm (0.1 in) headers, with a CP2102 USB-to-serial adapter for programming, boot and reset buttons, and an onboard 3.3 V regulator. It supports development via the Arduino IDE, ESP-IDF (Espressif's official toolchain), and MicroPython.
Key Features
- ESP32 Dual-Core – Xtensa LX6 processor, up to 240 MHz
- 520 KB SRAM
- Wi-Fi – 802.11 b/g/n (2.4 GHz)
- Bluetooth – v4.2 BR/EDR and BLE
- GPIO – 34 programmable pins (some input-only) with ADC, DAC, SPI, I²C, I²S, UART
- CP2102 USB-Serial – USB-to-UART bridge for programming and debugging
- 3.3 V Regulator – Stable power from USB
- Boot & Reset Buttons
- Breadboard-Compatible – Pin headers span the full width of a standard breadboard
Tip: The board is exactly wide enough to cover both sides of a solderless breadboard with no spare rows. For breadboard prototyping, use two breadboards side by side.
