DIY Speaker Assembly Instructions

Guide for the DIY Speaker

1) Use 4 short screws to attach the PCB to the base board.

2) Use 2 long screws to attach the battery to the outside of the box

3) Press the Switch into the wood so that the switch is on the outside. This will be the top of the speaker box.

4) Connect the wires with JST connector to the speakers.

5) Screw the Speakers onto the front board using short screws.

6) Plug the JSTs into the PCB board.

7) Assemble the box making sure all the wires are on the inside.

8) Use the long screws to hold everything together.

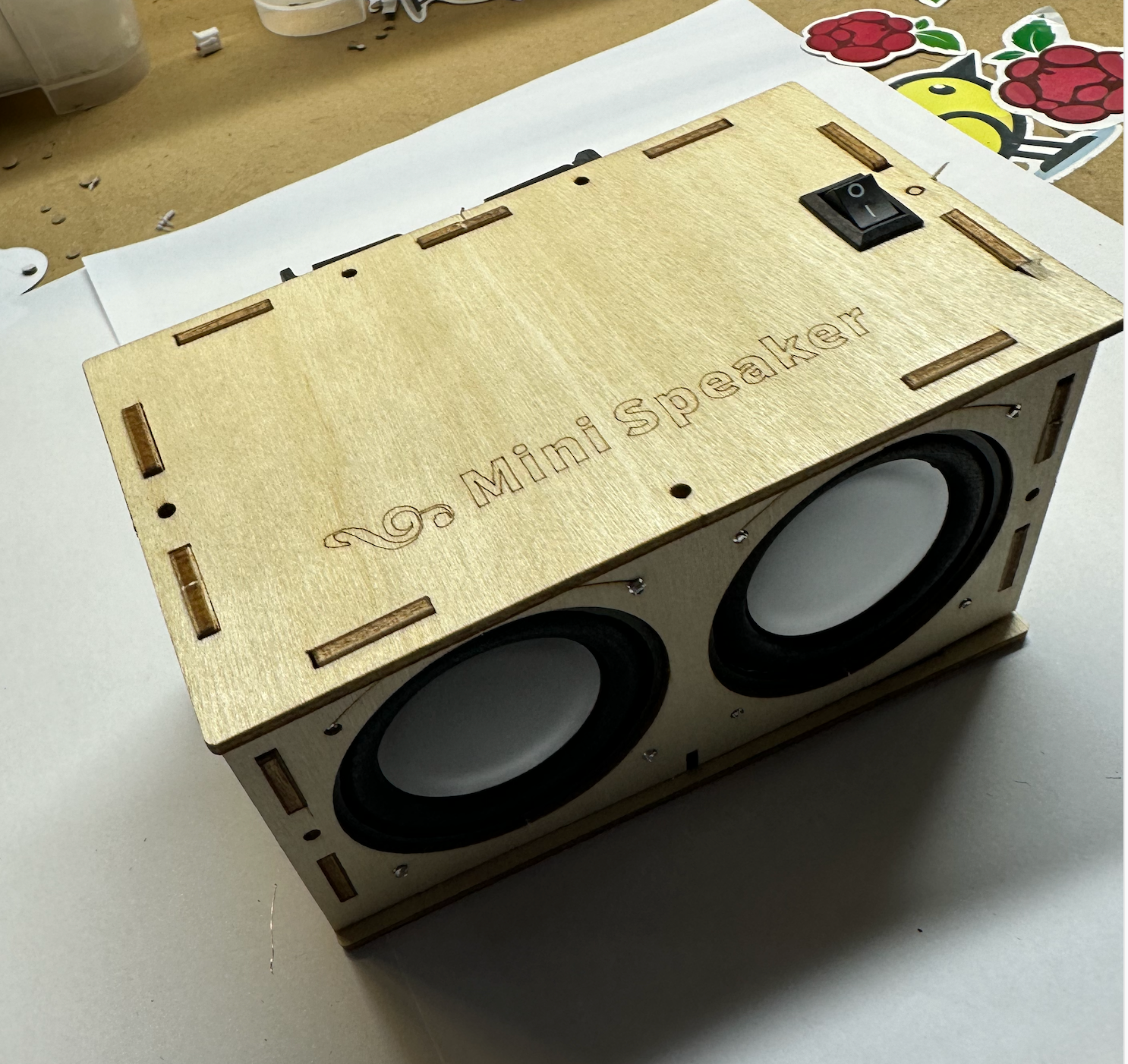

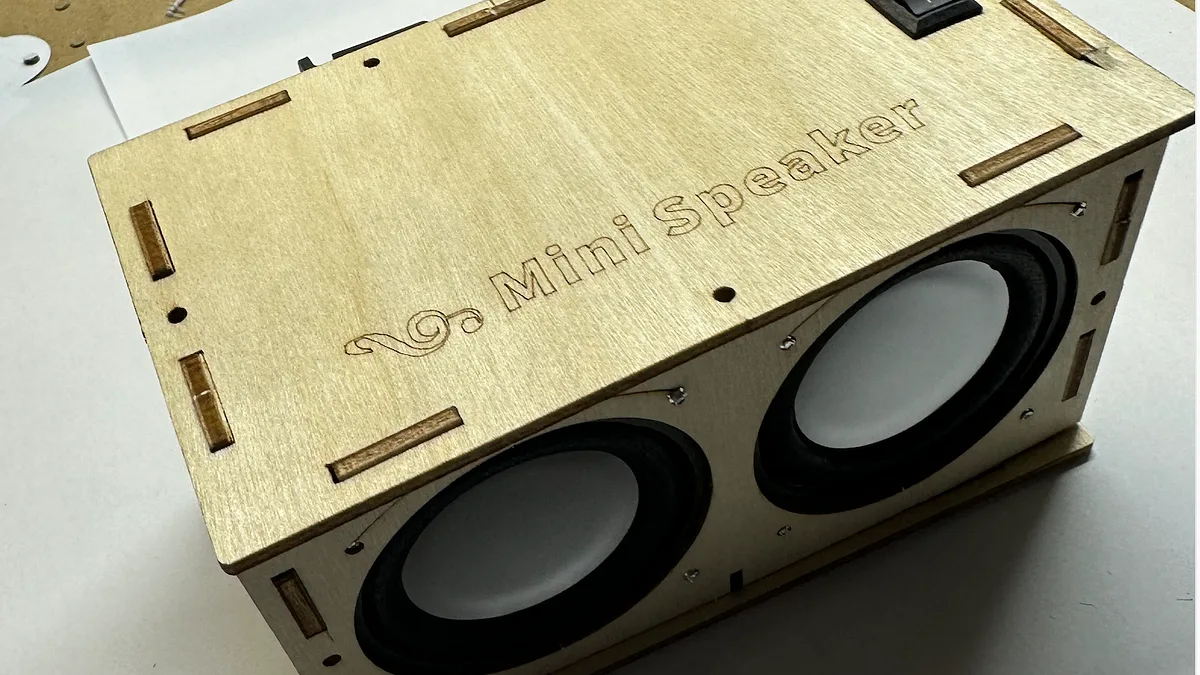

9) Turn the unit on and it should appear on your iphone as a bluetooth device.
