All Products

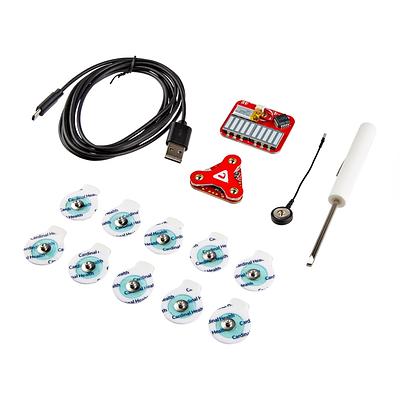

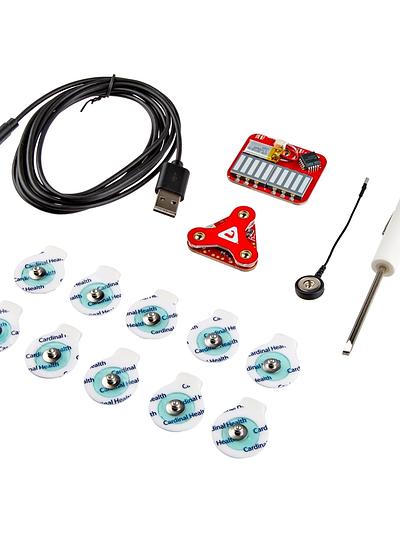

SKU: SF-KIT-27921 · MPN: KIT-27921

This all-in-one MyoWare 2 electromyography (EMG) kit gives you the essentials for measuring and visualising muscle activity. It is Arduino-compatible, but the included setup is designed to follow the standalone example from the MyoWare 2 Muscle Sensor Guide, so you can use it without a microcontr...

SKU: AF-2773

Have your next project be controlled by your muscles with this pack of Muscle Sensor Surface EMG Electrodes! Pair the electrodes with the MyoWare Muscle Sensor and a microcontroller (ie. Arduino, or anything else with analog input reading ability) to create a DIY low-cost v...

SKU: SF-DEV-21868 · MPN: DEV-21868

The MyoWare® 2.0 Power Shield is designed to easily power the MyoWare 2.0 Muscle Sensor for remote applications. The MyoWare Power Shield is equipped with snap connectors on the board so you can easily stack it to the top side of the MyoWare Muscle Sensor. Flip the switch to the ON position to gi...

SKU: SF-PRT-13875

This is a simple 3 pin female PTH header. This header is in a configuration that makes it ideal to be used with the MyoWare Muscle Sensor line. Each pin has a spacing of 0.1" in between each other. Documents: Datasheet

SKU: SF-DEV-27924 · MPN: DEV-27924

Control a project with muscle activity instead of buttons, levers or joysticks. The MyoWare® 2.0 Muscle Sensor is an all-in-one surface electromyography (sEMG) sensor that detects the electrical signals generated when a muscle flexes, then outputs an analogue signal representing the strength of t...

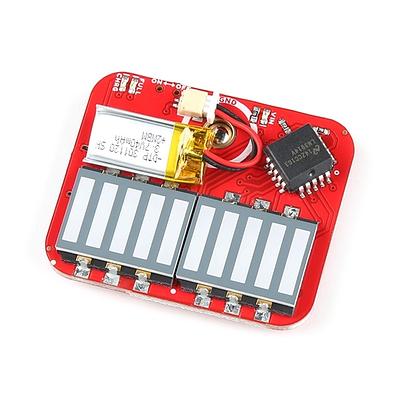

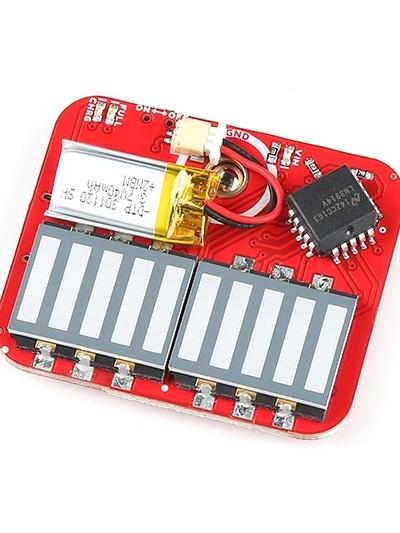

SKU: SF-DEV-21869 · MPN: DEV-21869

This shield gives your MyoWare 2.0 Muscle Sensor an easy visual output, using a blue 10-segment bar graph to show the magnitude of a target muscle’s signal. As muscle activation increases, the LEDs climb further up the board.It snaps onto the top side of the MyoWare 2.0 Muscle Sensor using the on...

SKU: SF-CAB-19244

The MyoWare 2.0 Reference Cable extends the reference pin on the MyoWare 2.0 Muscle Sensor, allowing you to place the reference electrode on a separate part of the body. This is useful when the sensor's built-in reference pin cannot reach a suitable location, such as a bony portion of the elbow o...

SKU: SF-DEV-18425

The MyoWare 2.0 Link Shield connects a MyoWare 2.0 Muscle Sensor to your Arduino microcontroller via a 3.5mm TRS cable. Simply snap the Link Shield onto your Muscle Sensor using the built-in snap connectors, connect a TRS-to-TRS cable, and link it to the MyoWare 2.0 Arduino Shield on your develop...

SKU: SF-DEV-18426

The MyoWare® 2.0 Arduino Shield is designed to easily connect up to six MyoWare 2.0 Muscle Sensors and Link Shields using 3.5mm TRS-to-TRS audio cables. The board comes pre-populated with male headers so all you would need to do is stack it on your Arduino and connect the sensors to read up to si...

SKU: SF-DEV-18386

The MyoWare® 2.0 Muscle Sensor is designed to be wearable, allowing you to attach biomedical sensor pads directly to the board itself. However, there still may be cases where you want to mount the sensor pads away from the board; this is where the MyoWare 2.0 Cable Shield comes in. The shield inc...

SKU: SF-KIT-19627

This is a 10 pack of the MyoWare® Reference 2.0 Cables. The MyoWare 2.0 Reference Cable is meant as an extension for the MyoWare 2.0 Muscle Sensor's reference pin. You will just need to insert the pin into its housing and place a biomedical sensor pad into the electrode snap. When ready, stick th...

SKU: SF-DEV-23387 · MPN: DEV-23387

The MyoWare® 2.0 Wireless Shield is designed to take in readings from the MyoWare 2.0 Muscle Sensor and wirelessly transmit sensor data with the ESP32-WROOM! This shield also includes a built-in LiPo battery to remotely power the muscle sensor and the ESP32 module. The Wireless Shield is equipped...
