Witty Pi 5 HAT+ RTC & Power Management for Raspberry Pi

Name: Witty Pi 5 HAT+ RTC & Power Management for Raspberry Pi
Brand: Adafruit
SKU: AF-6449
Price: 147.4 AUD
Availability: InStock

· MPN: ADA6449

Power Management Raspberry Pi Hats Raspberry Pi Power Hats

$147.40 |

In stock at supplier

No reviews yet

Add reliable real-time clock and programmable power control to a Raspberry Pi with this HAT+ add-on board. Witty Pi 5 can define your Raspberry Pi’s on/off s...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

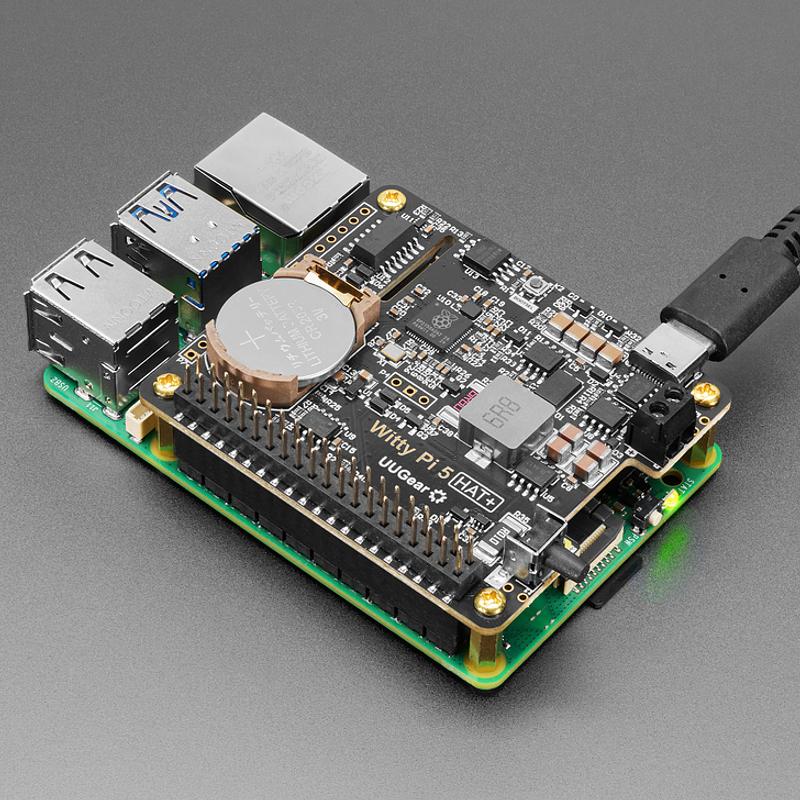

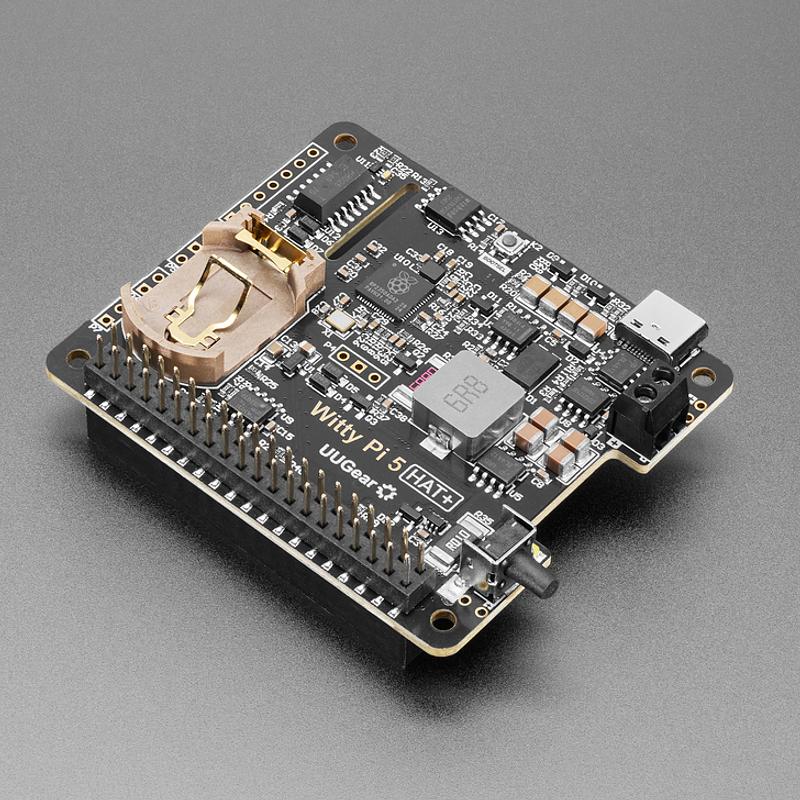

Add reliable real-time clock and programmable power control to a Raspberry Pi with this HAT+ add-on board. Witty Pi 5 can define your Raspberry Pi’s on/off sequence, trigger power actions based on temperature or voltage thresholds, and help reduce overall energy consumption in remote or battery-conscious projects.

This fifth-generation Witty Pi is the first in the line to comply with the Raspberry Pi HAT+ specification. As a Mode 1 Power HAT+ board, it can deliver up to 5A to the Raspberry Pi and connected peripherals, while its onboard DC/DC converter accepts up to 30V DC input.

It supports Raspberry Pi models with a 40-pin GPIO header, including A+, B+, 2B, Zero, Zero W, Zero 2 W, 3B, 3B+, 3A+, 4B and 5B. For Zero-series boards, you’ll need to solder a 40-pin header first for a reliable connection.

The firmware and software are open-source for developer customisation, with firmware written in C using the pico-sdk and software written in C. Firmware updates are handled via the BOOTSEL button and USB boot mode, and the board can emulate both a USB flash drive and a USB serial device for configuration, logs and debugging. Coin cell battery is not included.

Features:

Real-time clock: High-precision RTC with an accuracy of ±3.8 to 5 ppm.
Temperature sensor: Dedicated temperature sensor with 0.0625°C resolution.
DC/DC converter: Onboard DC/DC converter that accepts up to 30V DC input.
Ideal diodes: Two “ideal” diodes that isolate VIN and VUSB.
Microcontroller: RP2350 MCU with an external 16MB flash memory.
ID EEPROM: Compatible with the HAT+ specification.
Power sequencing: Can define the on/off sequence of your Raspberry Pi.
Threshold actions: Can perform power on/off actions based on temperature or voltage thresholds.
Lower power operation: Can significantly reduce overall energy consumption.
Developer friendly: Firmware and software are fully open-source for modification and adaptation.
Easy firmware updates: Hold BOOTSEL while connecting USB, then drag and drop the compiled .uf2 firmware file.
USB tools: Emulates both a USB flash drive and a USB serial device for configuration, logs and real-time monitoring.

Specifications:

HAT standard: Raspberry Pi HAT+ specification.
Power HAT+ mode: Mode 1 Power HAT+ board.
Output current: Up to 5A current to Raspberry Pi and its peripherals.
Raspberry Pi compatibility: All Raspberry Pi models with a 40-pin GPIO header, including A+, B+, 2B, Zero, Zero W, Zero 2 W, 3B, 3B+, 3A+, 4B, and 5B.
Zero-series requirement: For models like Zero, Zero W, and Zero 2 W, you will need to solder a 40-pin header onto the board beforehand to ensure a reliable connection with Witty Pi.
RTC accuracy: ±3.8 to 5 ppm.
Temperature sensor resolution: 0.0625°C.
DC input: Up to 30V DC input.
Microcontroller: RP2350.
External flash memory: 16MB.
ID EEPROM: Compatible with HAT+ specification.
Firmware: Written in C using the pico-sdk.
Software: Written in C.
Software and firmware: Fully open-source.
Software installation command 1: pi@raspberrypi:~ $ wget https://www.uugear.com/repo/WittyPi5/wp5_latest.deb
Software installation command 2: pi@raspberrypi:~ $ sudo apt install ./wp5_latest.deb
Firmware update mode: Hold the BOOTSEL button while connecting the USB cable to make the RP2350 enter USB boot mode and present itself as a virtual USB drive.
Firmware file: Drag-and-drop the compiled .uf2 firmware file to flash it.
USB emulation: USB flash drive and USB serial device.
Battery: Coin cell battery is not included.
Customer support: Supplier forum.
User Manual: Available from the supplier.

Ideal for scheduled Raspberry Pi projects, remote deployments, data loggers and systems that need controlled shutdowns or reliable timekeeping.
