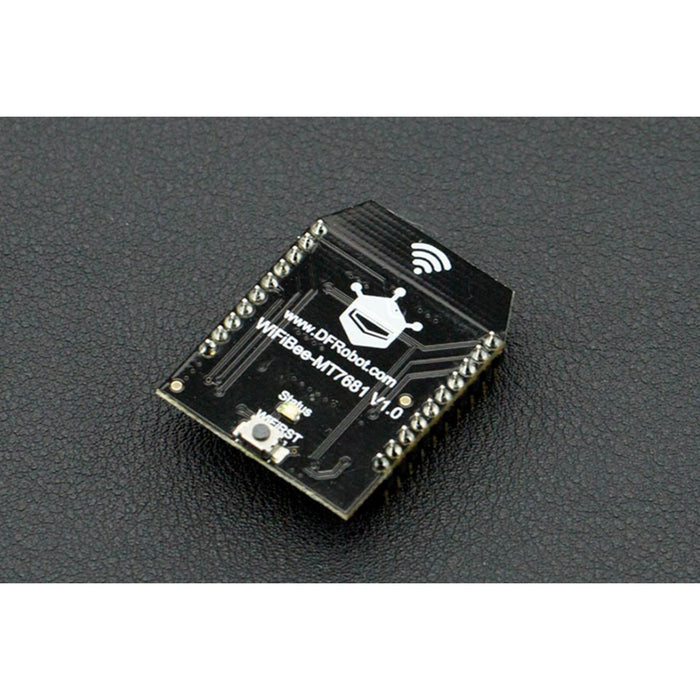

WiFiBee-MT7681 (Support Arduino WiFi Wireless Programming)

The WiFiBee MT7681 is an XBee-compatible Wi-Fi module based on the MediaTek MT7681 chip. It plugs into any standard XBee socket to add Wi-Fi networking to your project, and supports wireless Arduino programming — upload sketches over Wi-Fi without a USB cable.

Supporting IEEE 802.11b/g/n with WEP/WPA/WPA2 encryption, the module operates in both STA (station) and AP (access point) modes. It communicates via UART serial and can be configured using AT commands. Three breakout I/O ports with software PWM support make it useful as a Wi-Fi remote control as well.

Key Features

• XBee Form Factor – Drop-in replacement for any XBee socket
• Arduino Wireless Programming – Upload code over Wi-Fi, no USB cable needed
• IEEE 802.11b/g/n – 2.4 GHz Wi-Fi with 14 channels
• STA and AP Modes – Connect to a router or create its own access point
• SmartLink – Intelligent connection via companion app (Android)
• OTA Firmware Upgrade – Update firmware over the air
• 3× I/O Ports – With software PWM output support
• AT Command Configuration – Set parameters via serial terminal

Specifications

• Chipset – MediaTek MT7681
• Protocol – IEEE 802.11b/g/n
• Frequency – 2.4–2.4835 GHz
• Transmit Power – 15–18 dBm
• Wi-Fi Range – Up to 180 m (environment dependent)
• Encryption – WEP / WPA-PSK / WPA2-PSK / TKIP / AES
• Operating Voltage – 3.3V
• Power Consumption – 75 mA
• UART Baud Rates – 9600, 14400, 19200, 38400, 57600, 115200 bps (default)
• TCP Ports – 1000 (UART data), 1001 (AT commands)
• UDP Port – 3333 (broadcast)
• Dimensions – 32 × 24 mm
• Weight – 3.5 g

Ideal For

• Adding Wi-Fi to XBee-compatible projects
• Wireless Arduino programming for robots and mobile platforms
• IoT and home automation applications
• Wi-Fi remote control with PWM outputs

Package Contents

• 1× WiFiBee-MT7681 Module

Resources

• DFRobot Product Wiki
