USB Oscilloscope - MSO-28

The MSO-28 from Link Instruments is a compact USB-powered instrument that combines a 2 GSa/s oscilloscope with a 200 MSa/s 8-channel logic analyser in a single device. All ten channels are sampled on the same clock, giving you accurate time correlation between analogue and digital signals.

Weighing just 70 g (2.5 oz), the MSO-28 is small enough to carry in a laptop bag or tool kit. Simply connect via USB, install the included software, and you're ready for serious troubleshooting.

Key Features

• Combined Oscilloscope & Logic Analyser – 2-channel DSO plus 8-channel logic analyser in one device
• High-Speed Sampling – 200 MSa/s single-shot sample rate with 60 MHz bandwidth
• Advanced Triggering – Rising/falling edge, pulse width, logic trigger words, I2C, and SPI triggers
• Protocol Decoding – Display and decode SPI and I2C serial bus protocols
• FFT Spectrum Analyser – Built-in frequency domain analysis
• USB Powered – No external power supply needed
• Compact & Lightweight – 102 × 61 × 20 mm, 70 g

Specifications

• Oscilloscope Sample Rate – 2 GSa/s (equivalent time)
• Logic Analyser Sample Rate – 200 MSa/s
• Bandwidth – 60 MHz
• Channels – 2 analogue + 8 digital
• Triggers – Edge, pulse width, logic, I2C, SPI
• Power – USB powered
• Dimensions – 102 × 61 × 20 mm
• Weight – 70 g

Ideal For

• Embedded systems debugging and development
• I2C and SPI bus analysis
• Portable field troubleshooting
• Mixed-signal circuit analysis

Package Contents

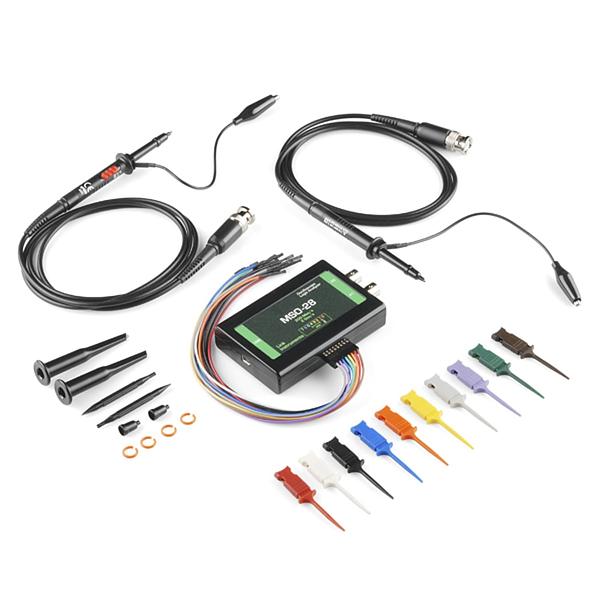

• 1× MSO-28 Oscilloscope / Logic Analyser
• 1× Software and Drivers CD
• 1× x1/x10 Oscilloscope Probes with test hook attachments
• 1× 8-Pin Wiring Harness
• 1× EZ Hook Test Probes
• 1× USB Mini-B Cable

Resources

• How to Use an Oscilloscope – Tutorial
