USB/DC Lithium Polymer battery charger 5-12V [3.7/4.2v cells]

$27.49

Part Number:  AF-280
Brand:  Adafruit Australia

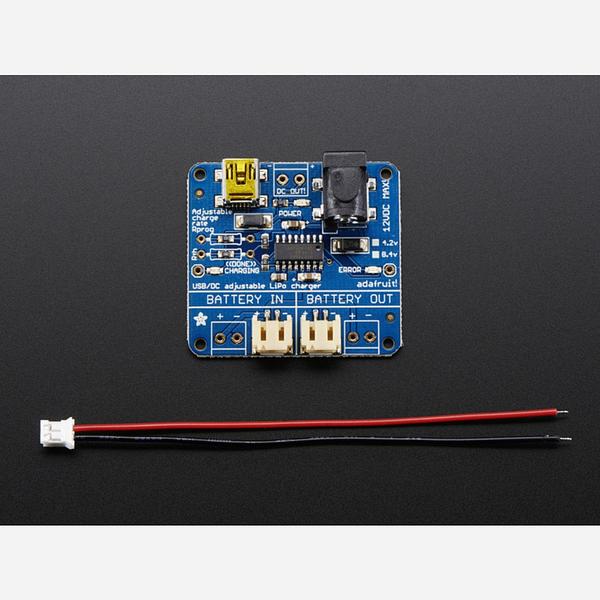

DescriptionCharge your single-cell lithium ion/polymer battery any which way you like with this board. Have a USB connection? No problem, just plug into the miniUSB connector. Only have a wall adapter? Any standard 2.1mm DC adapter which puts out 5 to 12VDC will work fine. If both are plugged in, the charger will automatically choose whichever has the highest voltage. Other nice things about this...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

Charge your single-cell lithium ion/polymer battery any which way you like with this board. Have a USB connection? No problem, just plug into the miniUSB connector. Only have a wall adapter? Any standard 2.1mm DC adapter which puts out 5 to 12VDC will work fine. If both are plugged in, the charger will automatically choose whichever has the highest voltage.

Other nice things about this charger include multiple LEDs for power & charging status, including a charging LED which will blink when the battery is full. If the charger gets too hot from high-speed charging, it will slow down the charge rate automatically. You can easily adjust the charge rate up to 1.2A or down to 100mA.

For use with Adafruit Lipoly/LiIon batteries only! Other batteries may have different voltage, chemistry, polarity or pinout.

  • Use USB or DC power - 5 to 12V input
  • Charges one single-cell 3.7/4.2v batteries (not for older 3.6/4.1v cells) with constant current/constant voltage
  • Three indicator LEDs - green for Power, orange for charging and red for error
  • Charging LED will blink when the battery is full
  • You don't have to worry about heat dissipation in the charger, even when plugging in a 12V DC power jack - thermal protection inside will slow down the charge rate to prevent damage
  • 2 JST connections so you can keep the battery plugged in and powering your project
  • Terminal block connections galore (if you don't like JST connectors) just solder in 3.5mm terminal blocks
  • Default charge rate is about 500mA, but you can easily change this by soldering in a through-hole resistor on. The chip can do 100-1200 mA charging
  • Safety timer will stop charging after about 14 hours
  • The chip supports a standard 10K thermistor, which they have stuffed as a standard resistor. You can solder in a thermistor easily
  • Lots of information in the datasheet for the MCP73861
  • Fully assembled, tested and comes with a free JST cable
  • Schematic available for your perusal
  • Dimensions: 1.75" x 1.6"



Battery, USB cable and DC power plug not included. But they do stock them in the store!

Technical Details

Details:

  • Dimensions: 40mm x 44mm x 13mm (1.6in x 1.7in x 0.5in)
  • Weight: 11.7g ( 0.4oz)
