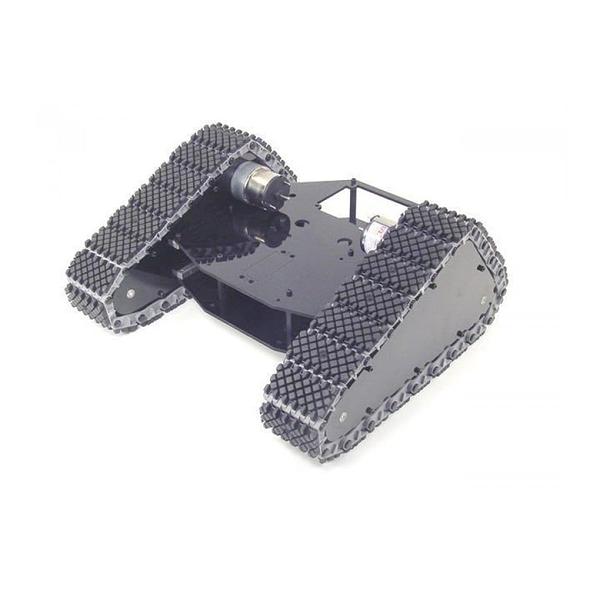

Tri-Track Chassis Kit (no electronics)

The Lynxmotion Tri-Track is a robust tracked robot chassis designed for RC or autonomous robot experimentation. Built for indoor and outdoor use, it performs well on a variety of surfaces with heavy-duty polypropylene and rubber tracks providing excellent traction. The chassis is capable of carrying up to a 2.3 kg (5 lb) payload.

Constructed from laser-cut Lexan structural components and custom aluminium brackets, with durable ABS-moulded sprockets. Includes two 12 V DC 50:1 gearhead motors. Electronics and batteries are sold separately.

Key Features

• Tracked Drive System – Heavy-duty polypropylene and rubber tracks with ABS sprockets
• Dual Gearhead Motors – 2× 12 V DC 50:1, 120 RPM (6 mm shaft)
• 5 lb Payload Capacity – Room for motor controllers, batteries, and sensors
• Durable Construction – Laser-cut Lexan and custom aluminium brackets
• Indoor/Outdoor Use – Performs well on varied surfaces

Specifications

• Length – 10.00" (254 mm)
• Width – 11.00" (279 mm)
• Height – 5.00" (127 mm)
• Ground Clearance – 1.00" (25 mm)
• Deck Height – 3.00" (76 mm)
• Deck Dimensions – 7.25" W × 7.88" D
• Weight – 1.36 kg (3.0 lbs), without batteries or electronics
• Speed – 17.2 in/sec (~437 mm/sec)

Package Contents

• 1× Wiring Harness with battery connector
• 2× Gearhead motor connection wires
• Laser-cut Lexan structural components
• 2× Gearhead Motors – 12 V DC 50:1, 120 RPM (6 mm shaft)
• 2× Tracks – 2" wide × 21 links (~23" each)
• 6× Track Sprockets – 6-link (pairs)

Resources

• Tracks Assembly Guide
• Tri-Track Chassis Guide
