Thumb Slide Joystick
A compact resistive analog joystick similar to those found on the PSP1000. Unlike traditional thumbstick joysticks, this one has a distinctive flat "slide" f...

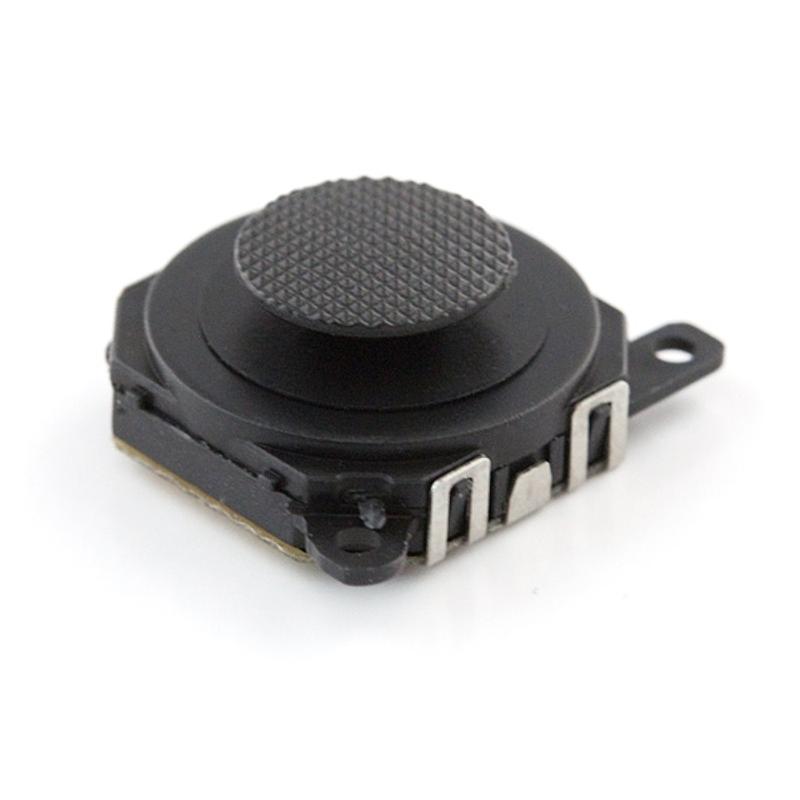

A compact resistive analog joystick similar to those found on the PSP1000. Unlike traditional thumbstick joysticks, this one has a distinctive flat "slide" feel with a removable rubber thumb pad.
Connect to an Arduino's analog inputs to read X and Y axis positions, with an expected range of approximately 128 to 775 on each axis. The pads are spaced at 2 mm, but 2.54 mm headers can be fitted with a bit of bending.
Key Features
- Dual-Axis Analog Output – Resistive X and Y axis outputs for precise position sensing
- Compact Slide Design – Low-profile form factor with a smooth sliding action
- Removable Thumb Pad – Rubber pad can be removed if preferred
- Arduino Compatible – Connect to analog inputs for immediate use

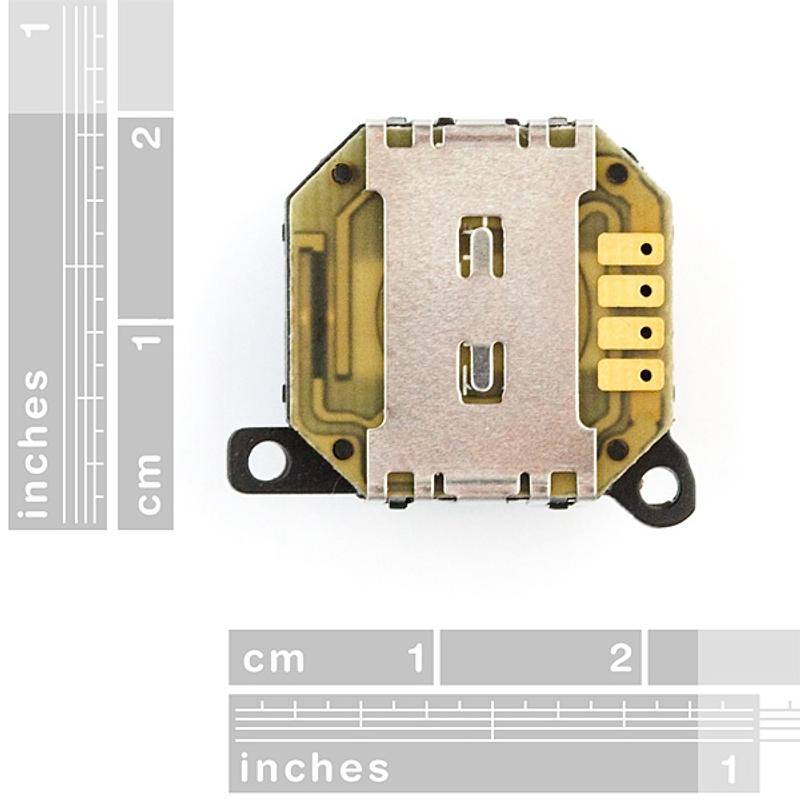

Pinout (Bottom View)
- Pin 1 – X-axis output
- Pin 2 – +5 V
- Pin 3 – Y-axis output
- Pin 4 – GND (closest to the two mounting tabs)
Specifications
- Type – Resistive analog joystick
- Voltage – 5 V
- Analog Range – ~128 to 775 per axis (on Arduino ADC)
- Pad Spacing – 2 mm (compatible with 2.54 mm headers with slight bending)
Ideal For
- Game controllers and handheld projects
- Robot and servo control interfaces
- Menu navigation on embedded displays
Jargon buster
Plain-language definitions for the technical terms used above.
- ADC
- An analogue-to-digital converter reads a changing voltage and turns it into a number the microcontroller can use. It matters when connecting analogue sensors such as light, sound, or variable-resistor sensors.
- Headers
- Rows of metal pins used to plug a module into a breadboard or connect it with jumper wires. Pre-soldered headers make the module easier to use straight away without needing to solder the pins yourself.
- servo
- A servo is a motor with built-in position control, usually told to move to a specific angle by a control signal. It matters when you need repeatable movement, such as steering, arms, flaps, or linkages, rather than continuous spinning.
