Teensy 4.0 Lockable Development Board

Name: Teensy 4.0 Lockable Development Board
Brand: SparkFun
SKU: SF-DEV-28368
Price: 39.77 AUD
Availability: OutOfStock

· MPN: DEV-28368

Teensy Microcontrollers & Development Boards

$39.77 |

Out of stock

No reviews yet

This lockable Teensy 4.0 is a compact, very fast development board built around the NXP MIMXRT1062DVL6B ARM Cortex-M7 microcontroller. It runs at 600 MHz and...

Add to Wishlist

Compare

Get notified when back in stock

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

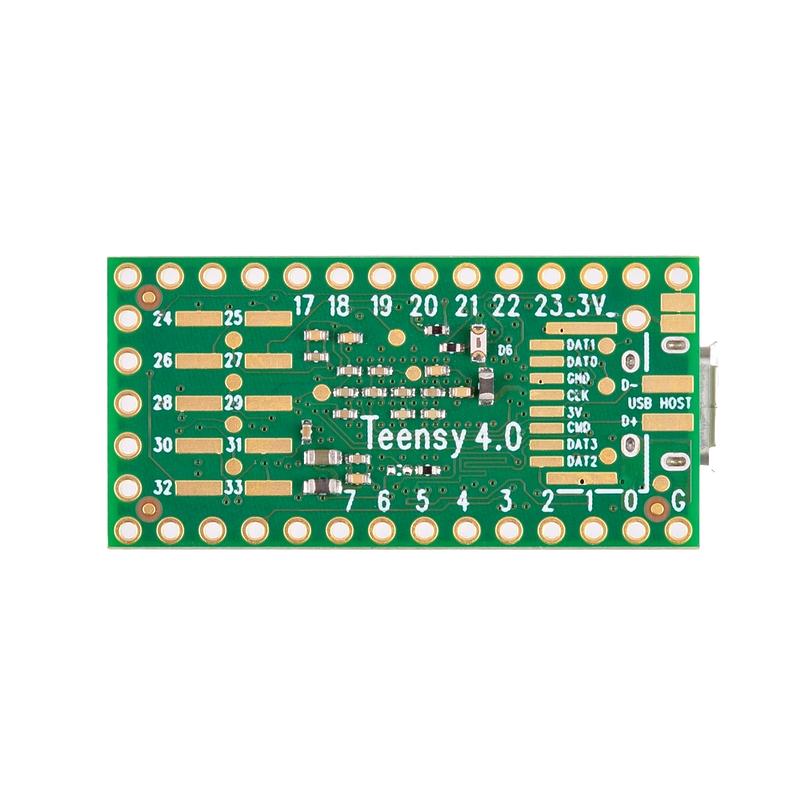

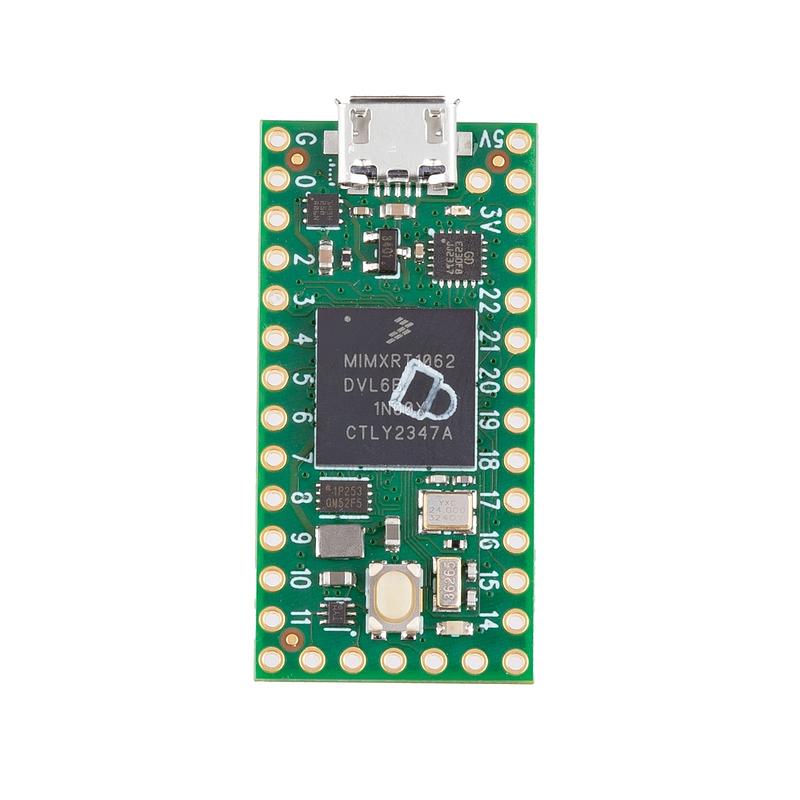

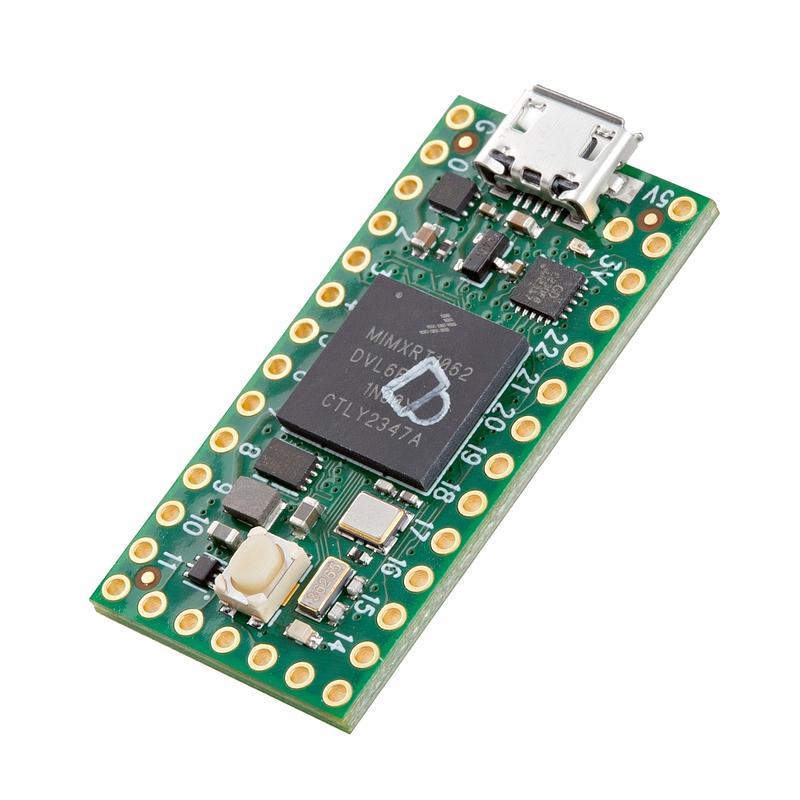

This lockable Teensy 4.0 is a compact, very fast development board built around the NXP MIMXRT1062DVL6B ARM Cortex-M7 microcontroller. It runs at 600 MHz and keeps the familiar Teensy footprint and breadboard-friendly layout, making it suitable for demanding embedded, audio, control and connected projects.

This version is intended for production and commercial applications where code protection matters. It provides write access to the chip’s eFuses so you can permanently lock the device into secure mode with your own encryption key; once locked, application code is encrypted, JTAG is disabled, and the microcontroller will only run code encrypted with your private key.

Please treat the locking process carefully: it is one-way and irreversible, and setting the fuses incorrectly can permanently brick the board. For development and prototyping, use the standard Teensy 4.0 before moving to this lockable version for final products.

The Teensyduino environment automatically places sketch code into fast tightly coupled memory, and supporting documentation includes quick start material, pin assignment charts, Teensyduino software information, and lockable Teensy code-security guidance.

Features:

Production-grade code security: Designed for developers moving from prototype to a final, secure product.
eFuse access: Allows the device to be locked into a secure mode permanently.
Encrypted application code: Helps prevent unauthorised reading, cloning or modification of intellectual property.
Secure mode: JTAG debug port is permanently disabled.
Private-key execution: The microcontroller will only run code encrypted with your private key.
Dual-Issue Superscalar Processor: Can execute two instructions per clock cycle at 600 MHz.
Branch Prediction: Learns loops and removes branch overhead so the branch instruction can run in a single clock cycle.
Hardware FPU: Provides hardware acceleration for both 64-bit "double" and 32-bit "float" types.
Tightly Coupled Memory: Enables very fast single-cycle access memory for the Cortex-M7.
Dynamic Clock Scaling: CPU speed can change on the fly without breaking serial baud rates, audio sample rates, delay() or millis().
Power On/Off: A dedicated On/Off pin can completely disable the 3.3V power supply.
RTC Support: The Real-Time Clock can keep date and time when a coin cell is connected to VBAT.
Overclocking: Capable of being overclocked well beyond 600 MHz.
Cryptographic Acceleration: Included.
Random Number Generator: Included.
RTC for date/time: Included.
Programmable FlexIO: Included.
Pixel Processing Pipeline: Included.
Peripheral cross triggering: Included.
Power On/Off management: Included.

Specifications:

Processor: ARM Cortex-M7 at 600MHz
Microcontroller: NXP MIMXRT1062DVL6B
CPU speed: 600 MHz
RAM: 1MB (1,024KB)
RAM: 1024K RAM (512K is tightly coupled)
Flash memory: 2MB (2,048KB)
Flash memory: 2048K Flash (64K reserved for recovery & EEPROM emulation)
EEPROM emulation reserve: 64KB reserved for EEPROM emulation

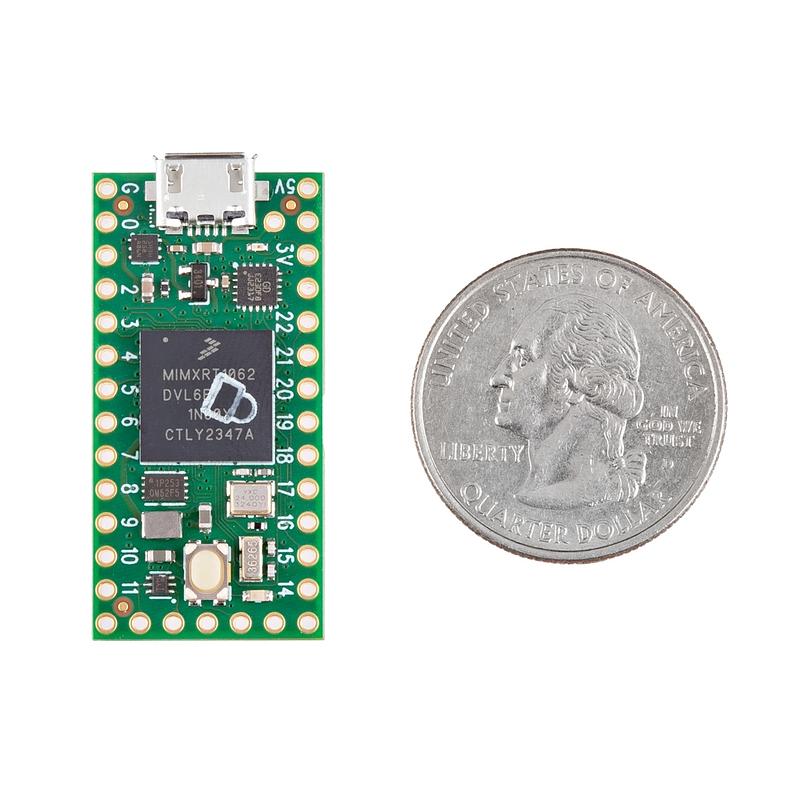

Board size: 1.4 x 0.7 inches
Package: compact 144-pin package
TCM allocation: 512K of its 1024K total RAM
TCM buses: a pair of dual 64/32-bit high-speed buses
Typical current: approximately 100mA when running at 600 MHz
USB ports: 2 USB ports, both 480MBit/sec
CAN Bus: 3 CAN Bus (1 with CAN FD)
I2S Digital Audio: 2 I2S Digital Audio
S/PDIF Digital Audio: 1 S/PDIF Digital Audio
SDIO: 1 SDIO (4 bit) native SD
SPI: 3 SPI, all with 16 word FIFO
I2C: 3 I2C, all with 4 byte FIFO
Serial: 7 Serial, all with 4 byte FIFO
DMA channels: 32 general purpose DMA channels
PWM pins: 31 PWM pins
Digital pins: 40 digital pins, all interrrupt capable
Analog pins: 14 analog pins, 2 ADCs on chip

A strong choice for experienced Teensy users finalising a secure product, especially where high-speed processing, audio, CAN, USB, SPI, I2C or real-time control are required.
