T'Rex Tank Chassis
Discontinued

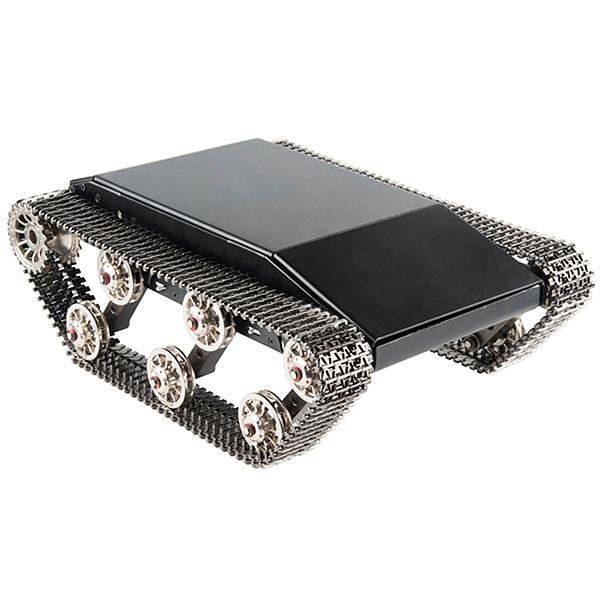

The T'Rex Tank Chassis is a full-metal, all-terrain robot platform designed for demanding driving conditions. Equipped with two independently driven 12V DC gearmotors and die-cast zinc tank treads, it provides excellent traction and durability right out of the box while offering plenty of room for expansion.
The anodised aluminium body houses ample space for motor controllers, batteries, sensors, and other electronics. Two top panels remove via quick-release spring catches, and a front hinged cover plate can be swapped for a custom mounting plate. The die-cast zinc gears, tracks, suspension struts, and wheels resist corrosion for low-maintenance operation.
Key Features
- All-Metal Construction – Anodised aluminium body with die-cast zinc tracks, struts, and wheels
- Dual 12V DC Gearmotors – Independently driven with all-metal gearboxes
- Tank Tread Drive – Three lower wheels per side for improved traction and shock absorption
- Quick-Access Panels – Spring-release top panels and hinged front cover
- Spacious Interior – Room for controllers, batteries, and sensors
- 70 mm Ground Clearance – Low centre of gravity for stability on rough terrain
Motor Specifications
- Voltage – 12V DC
- No Load Current – 1.3 A
- Typical Current – 4 A
- Stall Current – 11 A (measured with 3S 5000 mAh LiPo)
Chassis Specifications
- Dimensions – 355 × 175 × 130 mm
- Weight – 3.7 kg
- Ground Clearance – 70 mm
- Body Material – Anodised aluminium
- Track Material – Die-cast zinc
Ideal For
- All-terrain robotics projects
- Outdoor and rough-surface robots
- Heavy-duty robot platforms
- Custom autonomous vehicles
Package Contents
- 1× T'Rex Tank Chassis (fully assembled rolling chassis)
