- AP3012
-
AP3012 is the part number of a step-up DC/DC boost converter chip. The part number matters if you need to check the power limits, switching frequency, or datasheet details for how the board supplies the SEN55 sensor.
- boost converter
-
A boost converter is a power circuit that raises a lower input voltage to a higher output voltage. It matters here because the board can power a sensor that needs a higher supply voltage while still using a single connector for power and data.
- I2C
-
I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
- LED
-
A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
- logic-level shifting
-
Logic-level shifting converts digital signals between voltage levels, such as 3.3V and 5V. It matters because it helps the module connect safely to microcontrollers that use different logic voltages.
- particulate matter
-
Particulate matter means tiny particles suspended in the air, such as dust, smoke, pollen, or pollution. A sensor that measures it is useful for air-quality projects because particle levels can affect comfort and health.

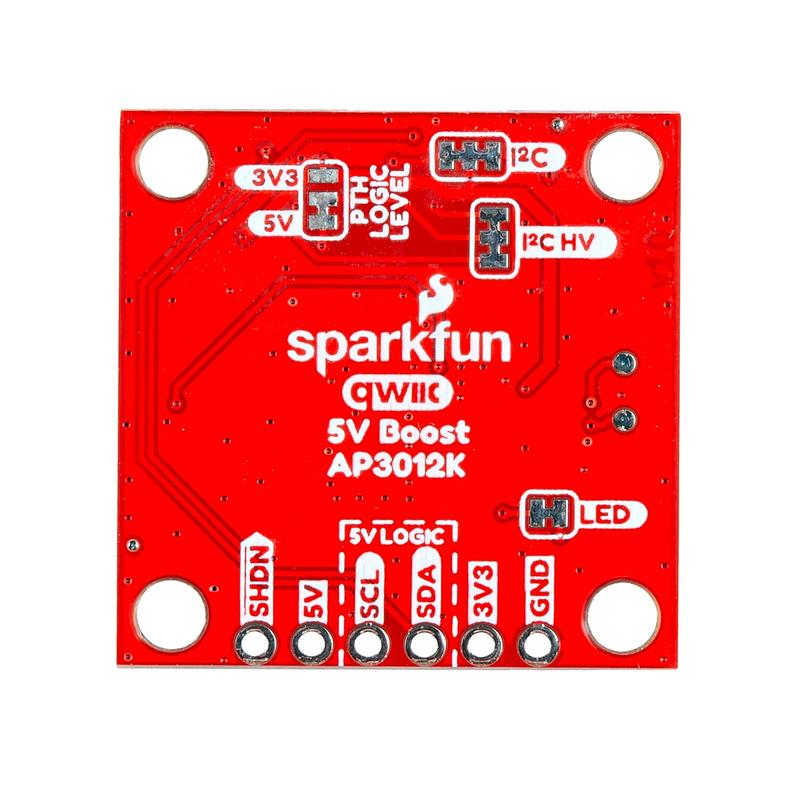

- PTH
-
Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.
- Qwiic
-
Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.
- RGB
-
Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.
