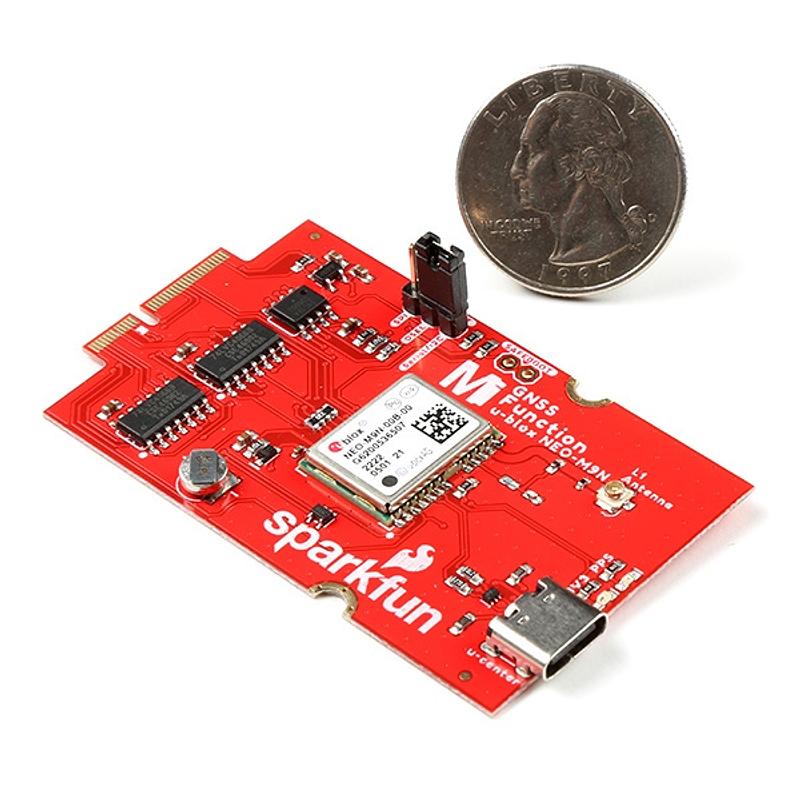

SparkFun MicroMod GNSS Function Board - NEO-M9N

Jargon buster

Plain-language definitions for the technical terms used above.

AP2112K

AP2112K is a small voltage regulator chip that provides a stable 3.3V supply for electronics on the board. The regulator rating matters when checking input voltage range and how much current the board can supply or use.

Galileo

Europe’s satellite navigation system. Galileo support can improve satellite availability and accuracy, especially when combined with GPS and other constellations.

GLONASS

Russia’s satellite navigation system. A receiver that can also use GLONASS has more satellites to choose from, which can improve positioning reliability when the sky view is partly blocked.

GNSS

GNSS stands for Global Navigation Satellite System, covering positioning systems such as GPS and similar satellite networks. It matters here because high-precision GNSS modules can output lots of serial position data that this product can send wirelessly to a computer or phone.

GPS

The US satellite navigation system used by GNSS receivers to calculate position and time. Support for GPS is important because it is widely available and often used together with other constellations for more reliable positioning.

M.2

A compact edge-connector format commonly used to plug small modules into a carrier board without soldering. On this product it is the physical connector used by the MicroMod system, so compatibility with the matching processor board is important.

MicroMod

A modular board system where a small processor board plugs into a separate carrier board that provides connectors, power, and peripherals. It matters because this carrier board needs a compatible MicroMod processor board before it can run your project code.

RTC

A Real-Time Clock keeps track of time even when the main processor is asleep or powered down, usually with a small backup battery. It matters for data logging and tracking projects that need accurate timestamps.

SPI

A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.

u.FL

u.FL is a tiny snap-on antenna connector often used on compact wireless boards. A board with u.FL usually needs an external antenna, which matters if the product will be inside an enclosure or needs better antenna placement.

UART

UART is a simple serial connection that sends data over separate transmit and receive wires, often labelled TX and RX. It matters because this module is designed to replace a wired UART cable with a wireless link while keeping the same serial data format.

USB-C

A modern reversible USB connector used for power and data connections. On this product it matters because it can connect directly to a computer as well as to a microcontroller project.
