Smoke Translucent Enclosure for Arduino - Electronics enclosure [1.0] Adafruit AF-821 Australia

Smoke Translucent Enclosure for Arduino - Electronics enclosure [1.0]

$22.64

Part Number:  AF-821
Brand:  Adafruit Australia

DescriptionAdafruit are very excited to have one of the first (and they think the best) Enclosure for Arduino & project box now available in gray translucent plastic, the future! Here are all the details: Dimensions: 3.6" x 5" x 1.35" Injection molded gray translucent plastic Enclosure is easy to machine, drill, cut and shape to what you need Brass screw inserts (can be used and...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

Adafruit are very excited to have one of the first (and they think the best) Enclosure for Arduino & project box now available in gray translucent plastic, the future! Here are all the details:

  • Dimensions: 3.6" x 5" x 1.35"
  • Injection molded gray translucent plastic
  • Enclosure is easy to machine, drill, cut and shape to what you need
  • Brass screw inserts (can be used and reused many times, very durable!)
  • Fits standard Arduinos and 16 x 2 LCDs
  • Fits Arduino with Adafruit Protoshield on top with .45" clearance
  • Pop out plates for GPS, buttons, sensors, switches, knobs, etc!
  • Holds up to 4 AAA batteries internally using 2xAAA holders. AA's can squeeze in but the case wont close nicely so they suggest AAA's
  • Comes with screws for the LCD, Arduino and case
  • Made in Canada!

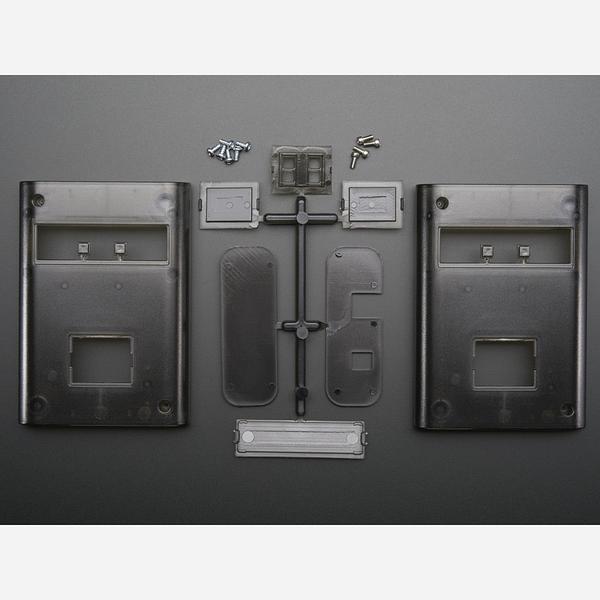

Comes with all parts shown.

Want some ideas of how to use it? Adafruit have a tutorial showing how they made a portable data-logger. Lots of details on how to attach an LCD, drill and add mechanical connections, etc.








Technical Details

Dimensions :

  • 3.6" x 5" x 1.35"
  • 91mm x 126mm x 34mm
  • 75g / 2.64oz
