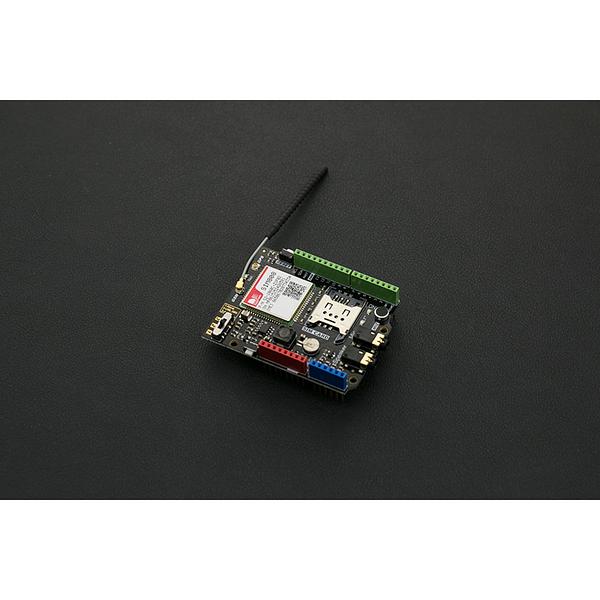

SIM808 Arduino GPS/GPRS/GSM Shield

The SIM808 GPS/GPRS/GSM Shield is an integrated quad-band cellular and GPS navigation shield for Arduino. Compatible with Arduino Uno, Leonardo, Mega, and other standard-footprint boards, it provides SMS, voice calls, GPRS data, MMS, and GPS positioning in a single compact module. A dedicated Arduino library simplifies development without needing to work directly with AT commands.

Key Features

• Quad-Band GSM/GPRS – 850/900/1800/1900 MHz for global 2G network coverage
• GPS Receiver – 22 tracking / 66 acquisition channels with <2.5 m accuracy
• GPRS Data – Class 12, up to 85.6 kbps (TCP/IP, HTTP, FTP)
• Voice and SMS – Make/receive calls and send/receive text messages
• MMS and DTMF Support – Extended messaging and tone signalling
• Standard SIM Card – Full-size SIM card holder
• LED Indicators – Power, network status, and operating mode
• Arduino Compatible – Standard shield pinout for Uno, Leonardo, and Mega

GPS Specifications

• Channels – 22 tracking / 66 acquisition
• Tracking Sensitivity – −165 dBm
• Horizontal Accuracy – <2.5 m CEP
• Update Rate – 5 Hz
• Cold Start – 30 s (typical)
• Warm Start – 28 s (typical)
• Hot Start – 1 s (typical)

General Specifications

• Operating Voltage – 5 V
• Input Power – 7–23 V
• Operating Temperature – −40 °C to +85 °C
• Dimensions – 69 × 54 mm
• Weight – 50 g
• AT Command Support – 3GPP TS 27.007, 27.005, and SIMCom enhanced commands

Ideal For

• GPS tracking and fleet management
• IoT remote data acquisition
• SMS and voice alert systems
• Wireless data transmission projects

Package Contents

• 1× SIM808 GPS/GPRS/GSM Shield
• 1× GPS Antenna
• 1× GSM Antenna

Resources

• Wiki Documentation
• Arduino Library (GitHub)
• AT Command Manual (PDF)
• Hardware Design Guide (PDF)
