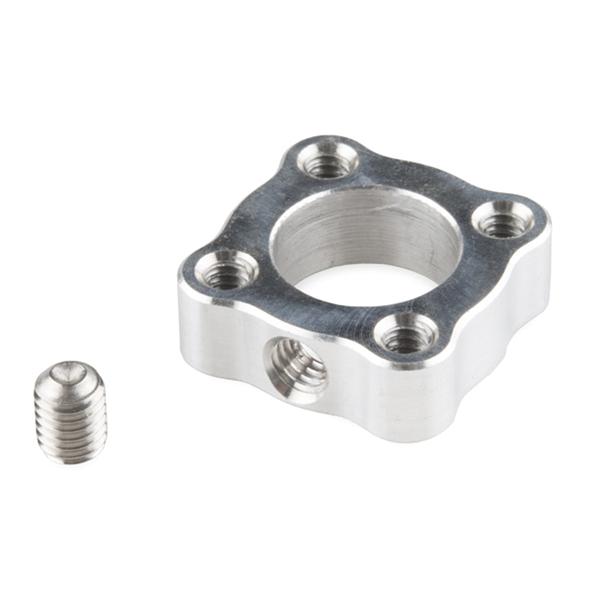

Set Screw Hub - 1/2 Bore
Discontinued
A precision-machined set screw hub for attaching hub-mount gears or wheels to a shaft. Made from 6061 T6 aluminium, it features four equally spaced 6-32 tapped holes in the standard 0.77″ (19.6 mm) Actobotics hub pattern and a 10-32 set screw (3/32″ hex key).
Specifications
- Bore – 1/2″ (12.7 mm)
- Hub Pattern – 0.77″ (19.6 mm), 4× 6-32 tapped holes
- Set Screw – 10-32 (3/32″ hex key)
- Material – 6061 T6 aluminium
Package Contents
- 1× Set Screw Hub (1/2″ bore)
