Servo Hub - Lightweight (Hitec Standard)

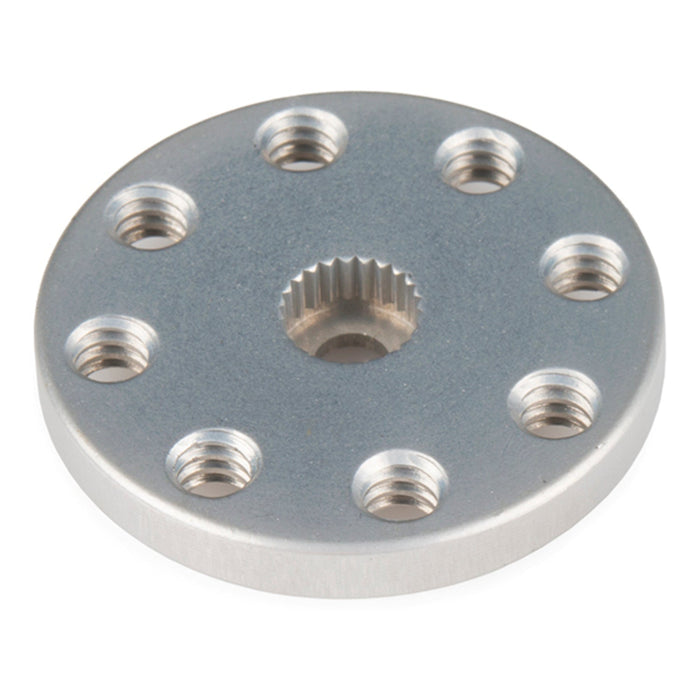

A lightweight aluminium servo hub designed to attach wheels, gears, or heavy-duty servo horns to a C1 Hitec-spline servo shaft. Part of the Actobotics robotics building system, it uses the standard 0.77″ hub pattern and features eight 6-32 screw holes for secure mounting.
Key Features
- C1 Hitec Spline – Fits standard Hitec servos
- Lightweight Aluminium – Strong without adding bulk
- 0.77″ Hub Pattern – Compatible with Actobotics components
- 8× 6-32 Screw Holes – Multiple mounting points
Specifications
- Diameter: 1″ (25.4 mm)
- Width: 0.17″ (4.3 mm)
- Spline: C1 Hitec
- Hub Pattern: 0.77″
- Mounting: 8× 6-32 screw holes
- Material: Aluminium
Ideal For
- Attaching wheels and gears to Hitec servos
- Actobotics robotics builds
- Custom servo-driven mechanisms
Package Contents
- 1× Lightweight Servo Hub (Hitec Standard, C1 Spline)
Resources
The Servo Hub - Lightweight (Hitec Standard) appears in the following collections:
SKU SF-ROB-12543
