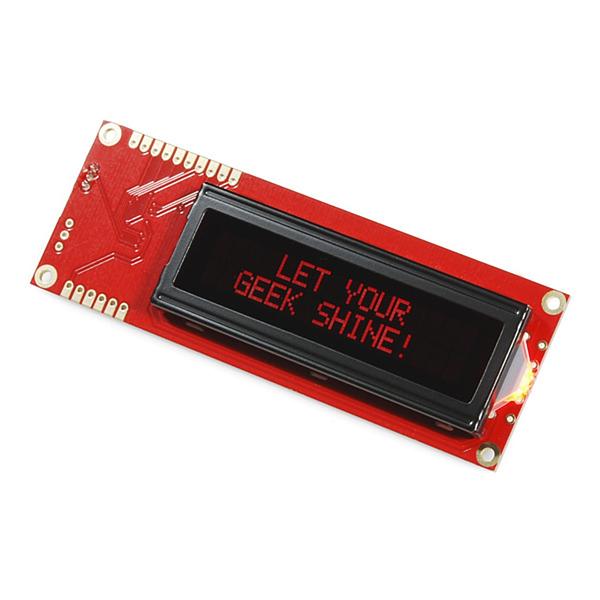

Serial Enabled 16x2 LCD - Red on Black 5V

A 16 × 2 character LCD with red text on a black background and an embedded serial interface. An on-board PIC 16F88 microcontroller accepts TTL serial input and handles all display driving, so only a single data line is needed to print text, clear the screen, adjust backlight brightness, and toggle the display on or off.

Communication uses 5 V TTL serial at a default 9600 bps (8-N-1), adjustable from 2400 to 38,400 bps. Power, ground, and RX are broken out to both a 2.54 mm pitch header and a 3-pin JST connector. A rear potentiometer adjusts display contrast, and PWM backlight control allows brightness and power consumption tuning.

Key Features

• Serial Interface – Single-wire TTL serial control via embedded PIC 16F88
• Adjustable Baud Rate – 2400, 4800, 9600 (default), 14,400, 19,200, and 38,400 bps
• PWM Backlight Control – Adjustable brightness with up to 1 A backlight transistor
• 80-Character Buffer – Incoming serial buffer stores up to 80 characters
• Custom Splash Screen – User-definable boot-up display (can be toggled on/off)
• Dual Connectors – 2.54 mm header and 3-pin JST for VDD, GND, and RX
• Contrast Potentiometer – Rear-mounted for easy adjustment

Specifications

• Display – 16 × 2 character LCD, red on black
• Interface – 5 V TTL serial (8-N-1)
• Controller – PIC 16F88 at 10 MHz
• Default Baud Rate – 9600 bps
• PCB Dimensions – 103 × 36 mm
• LCD Dimensions – 71.4 × 26.4 mm

Ideal For

• Serial data display projects
• Microcontroller interfaces with minimal pin usage
• Embedded system status readouts
• Projects requiring adjustable backlight brightness

Package Contents

• 1× Serial Enabled 16 × 2 LCD (Red on Black, 5 V)

Resources

• Serial LCD Application Note
• Dimensional Drawing (PDF)
• Detailed Drawing and Pinout (PDF)
• Schematic (PDF)
