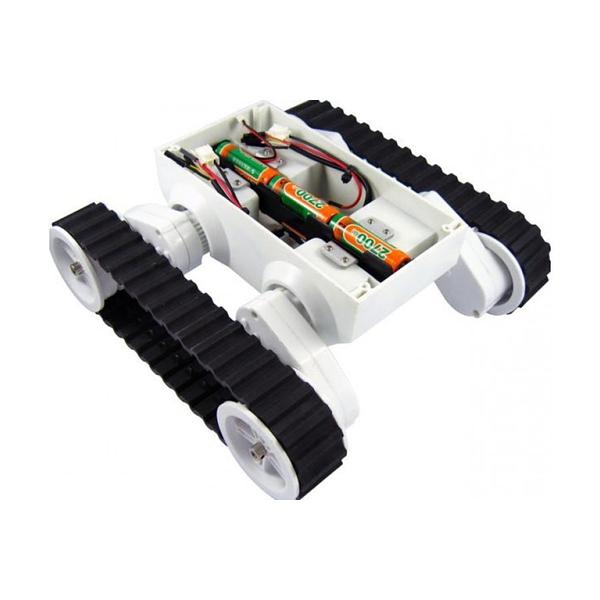

Rover 5 Tank Chassis (2 motors)

$64.68

Part Number:  DF-ROB0055
Brand:  DFRobot Australia

Introduction Rover 5 is a new breed of tracked robot chassis designed specifically for students and hobbyist. Unlike conventional tracked chassis’s the clearance can be adjusted by rotating the gearboxes in 5-degree increments. “Stretchy” rubber treads maintain tension as the clearance is raised. Inside of the chassis are 4 noise suppression coils at the bottom and a battery holder that accepts 6x AA batteries (not...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Introduction

Rover 5 is a new breed of tracked robot chassis designed specifically for students and hobbyist. Unlike conventional tracked chassis’s the clearance can be adjusted by rotating the gearboxes in 5-degree increments. “Stretchy” rubber treads maintain tension as the clearance is raised.

Inside of the chassis are 4 noise suppression coils at the bottom and a battery holder that accepts 6x AA batteries (not included). It is recommended to use NiMh batteries as they last longer and have a higher current output than Alkaline batteries.

Each gearbox has an 87:1 ratio. The chassis can be upgraded to include four motors and encoders making it ideal for mecanum wheels.




Specification
  • Motor rated voltage: 7.2V
  • Motor stall current: 2.5A
  • Output shaft stall torque: 10Kg/cm
  • Gearbox ratio: 86.8:1
  • Speed: 1Km/hr
  • Two motors (no encoders)

Documents
Shipping List Rover 5 Tank Chassis (2 motors) x1
