Raspberry Pi Compute Module 4 Antenna Kit [DF-FIT0735]

Raspberry Pi Compute Module 4 Antenna Kit

Raspberry Pi Compute Module 4 Antenna Kit [DF-FIT0735]

Price: $14.00
This product is currently unavailable for purchase
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

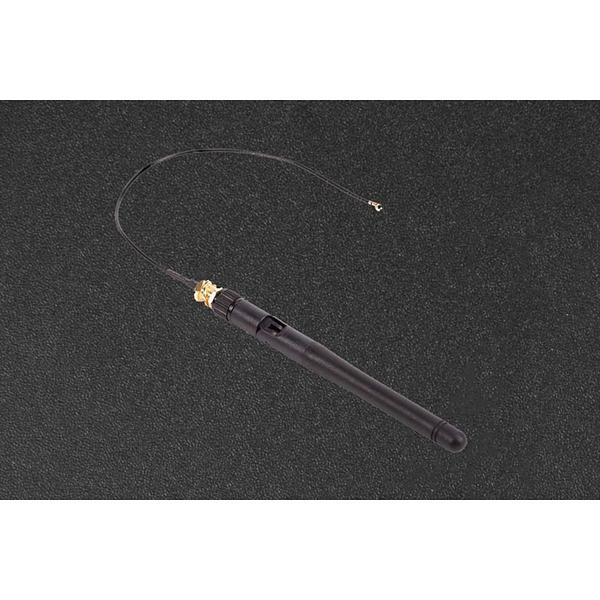

Photo of Raspberry Pi Compute Module 4 Antenna Kit Photo of Raspberry Pi Compute Module 4 Antenna Kit Photo of Raspberry Pi Compute Module 4 Antenna Kit Photo of Raspberry Pi Compute Module 4 Antenna Kit

Description

This Antenna Kit is certified for use with the Raspberry Pi Compute Module 4. If a different antenna is used, then separate certification will be required, and this must be arranged by the end-product design engineer.

Fitting instructions

1.Connect the U.FL connector on the cable to the U.FL-compatible connector on Compute Module 4

2.Screw the toothed washer onto the SMA (male) connector on the cable, then insert this SMA connector through a hole (e.g. 6.4 mm) in the end-product mounting panel

3.Screw the SMA connector into place with the retaining hexagonal nut and washer

4.Screw the SMA (female) connector on the antenna onto the SMA (male) connector which now protrudes through the mounting panel

5.Adjust the antenna to its final position by turning it through up to 90°, as shown in the illustration below.

Dimension

SPECIFICATION

Antenna

  • Model number: YH2400-5800-SMA-108
  • Frequency range: 2400-2500/5100-5800 MHz
  • Bandwidth: 100–700MHz
  • VSWR: ≤ 2.0
  • Gain: 2 dBi
  • Impedance: 50 ohm
  • Polarisation: Vertical
  • Radiation: Omnidirectional
  • Maximum power: 10W
  • Connector: SMA (female)
  • Dimensions: 108 mm × 10 mm
  • Shell material: ABS
  • Installation: Screw
  • Operating temperature: -35 to +75°C
  • Weight: ± 3 g

SMA to U.FL Cable

  • Model number: HD0052-09-A01_A0897-1101
  • Frequency range: 0–6GHz
  • Impedance: 50 ohm
  • VSWR: ≤ 1.4
  • Maximum power: 10W
  • Connector (to antenna): SMA (male)
  • Connector (to CM4): U.FL
  • Dimensions: 205 mm × 1.37 mm (cable diameter)
  • Shell material: ABS
  • Operating temperature: -45 to +80°C

DOCUMENTS

Compliance: Full list of local and regional product approvals
