Particle Photon (Headers)

$29.26

Part Number:  SF-WRL-13774
Brand:  SparkFun Australia

Particle’s IoT (Internet of Things) hardware development board, the Photon, provides everything you need to build a connected project. Particle has combined a powerful 120Mhz ARM Cortex M3 micro-controller with a Broadcom Wi-Fi chip in a tiny thumbnail-sized module called the PØ (P-Zero). These specific Photons come with headers, making prototyping easy as each board can plug directly into standard breadboards and perfboards, and may...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

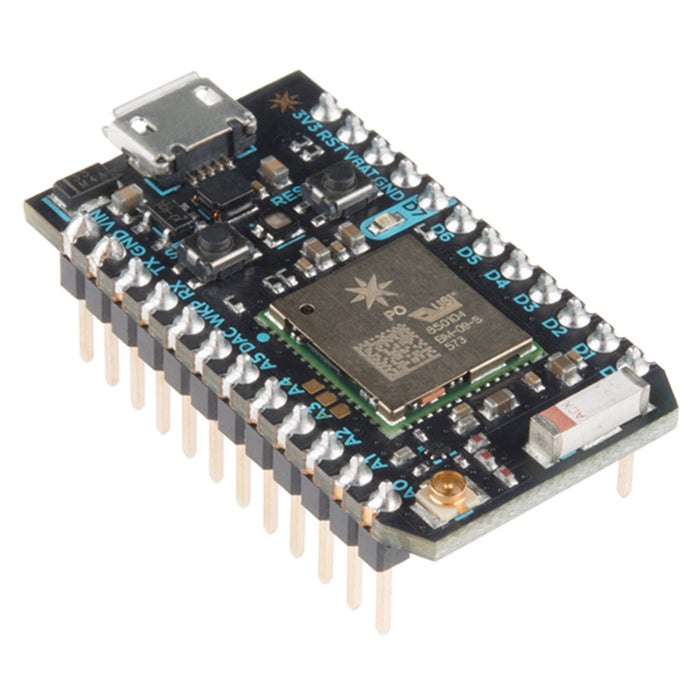

Particle’s IoT (Internet of Things) hardware development board, the Photon, provides everything you need to build a connected project. Particle has combined a powerful 120Mhz ARM Cortex M3 micro-controller with a Broadcom Wi-Fi chip in a tiny thumbnail-sized module called the PØ (P-Zero).

These specific Photons come with headers, making prototyping easy as each board can plug directly into standard breadboards and perfboards, and may also be mounted with 0.1" pitch female headers on a PCB. The Photon is not only powerful, but easy to use. The small form factor is ideal for IoT projects with cloud-connectivity. To get you started quickly, Particle has added a rock solid 3.3VDC SMPS power supply, RF and user interface components to the PØ all on a small single-sided PCB.

Your Photon comes with access to the Particle Cloud, a free cloud service. The Particle Cloud has some great features for building connected projects, including over-the-air firmware updates, an easy-to-use REST API, and firmware development supported by web and local IDEs.

Note: Due to a temporary stock limit from our supplier, we are limiting orders of the Particle Photon to 5 per customer. We have been informed that this limit will be lifted by November. If you have any questions you may contact customer service for more information on the restriction.

Features:

  • Particle PØ Wi-Fi module
    • Broadcom BCM43362 Wi-Fi chip
    • 802.11b/g/n Wi-Fi
    • STM32F205 120Mhz ARM Cortex M3
    • 1MB flash, 128KB RAM
  • On-board RGB status LED (ext. drive provided)
  • 18 Mixed-signal GPIO and advanced peripherals
  • Open source design
  • Real-time operating system (FreeRTOS)
  • Soft AP setup
  • FCC, CE and IC certified
  • Pre-Soldered Headers
