Parallax Propeller Quickstart USB Development Board [AF-791]

Parallax Propeller Quickstart USB Development Board

Parallax Propeller Quickstart USB Development Board [AF-791]

Price: $154.00
This product is currently unavailable for purchase
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

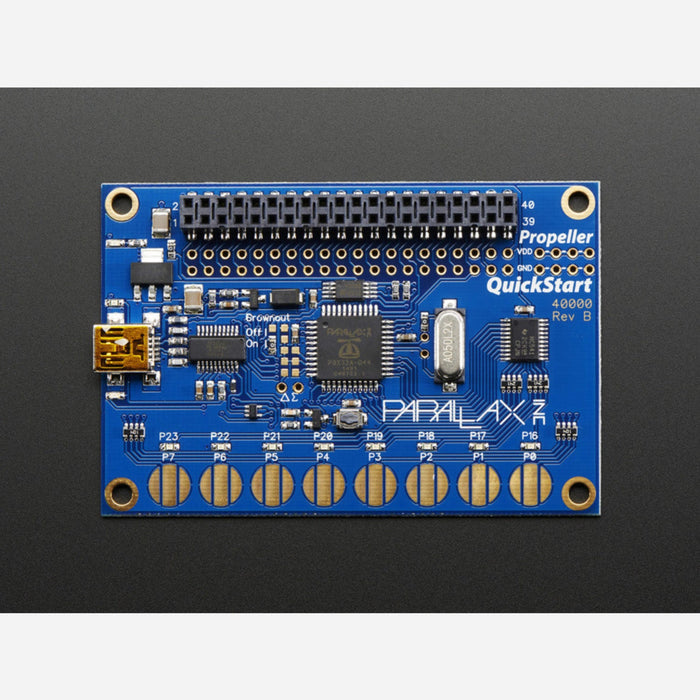

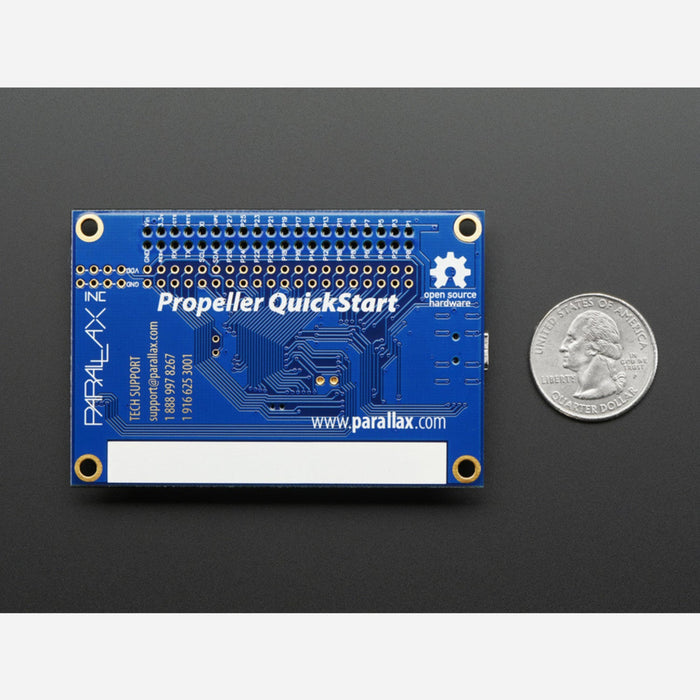

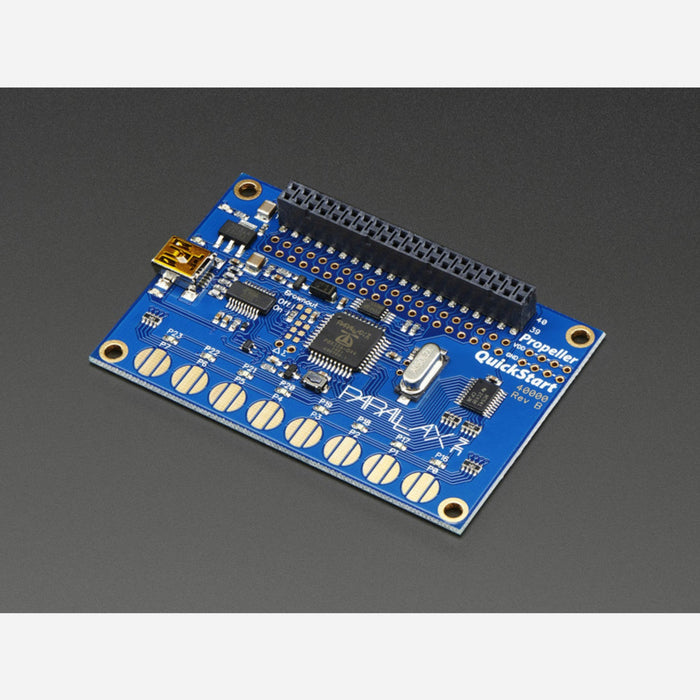

Photo of Parallax Propeller Quickstart USB Development Board Photo of Parallax Propeller Quickstart USB Development Board Photo of Parallax Propeller Quickstart USB Development Board Photo of Parallax Propeller Quickstart USB Development Board

Description

The QuickStart is an evaluation board for the 8-Core Parallax Propeller. As an open-source reference design the QuickStart board provides basic Propeller circuitry. Developers may use our PCB layout files as their own to speed their project towards completion. As a project board the QuickStart is fully expandable and provides unimpeded access to all I/O pins through an expansion header but includes some button inputs and LEDs to demonstrate programming.

Features:

  • Open hardware reference design through our Altium and DipTrace PCB layout files (more export options may be possible)
  • Bus-powered USB coupled with 3.3V regulator for 500 mA
  • 5 mHz cyrstal on board may be disabled by removing SMT jumper, allowing replacement with external through-hole crystal
  • 64KB EEPROM (32K for P8X32A program, 32K for general-purpose use)
  • External brownout reset may be installed by removing SMT jumper
  • (8) blue LEDs on P16-P23
  • (8) resistive touch-buttons on P0-P7
  • Pads for sigma-delta A/D circuitry (two resistors and two capacitors, both 0603) for using the Sigma-Delta A/D AppNote
  • Expansion header provides access to Vss, Vdd, 32 I/O pins (28 for any use, 2 are I2C bus, and two are optional Tx/Rx if connected to USB power)
  • Measures 2" x 3" (5.1 cm x 7.6 cm)

For tutorials and more information on the Parallax Quickstart board, click here!

This board doesn't come with a mini-B USB cable or bumpers, but we stock them in the shop so you may want to pick those up.
