OpenMV H7 Camera
Discontinued
The OpenMV H7 is a compact, low-power machine vision camera that you program in MicroPython instead of C/C++. High-level Python scripting makes it easier to work with complex vision algorithm outputs and data structures while still providing full control over I/O pins, triggers, and image capture.
The included OV7725 sensor captures 640×480 grayscale (8-bit) or RGB565 (16-bit) images at up to 60 FPS above 320×240 resolution, and 120 FPS below. The H7 features removable camera modules, allowing you to swap in Global Shutter or FLIR Lepton sensors for advanced computer vision applications.
Key Features
- Processor – STM32H7 ARM Cortex-M7
- Image Sensor – OV7725 (removable module)
- Resolution – Up to 640×480 (grayscale or RGB565)
- Frame Rate – 60 FPS at 320×240+, 120 FPS below 320×240
- Programming – MicroPython (via OpenMV IDE)
- Camera Modules – Removable, supports Global Shutter and FLIR Lepton
- I/O – Full GPIO control from Python
Supported Vision Algorithms
- Frame differencing and motion detection
- Face detection and eye tracking
- Marker and shape detection
- QR code detection and decoding
- Colour tracking and blob detection
Ideal For
- Embedded machine vision prototyping
- Robotics with visual feedback
- QR code and barcode scanning
- Thermal imaging (with FLIR Lepton module)
Package Contents

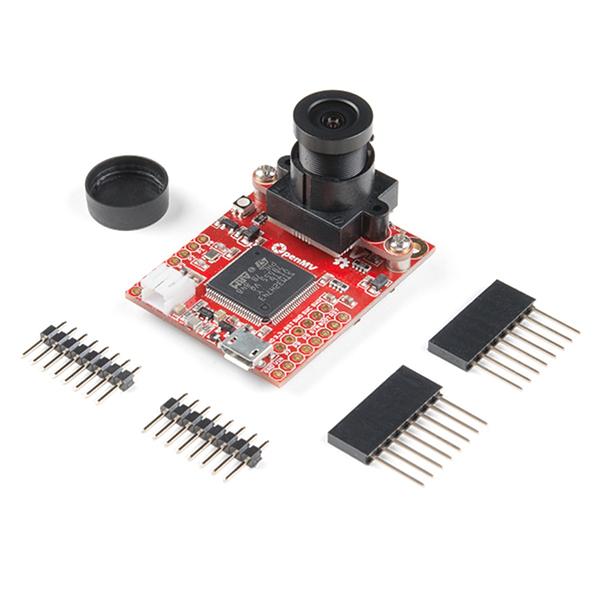

- 1× OpenMV H7 camera board with OV7725 sensor module
