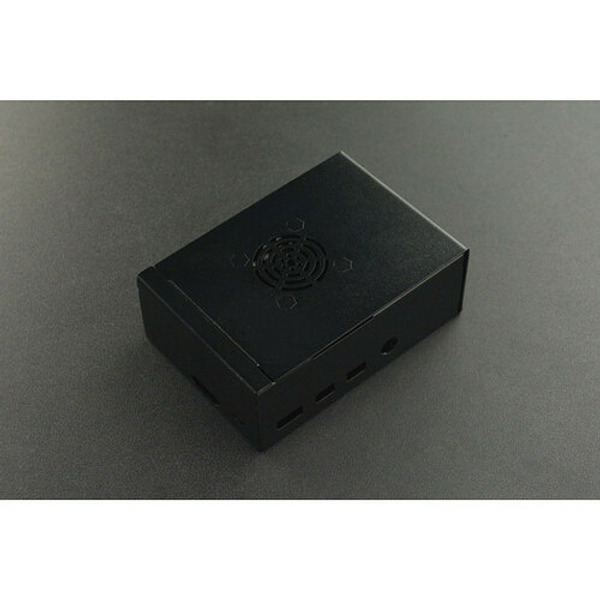

Metal Case with Heatsink & Fan for Raspberry Pi 4 Model B

48 units will be available shortly.

Express post shipping available (product is on backorder)
Get the most out of your Raspberry Pi 4B with this high-quality aluminum case!Designed for Raspberry Pi 4 Model B, these cases are lightweight, durable and strong. Besides, the product offers a high heat conductivity and excellent corrosion resistance, which is able to better protect your Raspberry Pi board. The anodizing process performed on the surface of the metal greatly improves the quality of the case visually and tactually. All ports and slots of the case can match with Raspberry Pi 4 Model B perfectly. Meanwhile, there are mounting holes on the bottom designed for conveniently fixing the device on the wall.

Ports and Slots of the CaseFour cooling fan holes and heat vent are reserved on the case, so users can install one fan inside the case to provide better heat dissipation for your board.
Note: Raspberry Pi 4 Model B board is not included.

Product Dimension

Specification

  •  Compatible with Raspberry Pi 4B 1G/Raspberry Pi 4B 2G/Raspberry Pi 4B 4G

  • Voltage range of fan: 5~12V

  •  Material: aluminium alloy

  •  Dimension: 90×60×30mm/3.54×2.63×1.18”


Documents
 Installation Steps
Shipping List

  •  Metal Case For Raspberry Pi 4 Model B x1

  •  Fan (30mm*30mm) x1

  •  Aluminum Heatsink x3

  •  Screw Pack x1

The Metal Case with Heatsink & Fan for Raspberry Pi 4 Model B appears in the following collections:

SKU DF-FIT0646
