Makeblock XY-Plotter Robot Kit (No Electronics)

$409.62

Part Number:  DF-KIT0055
Brand:  DFRobot Australia

Introduction This kit can be used to build a XY-Plotter. You can use the XY-Plotter to build a lot of interesting applications such as a drawing robot. It works very well, precise and stable.   Features Strong aluminum extrusion parts, anodizing surface Two Metal stepper motor with back shaft 12V Solenoid include Closed type bushing block and ball bushing insert for use in linear motion applications Four-bolt...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

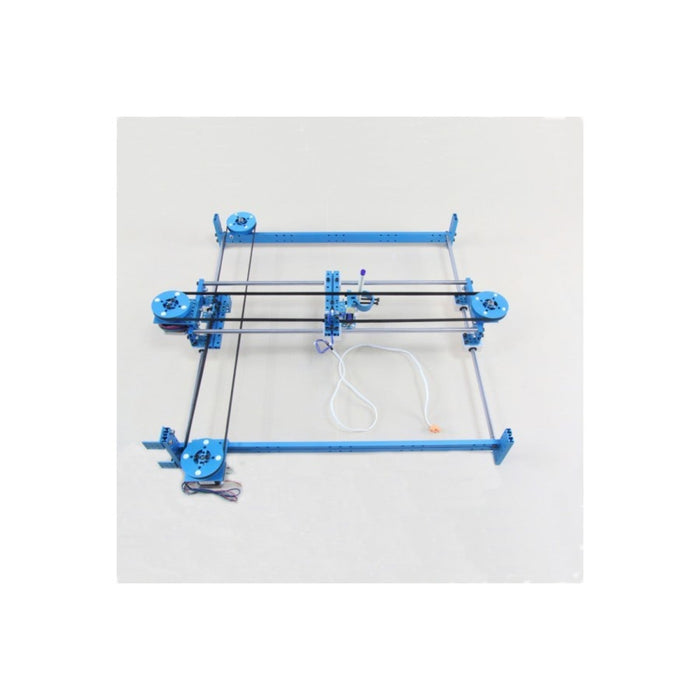

Introduction This kit can be used to build a XY-Plotter. You can use the XY-Plotter to build a lot of interesting applications such as a drawing robot. It works very well, precise and stable.


Features
  • Strong aluminum extrusion parts, anodizing surface
  • Two Metal stepper motor with back shaft
  • 12V Solenoid include
  • Closed type bushing block and ball bushing insert for use in linear motion applications
  • Four-bolt aluminum alloy bushing block for a lightweight ready-to-mount installation
  • Synthetic resin retainer plate for accurate ball guidance and low noise
  • Four rows of recirculating balls inside the ball bushing for smooth running
  • Integral lip seals to retain lubricant and protect against contamination
  • Round steel shaft for use with slide units in linear motion applications.
  • Chrome plated for corrosion resistance
  • Case hardened for wear resistance
  • Precision ground for consistent ball bushing radial clearance

Note:



With this kit, you can only build a XY-Plotter without controller. You can use your own electronic parts to drive this. We also offer a kit with electronic parts here, you may save about 30$ of the electronic parts with this kit.

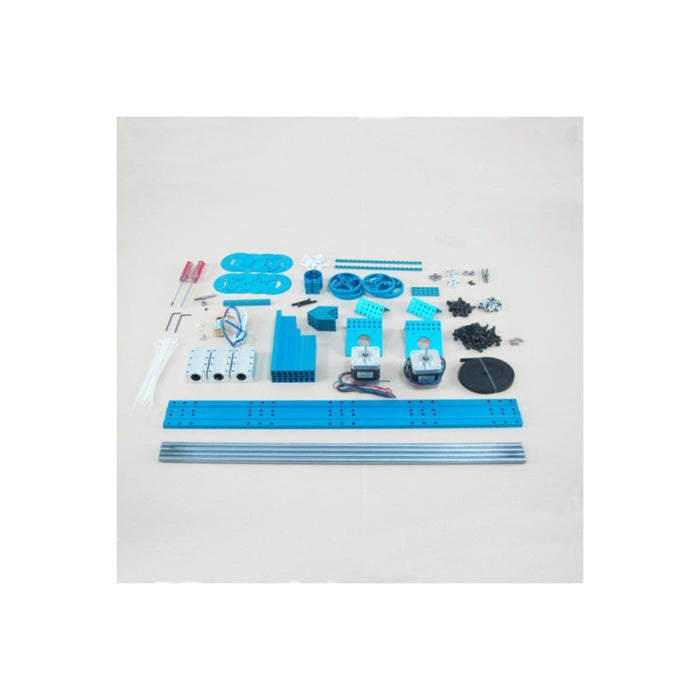

Kit Includes:



4 × Linear Motion Shaft D8×480 2 x Stepper Motor 30 × Plastic Rivet 4120
6 × Linear Motion Slide Unit 8mm 2 × Stepper Motor Bracket 25 × Plastic Ring 4x7x2mm
1 × Solenoid-12V 4 × Timing Pulley 90T 10 × Plastic Ring 4x8x1mm
2 × Beam 0824-496 8 × Timing Pulley Slice 90T 35 × Screw M4×8
1 × Beam 0824-144 1 × Open-end Timing Belt (3m) 60 × Screw M4×14
3 × Beam 0824-128 3 × Link Rod 2 × Srew M4×30
1 × Beam 0824-96 2 × Shaft Connector-4 40 × Nylong Lock Nut M4
3 × Beam 0824-80 3 × Threaded Shaft 4×31mm 20 × Nut M4
1 × Beam 0808-80 3 × Shaft Collar 4mm 15 × Nylon Cable Ties
1 × General Bracket 4 × Flange Bearing 4x8x3mm 1 × Cross Screwdriver
2 × Bracket 3x6 8 × Headless Set Screw M3x5 1 × Screwdriver 3mm
14 × Bracket 3×3 15 × Countersunk Screw M3x8 2 × Screwdriver 1.5mm
2 × Plate 3×6
