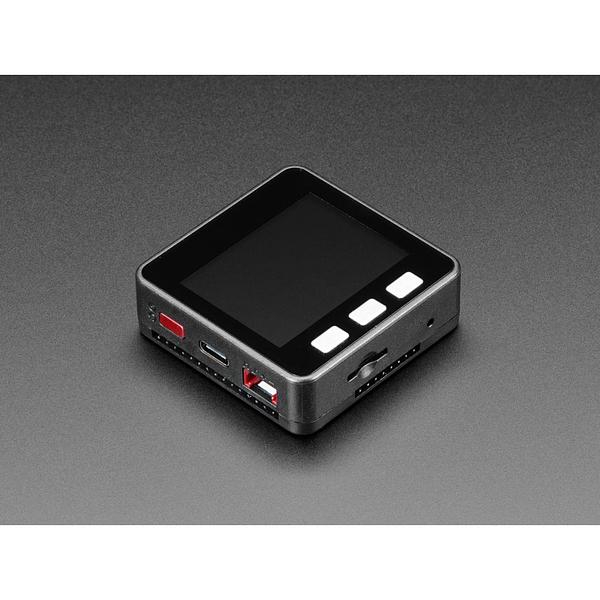

M5Stack Basic Core IoT Development Kit - ESP32 Dev Board

6 units will be available shortly.

Express post shipping available (product is on backorder)
Get yourself a kit that can do it all! The M5Stack Basic Development Kit is a ESP32-based WiFi microcontroller that's compatible with MicroPython and Arduino. It comes jam-packed with Wi-Fi / Bluetooth capability, running at 240 MHz with the dual-core processor and 4MB of SPI Flash.
Perfect for people who want to make advanced ESP32 projects with a display, user interface, speaker, and a couple buttons. It's super easy to snap in other M5 blocks to add sensors, interfaces or cameras, no soldering required. Upload your code with the built in USB C port, there's example code available on the M5Stack website.
The Black M5 Core comes with:
  • ESP32 module, with WiFi / Bluetooth capability
  • 4MB of FLASH
  • Micro-SD Card slot
  • USB to Serial converter built in
  • 320x240 2.0" TFT display
  • 3 User Buttons + 1 Reset Button
  • Small 1W speaker
  • 150mAh LiPo battery
  • Grove/I2C connector
  • M5 stacking GPIO connector
Kit includes:
  • Black M5 Core
  • Bottom panel
  • 10 x Female/Male Jumper wires
  • USB Type C Cable

The M5Stack Basic Core IoT Development Kit - ESP32 Dev Board appears in the following collections:

SKU AF-4178
