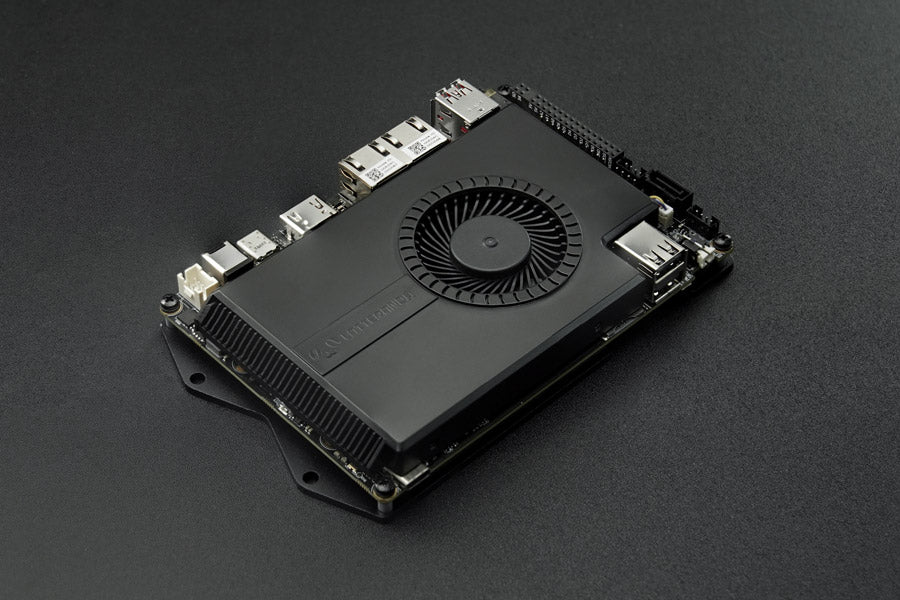

LattePanda Sigma - The Small Hackable x86 Windows/Linux Single Board Computer Server (16GB RAM)
136 units will be available shortly.
Comparison Tables
| SKU | Model | Processor | Memory | Storage | Wireless
| DFR1080 | LattePanda Sigma | Intel Core i5-1340P | 16GB LPDDR5- 6400 | / | /
| DFR1081 | LattePanda Sigma (with 500GB SSD and WiFi 6E Module) | 500GB WD SN770 PCIe 4.0 x4 SSD | Intel AX211 WiFi 6E Module
Features
Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.
Lightning-fast Memory: The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance.
High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma supports multiple display outputs with high resolutions and refresh rates.
Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.
User-friendly Interface Layout: plug and play with ease
Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.
Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems
Applications
Specification
Processor
CPU: Intel® Core™ i5-1340P
Cores / Threads: 12C(4P+8E) / 16T
Max Turbo Frequency: 4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)
L2 Cache: 12 MB
Base Power: 28 W
Graphics: Intel® Iris® Xe Graphics
Max Dynamic Frequency: 1.45 GHz
Execution Units: 80
Co-processor: Microchip® ATmega32U4-MU
Memory
Technology: Dual-Channel LPDDR5-6400
Capacity: 16GB
Storage
Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive
Wireless
Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)
Display
HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60Hz
USB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)
Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz
External I/O
USB Type-A: 2 x USB2.0 (480Mbps)
2 x USB3.2 Gen 2 (10Gbps)
2 x USB3.2 Gen 2 (10Gbps)
USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)
HDMI: HDMI 2.1
Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)
Power: 5.5mm x 2.5mm DC Jack
Audio: 3.5mm Microphone Headphone Combo Connector
Sim Card: Micro Sim Card Slot
Internal I/O
USB 2.0: 2.0mm Pitch 4-Pin Connector, 480Mbps
Fan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control
SATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector
Front Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED
Front Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in
COM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485
GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins
eDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes
Expansion Slot
M.2 M Key: Type 2280, Supports PCIe 3.0 x4
Type 2280, Supports PCIe 4.0 x4
Type 2280, Supports PCIe 4.0 x4
M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM
M.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio
Security
TPM: Built-in TPM (2.0)
Power
Power Input: 5.5mm x 2.1mm DC Jack: DC 12~20V
USB Type C: PD 20V
USB Type C: PD 20V
Power Adapter: 19V DC, 4.74A, 90W
RTC Battery: CR1220 Battery Holder: 3V
1.27mm Pitch 2-Pin Connector: 3V
1.27mm Pitch 2-Pin Connector: 3V
Operating System
Microsoft Windows: Windows 10, Windows 11
Linux: Ubuntu 22.04
Environment
Operating Temperature: 0~45°C
Relative Humidity: 0%~80%
Dimension
Form Factor: 3.5", 146 x 102 mm
Documents
Documentation
Tutorials
Download
Shipping List
LattePanda Sigma x1
Active Cooling Fan (Assembled) x1
Metal Protective Bottom Plate x1
Thermal Pads for M.2 SSD x2
Power Adapter with DC cable x1
AC Cable(EU & US & UK) for power adapter x3
RTC Battery (Assembled) x 1
User Manual x 1
