This product is no longer available
We no longer stock Infrared Thermometer Module, but here are current alternatives in Infrared & Thermal Sensors.

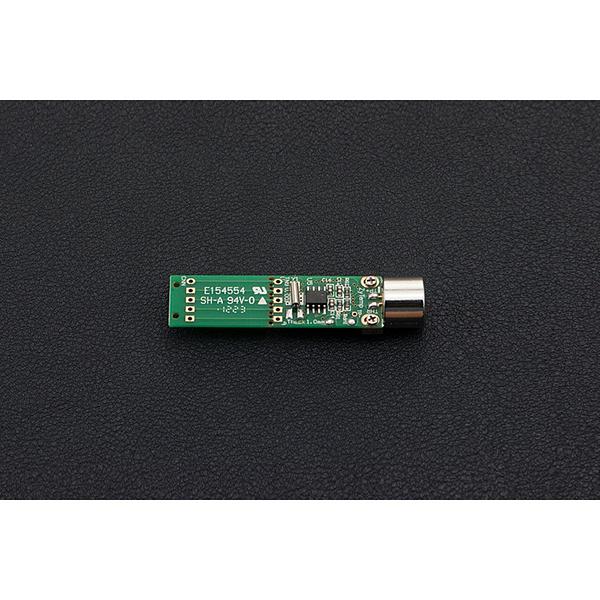

Infrared Thermometer Module
Discontinued
The TNm infrared thermometer module is is a long distance thermometer specially designed for a high sensitivity, high accuracy,low noise and low power consumption. MEMS thermopile detector and a high accurate ambient temperature compensation technique are used for the TNm infrared thermometer module.
SPECIFICATIONS
- Operating Voltage: 3V or 5V
- Measurement Range: -33~220°C / -27~428°F
- Operating Range: -10~50°C / 14~122°F
- Accuracy Tobj=15~35°C, Tamb=25°C : +/-0.6°C
- Full Range Accuracy #AC: +/-2%, 2°C
- Resolution: 1/16°C=0.0625 (full range)
- Size: 12x13.7x35mm(0.47x0.54x1.38")
- Weight:9g
DOCUMENTS
SHIPPING LIST
- Infrared thermometer module x1
