Infrared Non-contact Thermometer (Qwiic) - MLX90632

The MLX90632 is a compact infrared non-contact temperature sensor in an SMD package, capable of measuring object surface temperature remotely with ±1 °C accuracy. Point the sensor at a target and read its temperature via I2C — no physical contact required.

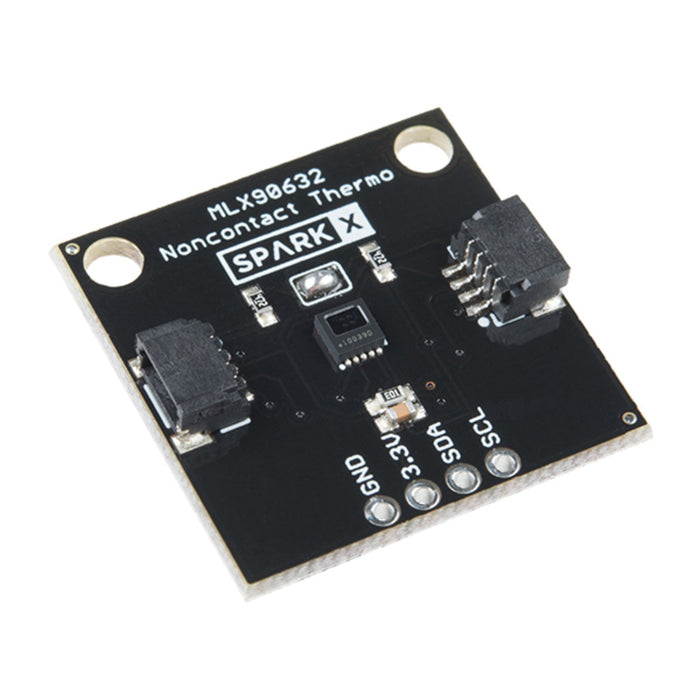

This SparkX carrier board breaks out the MLX90632 with two Qwiic connectors for fast I2C daisy-chaining, plus jumpers to control the I2C address and remove pull-up resistors as needed.

Key Features

• Non-Contact IR Measurement – Remotely measure object surface temperature
• 0.02 °C Resolution – Over the −20 °C to +85 °C range
• 50° Field of View – Wide sensing angle
• Low Power – 1 mA supply current
• 2× Qwiic Connectors – Quick I2C connection, no soldering required
• I2C Address Jumper – Configurable address for multi-sensor setups
• Compact SMD Package – Much smaller than traditional IR thermometer modules

Specifications

• Sensor: Melexis MLX90632
• Accuracy: ±1 °C
• Resolution: 0.02 °C
• Measurement Range: −20 °C to +85 °C
• Field of View: 50°
• Interface: I2C (Qwiic)
• Supply Current: 1 mA
• Read Rate: 0.5 s per measurement (default)

Ideal For

• Non-contact temperature measurement
• Wearable health monitoring
• HVAC and appliance temperature sensing
• Industrial process monitoring

Package Contents

• 1× MLX90632 Infrared Thermometer Qwiic Breakout
