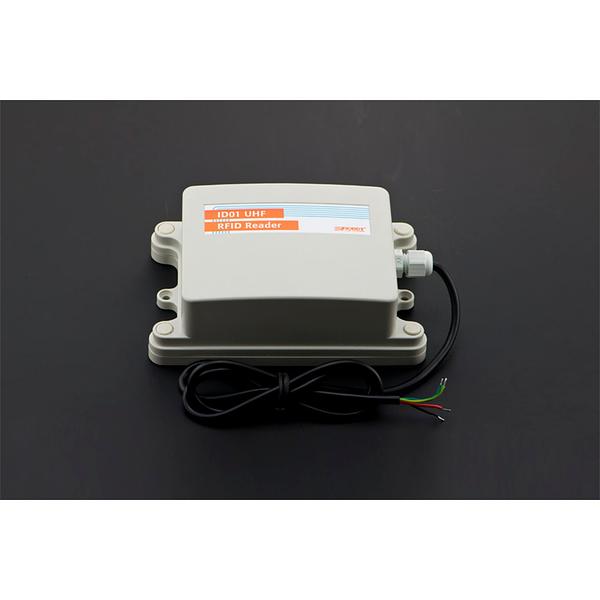

ID01 UHF RFID MODULE-UART

$250.00

Part Number:  DF-TEL0082
Brand:  DFRobot Australia

Introduction UHF RFID MODULE-UART,this RFID tag reader is a remote read-write module of IC card using non-contact UHF technology . It can widely use in the field of vehicle monitoring, remote control, home alarm system, wireless meter reading, access control system, industrial data acquisition system, the wireless tag, identification, non-contact RF card, small wireless data terminals, fire-proof systems, wireless remote control system, biological signal acquisition,...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Introduction
UHF RFID MODULE-UART,this RFID tag reader is a remote read-write module of IC card using non-contact UHF technology . It can widely use in the field of vehicle monitoring, remote control, home alarm system, wireless meter reading, access control system, industrial data acquisition system, the wireless tag, identification, non-contact RF card, small wireless data terminals, fire-proof systems, wireless remote control system, biological signal acquisition, hydrological and meteorological monitoring, robot control, etc. .
Specification
  • Interface:UART
  • Max Working current:200mA
  • Max Output Power: 24dBm
  • Effective Range : >30cm  (affect with antenna ,tag and environment)
  • Sensitivity:-102dBm , at least -98dBm
  • Support Baud Rate:9600、19200、38400、57600、115200(kbps)
  • Support Protocol:ISO18000-6C(EPC G2)
  • Response time:read: less than 10ms per 8 bytes,write: less than 20ms per byte
  • Environment temperature:-20℃~+65℃
  • Size:155mm*100mm
Specification
  • Interface:UART
  • Max Working current:200mA
  • Max Output Power: 24dBm
  • Effective Range : >30cm  (affect with antenna ,tag and environment)
  • Sensitivity:-102dBm , at least -98dBm
  • Support Baud Rate:9600、19200、38400、57600、115200(kbps)
  • Support Protocol:ISO18000-6C(EPC G2)
  • Response time:read: less than 10ms per 8 bytes,write: less than 20ms per byte
  • Environment temperature:-20℃~+65℃
  • Size:155mm*100mm
