GNSS All-Band High Precision Antenna - 5m (SMA) - SparkFun Electronics
· MPN: GPS-27500
The u-blox ANN-MB2 is a high-precision multi-band active GNSS antenna designed for centimeter-level positioning accuracy. Supporting L1/L2/L5/E6/B3 frequency...

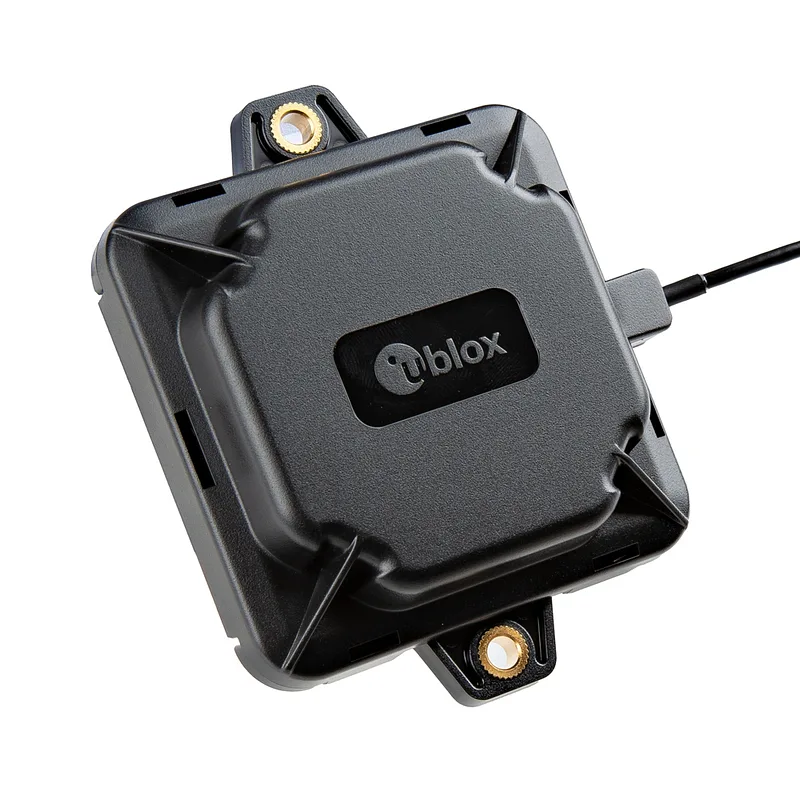

The u-blox ANN-MB2 is a high-precision multi-band active GNSS antenna designed for centimeter-level positioning accuracy. Supporting L1/L2/L5/E6/B3 frequency bands across multiple satellite constellations, this antenna is ideal for demanding precision applications like RTK surveying, autonomous vehicles, and drone navigation.
The 5-metre cable with SMA connector provides flexibility in antenna placement, allowing optimal sky visibility for the best possible fix.
Key Features
- Multi-Band Support – L1, L2, L5, E6, B3 frequencies
- Multi-Constellation – GPS, GLONASS, Galileo, BeiDou compatible
- Centimeter Accuracy – Designed for RTK/high-precision applications
- 5m Cable – Flexible antenna placement
- SMA Connector – Standard interface for GNSS receivers
- Active Antenna – Built-in LNA for improved signal reception
Ideal For
- RTK surveying and mapping
- Autonomous vehicles and drones
- Precision agriculture
- High-accuracy positioning systems
- Reference station setups
Specifications
- Model: u-blox ANN-MB2
- Frequency Bands: L1, L2, L5, E6, B3
- Cable Length: 5 metres
- Connector: SMA male
- Type: Active (with LNA)
Package Contents
- 1× GNSS All-Band High Precision Antenna (5m, SMA)
Jargon buster
Plain-language definitions for the technical terms used above.
- Active GNSS antenna
- An active GNSS antenna has a built-in amplifier that needs power from the board. It can improve satellite signal reception, but you need to use an antenna that matches the board’s powered antenna connection.
- Galileo
- Europe’s satellite navigation system. Galileo support can improve satellite availability and accuracy, especially when combined with GPS and other constellations.
- GLONASS
- Russia’s satellite navigation system. A receiver that can also use GLONASS has more satellites to choose from, which can improve positioning reliability when the sky view is partly blocked.
- GNSS
- GNSS stands for Global Navigation Satellite System, covering positioning systems such as GPS and similar satellite networks. It matters here because high-precision GNSS modules can output lots of serial position data that this product can send wirelessly to a computer or phone.
- GPS
- The US satellite navigation system used by GNSS receivers to calculate position and time. Support for GPS is important because it is widely available and often used together with other constellations for more reliable positioning.
- L5
- A modern GNSS signal band used by several satellite systems for more accurate and robust positioning. Dual-band receivers that include L5 can often perform better than single-band receivers, especially for RTK and areas with reflected signals.
- RTK
- Real-Time Kinematic positioning is a GNSS technique that uses correction data from a base station to greatly improve location accuracy. It matters if you need centimetre-level positioning for robotics, mapping, surveying, or tracking rather than ordinary metre-level GPS accuracy.
- SMA
- A threaded coaxial connector commonly used for antennas. It matters because you need antennas with matching SMA connectors, or suitable adapters, for the LTE and GNSS antenna ports.
