Expansion Shield x400 for Raspberry Pi B+/2B/3B

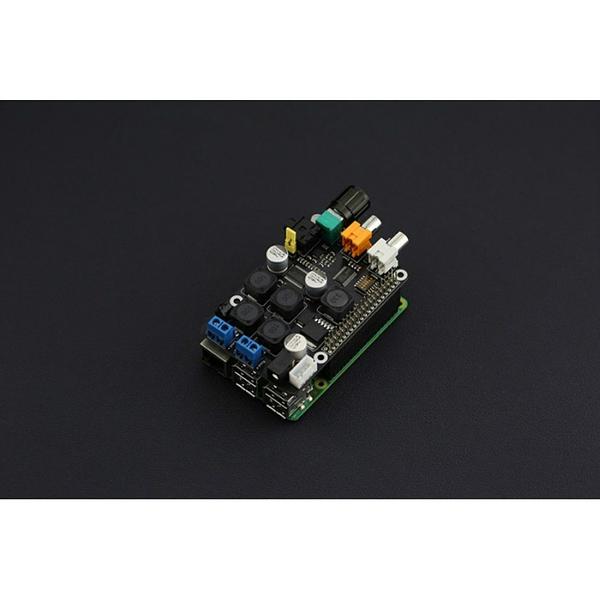

The X400 Expansion Shield is a highly cost-effective audio hat which fits on the GPIO of the Raspberry Pi Model B+, Raspberry Pi 2 Model B and Raspberry Pi 3 Model B. It uses i2S interface audio solution and supports 24-bit /192KHz high quality sound. It is compatible with other audio equipment via RCA lotus socket. It includes a built-in high fidelity headphone amplifier, where you can plug in a 3.5mm audio jack directly. The shield has two digital amplifier output ports, up to 2 x30w speakers can be directly connected. Use this hat to make your Raspberry Pi in to a lossless audio player or a network radio. We recommend using an OS image such as Volumio, RuneAudio, PiMusicBox etc.

Note: Raspberry Pi is not included in the box.


  • Input Voltage
    • 6V to 24V DC converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi
  • Audio
    • Full-HD audio
    • up to 24-bit/192kHz playback
    • Class leading audio; 112db SNR, and THD of 0.0019%
    • Audiophile TI Burr Brown 32-bit/384kHz DAC (TI PCM5122)
    • Uses the digital I2S audio signals to reduce CPU load over USB audio solutions
    • Integrated hardware volume control - Mute can be enabled / disabled via jumper
    • Built in High quality audio headphone amplifier (TI TPA6133A)
    • Earphone AMP can be enabled / disabled via jumper
    • Built in high quality Class-D stereo audio amplifier (TI TPA3118D2)
    • Up to 2 x 20W into 4 ohm
    • AMP can be enabled/disabled via jumper
    • Phono/RCA connectors
    • 3.5mm stereo audio jack
    • Speaker terminals
  • Wireless
    • Built in IR sensor (38KHz)
  • Misc
    • Power output socket
    • DIP switch to remove connection from RPi's pin header
    • Directly connected on top of the Raspberry Pi using the board GPIO header pins
    • No wiring or soldering is required
    • Pin mappings identical to 40-pin header of the R-Pi in order to support existing expansion boards
    • Suitable for Raspberry Pi Model B+, 2 Model B and 3 Model B
  • Dimensions
    • 85 x 56mm (Same footprint as Raspberry Pi)



  • X400 Expansion Board x1
  • Nylon Spacers (M3 x 20mm) x4
  • Nylon Screws (M3 x 6mm) x8
  • Jumper Wires x2
