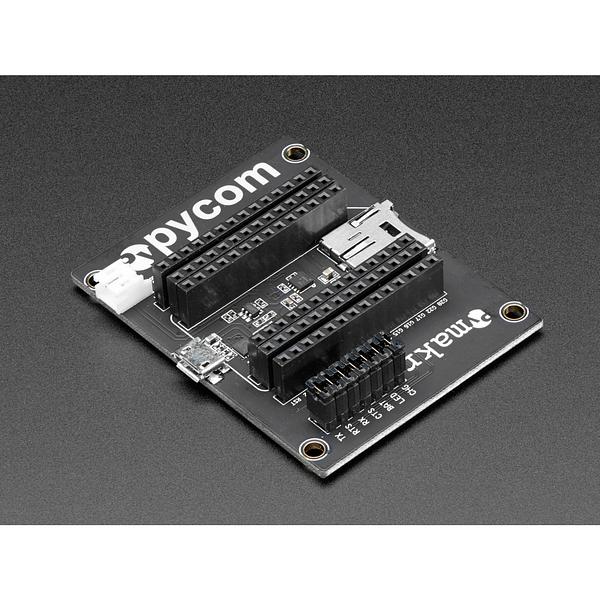

Expansion Board for WiPy IOT Development Platform

This WiPy compatible Expansion Board brings additional functionality to your IoT project. Simply insert the WiPy into the headers and enjoy all the extra features!

Not for use with LoPy / WiPy 2.0, for WiPy 1.0! Click here for the 2.0 version

Specifications:

  • USB and LiPo battery powering
  • FT234XD USB to serial converter
  • LiPo battery charger (BQ24040), with 2 different charging options (100mA and 450mA)
  • TPS2115A with reverse voltage protection
  • MicroSD card slot
  • 3 female headers to easily plug in the WiPy (WiPy 1.0 and WiPy 2.0) or the LoPy
  • JST style battery connector
  • Power LED and charge status LED
  • 1 user LED and 1 user switch
  • Battery voltage monitoring via the WiPy ADC
  • Lots of jumpers to enable/disable features

Please note, the WiPy is not included - this is just the expansion board!

The Expansion Board for WiPy IOT Development Platform appears in the following collections:

SKU AF-2960
