DSO Quad - Pocket Digital Oscilloscope (Black)

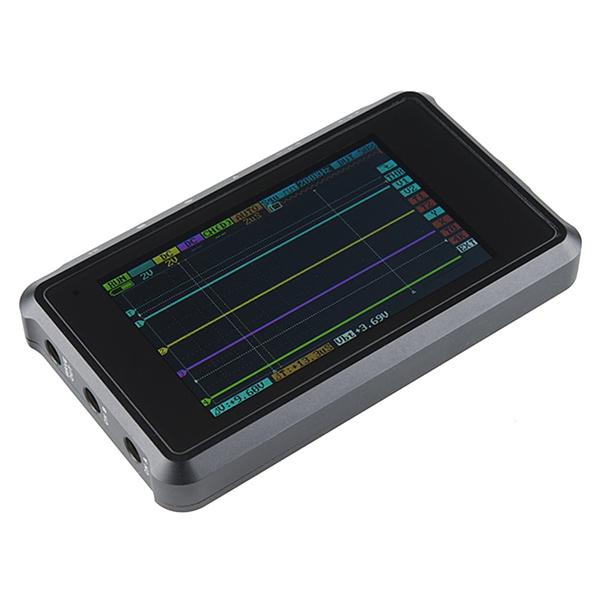

The Black DSO Quad is an open-source pocket-sized 4-channel digital oscilloscope. It’s based on the ARM cortex M3 32-bit platform, providing 72MS/s sampling rate with integrated FPGA and high speed ADC. The Internal 2MB memory can even store waveforms in various formats which you can transfer to your computer using a mini-USB cable.

Note: Check the link below for the most up-to-date firmware.

Note: This item may take longer to process due to battery installed in the equipment and therefore does not qualify for same-day shipping policy. Additionally, these batteries can not be shipped via Ground or Economy methods to Alaska or Hawaii. Sorry for any inconvenience this may cause.

Includes:

  • 2 Mueller MCX Osilloscope Probes
  • 2 Digital Probes
  • Li-Po Battery
  • User Manual

Features:

  • Portable (98x60x14.5mm)
  • Two 72MS/s analog channels plus two digital channels
  • 2MB Internal Storage
  • 3" TFT LCD (400x240)
  • 8-bit Vertical Resolution
  • Signal Generator
  • Auto Measurement
  • Various Triggering Options
  • Easy waveform storage
  • Firmware upgradable
  • User applications
  • Open source

Documents:

Replaces:TOL-10388

The DSO Quad - Pocket Digital Oscilloscope (Black) appears in the following collections:

SKU SF-TOL-12065
