DC-DC Buck Converter 6~14V to 5V/8A
This 40W high power DC-DC Buck converter offers a 6~14V input voltage range and up to 5V/8A output. Featuring a small body, high conversion ratio, strong hea...
Get notified when back in stock

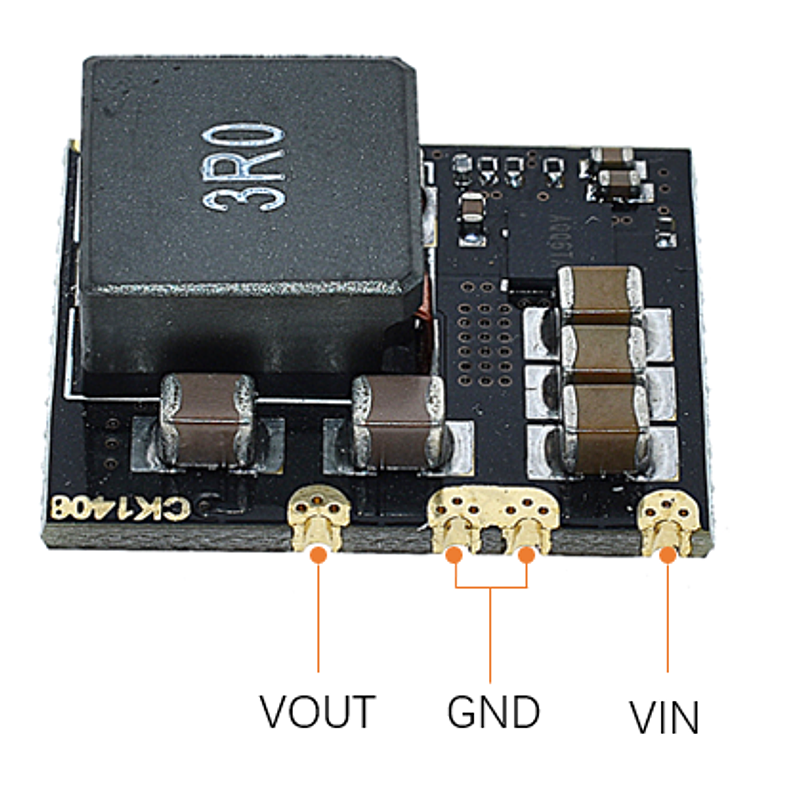

This 40W high power DC-DC Buck converter offers a 6~14V input voltage range and up to 5V/8A output. Featuring a small body, high conversion ratio, strong heat dissipation, and large current output, the module is compatible with all 5V main-boards, and can work as an SMD element to be directly soldered onto PCB. With steady output, this buck converter is able to work for a long time without voltage shift, which can be suitable for projects of high requirements like smart homes, small robot car power sources, etc.
FEATURES
- Small in size
- 40W high power output
- Over 96% conversion ratio
- Can be used as SMD component
SPECIFICATION
- Input Voltage Range: 6V-14V
- Output Voltage: 5V
- Output Current: 0-8A
- Voltage Accuracy: ±1%
- Full-load Output Ripple: ＜30mV
- Conversion Ratio: >96% (12V input, full-load output)
- Static Current: <200uA
- Operating Temperature: 0°C~70°C
Jargon buster
Plain-language definitions for the technical terms used above.
- Buck converter
- A power circuit that reduces a higher DC voltage to a lower DC voltage. It is useful when your supply voltage is too high for a module or microcontroller and you want less heat and better efficiency than a simple linear regulator.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
