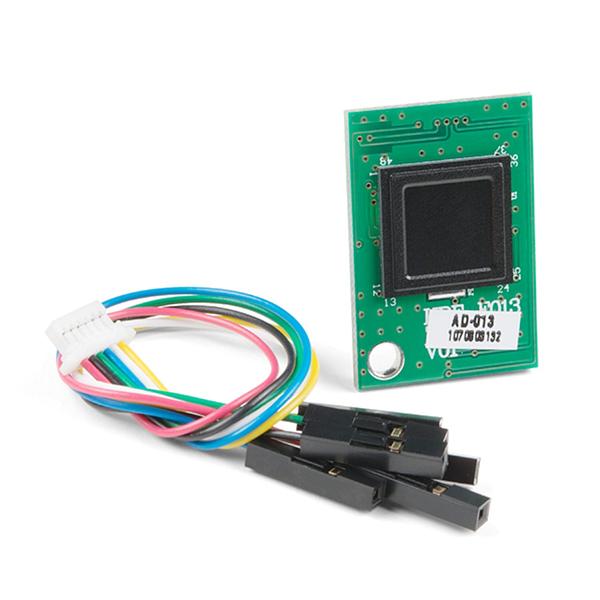

Capacitive Fingerprint Scanner - UART (AD-013)

The AD-013 Capacitive Fingerprint Scanner from ADH-Tech combines a fingerprint sensor and MCU in a single module with a simple UART interface. It reads fingerprint images at 508 dpi resolution using a capacitive pixel array, processing ridge and valley data through an on-board A/D converter and digital processor.

The built-in MCU handles fingerprint enrolment, matching, and template storage via serial commands — no external processing required. With recognition in under 0.6 seconds and capacity for up to 40 templates, it's ready for access control and authentication projects. Includes a 6-pin interface cable for easy hookup.

Key Features

• Capacitive Sensing – Pixel-array fingerprint imaging for reliable ridge detection
• On-Board MCU – Built-in fingerprint algorithm handles enrol, match, and storage operations
• UART Interface – Simple serial commands for all fingerprint operations
• Fast Recognition – Less than 0.6 seconds matching time
• 40 Template Capacity – Stores up to 40 high-quality fingerprint templates
• 508 dpi Resolution – High-quality fingerprint image capture
• Includes Interface Cable – 6-pin male hookup cable for easy assembly

Specifications

• Sensor Type – Capacitive
• Resolution – 508 dpi
• Recognition Time – <0.6 seconds
• Template Storage – Up to 40 templates
• Interface – UART
• Connector – 6-pin

Ideal For

• Access control and door lock systems
• Biometric authentication projects
• Attendance and time-tracking systems
• Security and identity verification prototypes

Package Contents

• 1× AD-013 Capacitive Fingerprint Scanner Module
• 1× 6-pin Interface Cable
