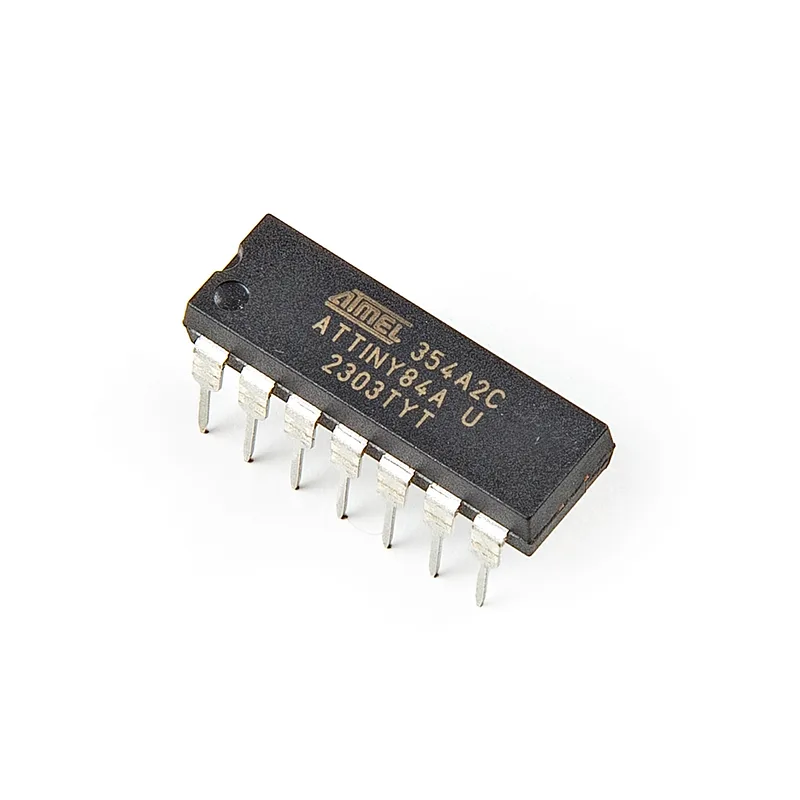

AVR® 14-Pin ATtiny Microcontroller IC - 8-Bit, 20MHz, 8KB (4K x 16) FLASH

Jargon buster

Plain-language definitions for the technical terms used above.

ADC

An analogue-to-digital converter reads a changing voltage and turns it into a number the microcontroller can use. It matters when connecting analogue sensors such as light, sound, or variable-resistor sensors.

AVR

AVR is a family of 8-bit microcontrollers (made by Microchip, formerly Atmel) used in many classic Arduino-style boards such as the Uno and Nano. They are widely supported but older, which can be a limit for memory- or speed-intensive tasks.

EEPROM

A type of non-volatile memory that keeps stored data even when power is turned off. In a sensor module, it can be used to store settings or calibration data so they do not need to be re-entered every time.

RAM

RAM (random-access memory) is fast, temporary memory a device uses for working data while it is running; in its common volatile form, its contents are lost when power is removed. Some devices offer a mode that applies settings to RAM only, which is handy for testing changes temporarily because they are not stored permanently and disappear at power-off.

VCC

VCC is the positive power-supply connection on a chip or module. Connecting it to the correct supply voltage is needed for the part to power on and helps avoid damaging the electronics.
