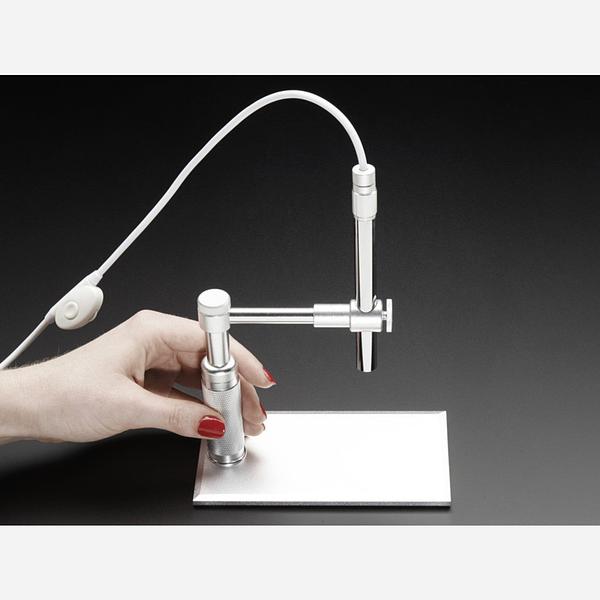

Aluminum USB Microscope with Precision Stand

$226.38

Part Number:  AF-1061
Brand:  Adafruit Australia

DescriptionAs electronics get smaller and smaller, you'll need a hand examining PCBs and this little USB microscope is the perfect tool. Its smaller and lighter than a large optical microscope but packs quite a bit of power in its little body. There's a high quality 640x480 camera sensor inside and an optical magnifier that can adjust from 20x (for basic PCB inspection) to 200x (for...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

As electronics get smaller and smaller, you'll need a hand examining PCBs and this little USB microscope is the perfect tool. Its smaller and lighter than a large optical microscope but packs quite a bit of power in its little body. There's a high quality 640x480 camera sensor inside and an optical magnifier that can adjust from 20x (for basic PCB inspection) to 200x (for detailed inspection). Eight mini white LEDs are angled right onto whatever you're examining so you get enough lighting to see, and are smoothly adjustable via a dial on the side.

If you plug this into any computer, it just shows up as a standard USB camera so you can use any theybcam software (there's some included software for Windows - for Mac they suggest just using QuickTime Player which comes with all Macs).

Adafruit tried a bunch of different USB microscopes and when you need a thin camera, with a precision stand, this one is the best combination of optical clarity, usability, and price. It's perfect for electronics hacking, rework, SMT (de)soldering, inspection, and soon you'll find yourself pulling it out to look and photograph all sort of cool small stuff around your lab and home. Its small size means you can poke inside of enclosures to get a good peek!

This microscope is faster than the other USB scope they carry, and its much better for soldering-while-magnifying as the video lag isn't as noticeable.

Package comes with a USB microscope with 4.5ft/140cm long cord, an adjustable metal stand, and CDROM with drivers/software.




Technical Details

  • Datasheet
  • DSP: Digital Image Monarch Processor
  • Sensor: high-quality CMOS sensor
  • Resolution: 640*480
  • Colors: true color 24bit (RGB)
  • Interface: USB2.0.
  • Frame rate: 30 frames/sec (CIF and VGA).
  • Magnification: 200×
  • Size: 12mm in diameter,
  • USB cable length: 1.6 meters

Here are the PC files that come on the CD - for Mac, please use Quicktime Player
