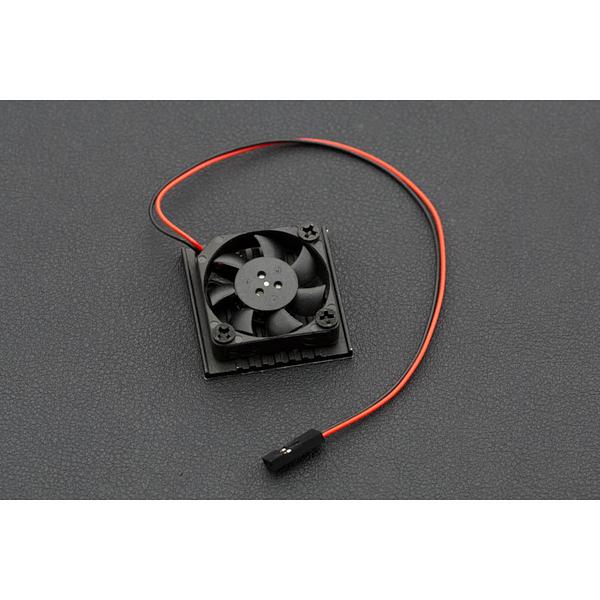

Aluminum Heatsink Cooling Fan for LattePanda
Discontinued
A low-profile aluminium heatsink with integrated cooling fan for the LattePanda single board computer. The aluminium casing rapidly absorbs CPU heat while the ultra-low-noise fan maintains stable operating temperatures. Connects directly to the CN2 header on the LattePanda board via a 2-pin DuPont connector.
Includes an adhesive thermal pad on the rear for easy attachment to the metal shield on the board.
Key Features
- Active + Passive Cooling – Aluminium heatsink with integrated low-noise fan
- Low Profile – Compact 10mm total height
- Easy Installation – Adhesive thermal pad and 2-pin DuPont connector for the CN2 header
- Ultra-Low Noise – Quiet operation for desktop and media centre use
Specifications
- Operating Voltage – 5V
- Operating Current – 0.14A
- Rated Speed – 7500 RPM
- Cable Length – 18cm
- Connector – 2.54mm 2-pin DuPont female
- Overall Dimensions – 35 × 35 × 10mm
- Fan Dimensions – 30 × 30 × 7mm
- Weight – 14g
Package Contents
- 1× Aluminium heatsink cooling fan
Note: Pay attention to wire polarities when connecting — Red is 5V, Black is GND.
