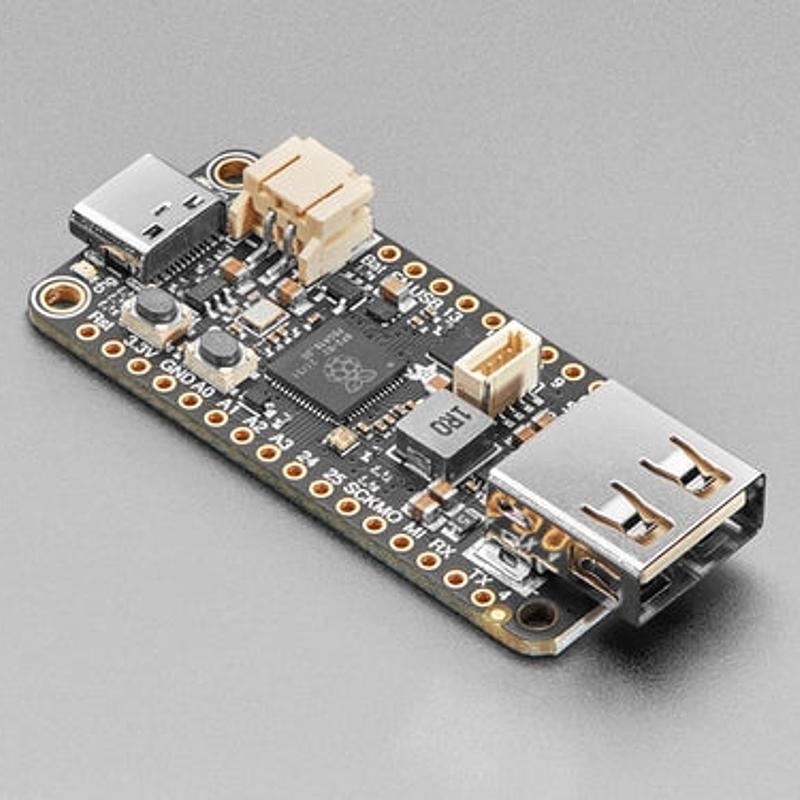

Adafruit Feather RP2040 with USB Type A Host

Jargon buster

Plain-language definitions for the technical terms used above.

ADC

An analogue-to-digital converter reads a changing voltage and turns it into a number the microcontroller can use. It matters when connecting analogue sensors such as light, sound, or variable-resistor sensors.

boost converter

A boost converter is a power circuit that raises a lower input voltage to a higher output voltage. It matters here because the board can power a sensor that needs a higher supply voltage while still using a single connector for power and data.

Bootloader

Small starter software on a microcontroller that lets new code be uploaded before the main program runs. Knowing how to enter bootloader mode matters when you need to program the board or recover it after a faulty sketch.

GPIO

General-purpose input/output pins are microcontroller pins you can set in software to read signals, switch devices on and off, or connect to peripherals. The number of GPIO pins matters because it limits how many buttons, LEDs, sensors, and other parts you can wire directly to the board.

HDMI

HDMI is a common digital video and audio connection used by computers, media players, and many displays. If a display kit has HDMI input, it is usually much easier to test with a single-board computer because it can act like a normal monitor.

HID

Human Interface Device is a USB device class used for keyboards, mice, gamepads and similar controls. If a board supports HID over USB, it can act like an input device to a computer without needing a custom driver.

I2C

I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.

LED

A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.

LiPo

A lithium polymer rechargeable battery commonly used in portable electronics projects. It matters because LiPo batteries need correct charging circuitry and care, and this board includes hardware intended for that battery type.

LoRa

LoRa is a long-range, low-power radio technology often used for telemetry and remote sensors. It matters here because the connector and pinout are compatible with some LoRa telemetry products, even though this module uses Bluetooth instead.

microSD card

A microSD card is a small removable memory card used to store files such as audio tracks. For this product, the card is where the sound files live, so its capacity and formatting can affect how many sounds you can use.

NeoPixel

A type of addressable LED system where colour data is sent along a single digital data line from one LED or controller to the next. Compatibility matters because the timing and signal format must match for the lights or driver board to respond correctly.

PWM

Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.

Qwiic

Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.

RGB

Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.

RP2040

A microcontroller chip used on many maker boards, with enough speed and flexible I/O for some camera and display projects. Compatibility with RP2040 matters because camera modules often need many pins and careful timing to read image data successfully.

SPI

A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.

SRAM

Fast temporary memory used by a processor while a program is running. More SRAM helps with projects that handle larger data buffers, networking, displays, or more complex code.

STEMMA QT

A small plug-in connector system for I2C boards that lets you connect compatible sensors and controllers without soldering. It matters because it can make wiring faster and less error-prone, especially when adding several small modules to a project.

TinyUSB

TinyUSB is an open-source USB software library used on many microcontroller boards. For a USB host product, library support is important because the hardware alone is not enough; your mainboard must have software that knows how to talk to the USB devices you want to use.

UART

UART is a simple serial connection that sends data over separate transmit and receive wires, often labelled TX and RX. It matters because this module is designed to replace a wired UART cable with a wireless link while keeping the same serial data format.

USB host

A USB host is the side of a USB connection that controls attached devices, like a computer talking to a keyboard or flash drive. This matters because most microcontroller boards are normally USB devices, so adding USB host support lets them use common USB peripherals.
