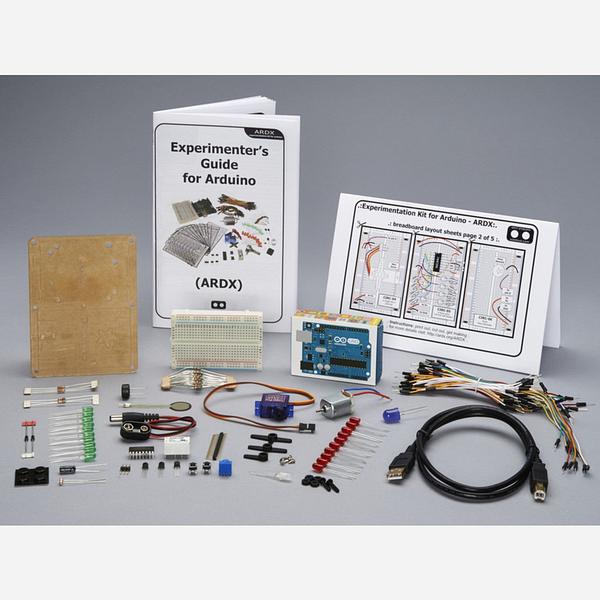

Adafruit ARDX - v1.3 Experimentation Kit for Arduino (Uno R3) [v1.3]

14 units will be available shortly.

Express post shipping available (product is on backorder)

Interested in making neat stuff with an Arduino-compatible board but not sure where to start? This kit includes all the pieces needed to complete over 20 different circuit and projects. Basically everything you need to be playing within minutes of its arrival. No soldering required, works with Mac, Windows and Linux!

New! As of March 28, 2018 we've done a big refresh on this kit, to add more stuff like a character LCD, Infrared remote and receiver, improved light sensor, and a full online learn guide with many more projects and tutorials! We've also updated it to use the Adafruit Metro 328.

This pack includes the Adafruit Metro. METRO is the culmination of years of playing with AVRs: we wanted to make a development board that is easy to use and is hacker friendly. At the heart is an ATmega328P, with 32KB of flash and 2KB of RAM, running at 16 MHz. It is fully compatible with the Arduino IDE (select "Arduino UNO" in the board-type menu)

  • Power the METRO with 7-9V polarity protected DC or the micro USB connector to any 5V USB source. The 2.1mm DC jack has an on/off switch next to it so you can turn off your setup easily. The METRO will automagically switch between USB and DC.
  • METRO has 19 GPIO pins, 6 of which are Analog in as well, and 2 of which are reserved for the USB-serial converter. There's also 6 PWMs available on 3 timers (1 x 16-bit, 2 x 8-bit). There's a hardware SPI port, hardware I2C port and hardware UART to USB. Logic level is 5V but by cutting and soldering closed a jumper, you can easily convert it to 3.3V logic
  • USB to Serial converter, there's a hardware USB to Serial converter that can be used by any computer to listen/send data to the METRO, and can also be used to launch and update code via the bootloader
  • Four indicator LEDs, on the front edge of the PCB, for easy debugging. One green power LED, two RX/TX LEDs for the UART, and a red LED connected to pin PB5
  • Easy reprogramming, comes pre-loaded with the Optiboot bootloader, which is supported by avrdude and only uses 512 bytes.
  • Fully compatible with the Arduino IDE (select "Arduino UNO" in the board-type menu)
  • Works with all Adafruit shields!

If you're an educator looking to order more of this product than we have in stock, please email educators@adafruit.com!

Features:

  • 20+ online circuits to explore microcontroller basics. Covering LEDs, transistors, motors, integrated circuits, pushbuttons, variable resistors, photo resistors, temperature sensors & relays.
  • Comes with an Adafruit Metro prototyping bundle to make constructing your circuits and future projects easy.

Includes:


The Adafruit ARDX - v1.3 Experimentation Kit for Arduino (Uno R3) [v1.3] appears in the following collections:

SKU AF-170
