5G Omni-Directional High Gain Antenna with SMA to IPEX-4 Connector
· MPN: 19297
This 5G omni-directional antenna provides 18dBi gain across a wide 600–6000MHz frequency range, covering 5G, 4G, 3G, and GNSS bands. The omni-directional rad...
Get notified when back in stock

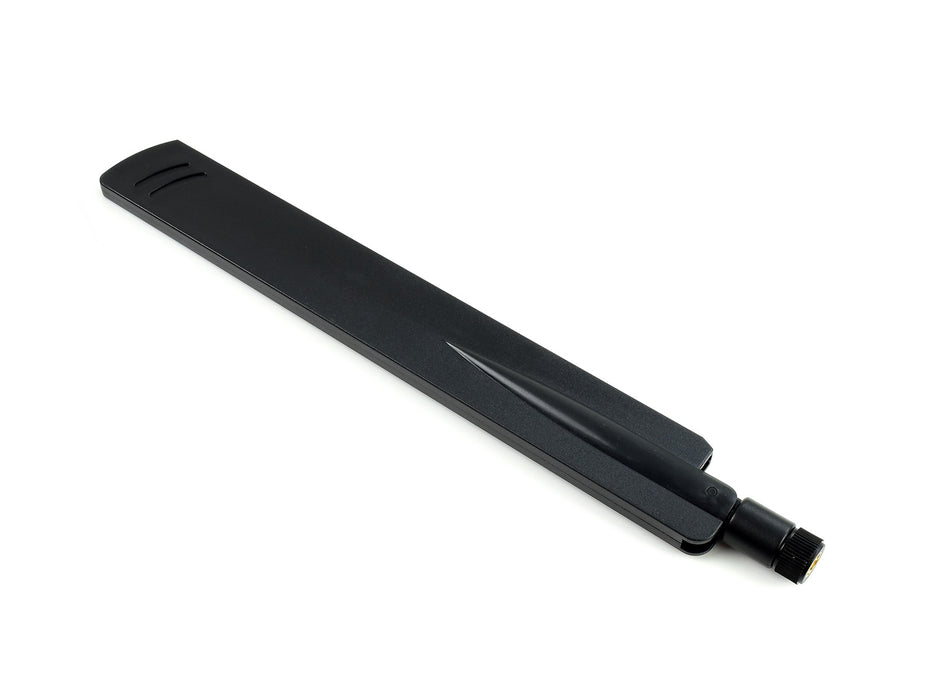

This 5G omni-directional antenna provides 18dBi gain across a wide 600–6000MHz frequency range, covering 5G, 4G, 3G, and GNSS bands. The omni-directional radiation pattern delivers consistent signal quality in all directions without needing to orient the antenna toward a specific tower.

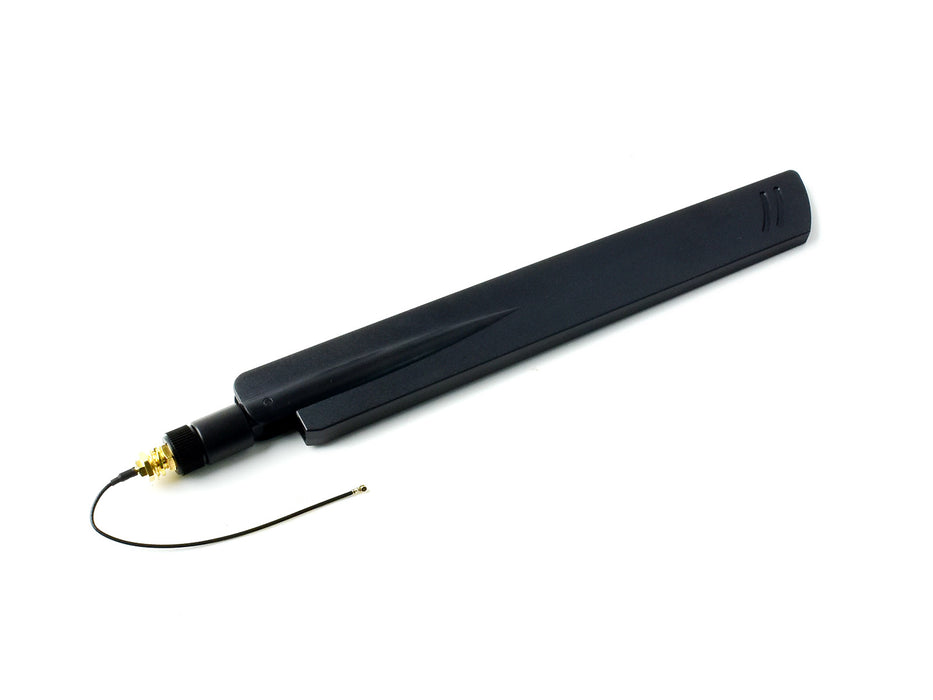

It connects via an SMA male connector (needle inside) with a flexible pigtail cable terminating in an IPEX-4 (MHF4) connector, making it compatible with modules like the SIM8202G-M2 5G module and Raspberry Pi 5G HATs that use IPEX-4 antenna ports.
Key Features
- 18dBi High Gain – Strong signal enhancement for improved range and reliability
- Wide Frequency Coverage – 600–6000MHz spans 5G, 4G, 3G, and GNSS bands
- Omni-Directional – Consistent reception in all directions, no alignment needed
- SMA to IPEX-4 Connector – Pigtail cable for direct connection to 5G modules
- Lightweight & Compact – 220 × 24mm, just 34g
- Durable ABS Construction – Operates from −20°C to +85°C
Specifications
- Network Support: 5G / 4G / 3G / GNSS
- Frequency Band: 600–6000MHz
- Gain: 18dBi
- Impedance: 50Ω
- SWR: < 3.0
- Polarisation: Linear
- Connector: SMA (male, needle inside) to IPEX-4
- Material: ABS
- Dimensions: 220 × 24mm
- Weight: 34g
- Operating Temperature: −20°C to +85°C
Compatibility
- SIM8202G-M2 5G Module
- Raspberry Pi 5G HAT
- Any device with an IPEX-4 (MHF4) antenna connector
Package Contents

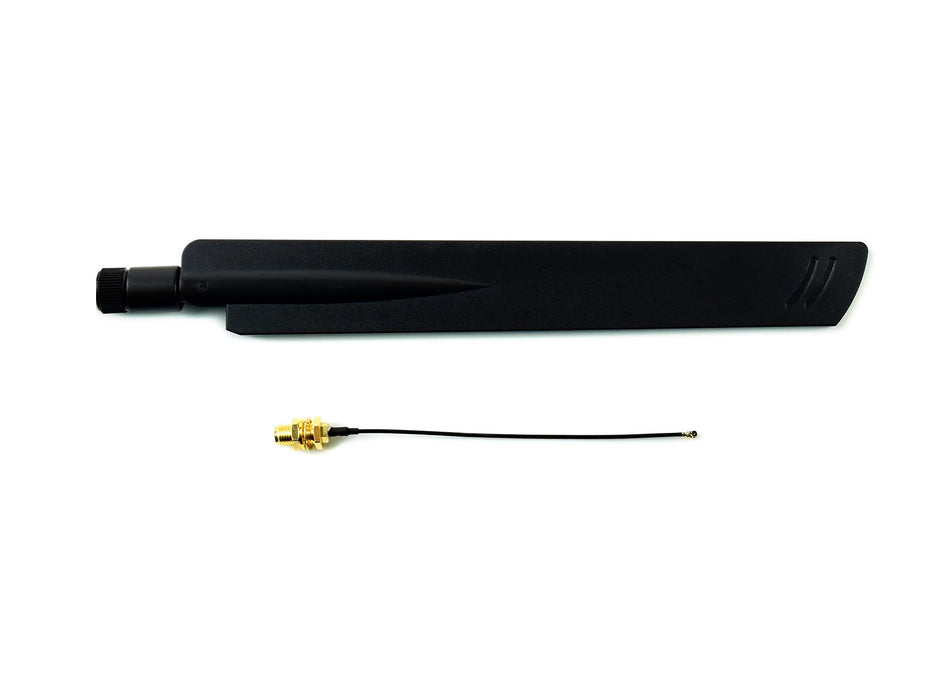

- 1× 5G/4G/3G/GNSS Omni-Directional Antenna with SMA to IPEX-4 pigtail
Jargon buster
Plain-language definitions for the technical terms used above.
- 5G
- 5G is the fifth-generation mobile network standard, offering higher-speed, lower-latency wireless data than earlier 4G/LTE networks. 5G modems can move large amounts of data over cellular networks but may draw significant current and need a suitable aerial and reliable power.
- GNSS
- GNSS stands for Global Navigation Satellite System, an umbrella term for satellite positioning networks such as GPS, GLONASS, Galileo and BeiDou. Receivers use these satellites to determine position, and high-precision units can output a steady stream of serial position data.
- Impedance
- Impedance is the total opposition a component or circuit presents to alternating current, measured in ohms, combining resistance with frequency-dependent reactance. It appears in many contexts, such as matching a speaker's impedance (for example 4 ohm or 8 ohm) to an amplifier or the input and output impedance of signal circuits, and a correct match helps avoid weak signals, distortion or damage.
- SMA
- SMA is a small threaded coaxial (RF) connector widely used to attach antennas and other radio-frequency cables. A device with SMA antenna ports needs antennas or pigtails with matching SMA connectors, or a suitable adapter, to connect to them.
