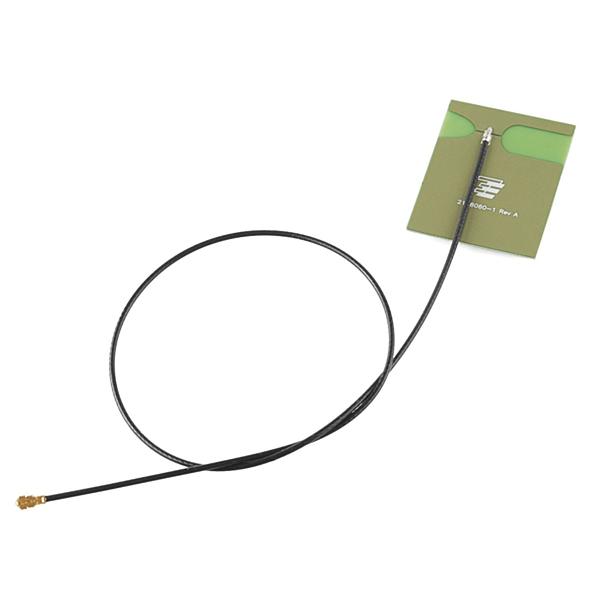

2.4GHz Antenna - Adhesive (U.FL Connector)

$8.62

Part Number:  SF-WRL-11320
Brand:  SparkFun Australia

This adhesive, omni-directional antenna is perfect for situations when you’re trying to get a signal out from a transmitter that you’ve jammed down into an enclosure. Operating on the 2.4GHz band, it works great for WiFi, Bluetooth or ZigBee. Just connect the antenna using the attached u.fl connector and then peel and stick! Dimensions: 41 x 30mm, 350mm cable Features: Type: Omni-Directional Dual Frequency Range:...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

This adhesive, omni-directional antenna is perfect for situations when you’re trying to get a signal out from a transmitter that you’ve jammed down into an enclosure. Operating on the 2.4GHz band, it works great for WiFi, Bluetooth or ZigBee. Just connect the antenna using the attached u.fl connector and then peel and stick!

Dimensions: 41 x 30mm, 350mm cable

Features:

  • Type: Omni-Directional
  • Dual Frequency Range: 2300 to 3800MHz & 5150 to 5875MHz
  • Impedance: 50 Ohm
  • Maximum VSWR: 3
  • Typical Gain: 2(Max) dB

Documents:
