10 Segment Light Bar Graph LED Display - Red

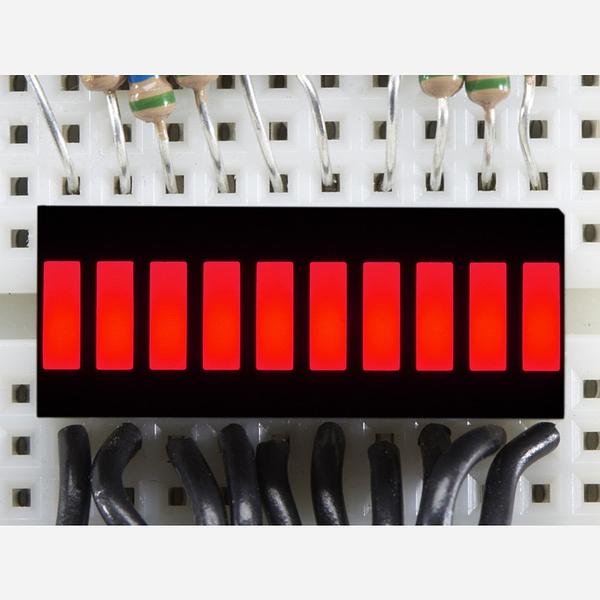

A 10-segment LED bar graph display in red. At just 1" (25mm) long, it's compact enough to plug directly into a breadboard while remaining clearly visible. The diffused rectangular lenses give a clean, even glow across all 10 segments.

Each of the 10 LEDs has its own anode and cathode across 20 pins (10 per side) at 0.1" spacing, so they can be individually controlled from a microcontroller, shift register, or LED driver IC. Each segment can also be treated as a standalone LED.

Key Features

• 10 Segments – Ten individual red LEDs in a single housing
• Diffused Rectangular Lenses – Even light output with a clean appearance
• Breadboard Friendly – 20 pins at 0.1" (2.54mm) spacing with room for wiring
• Compact 1" Package – Small enough for tight layouts, bright enough to see clearly
• Individual Control – Separate anode and cathode for each segment

Ideal For

• Audio level meters and VU displays
• Battery charge indicators
• Signal strength displays
• Arduino bar graph projects
• Status and progress indicators
